136 Condair CDA and CDA-S
10.7.9 Connecting the CDA-S to the Condair RH

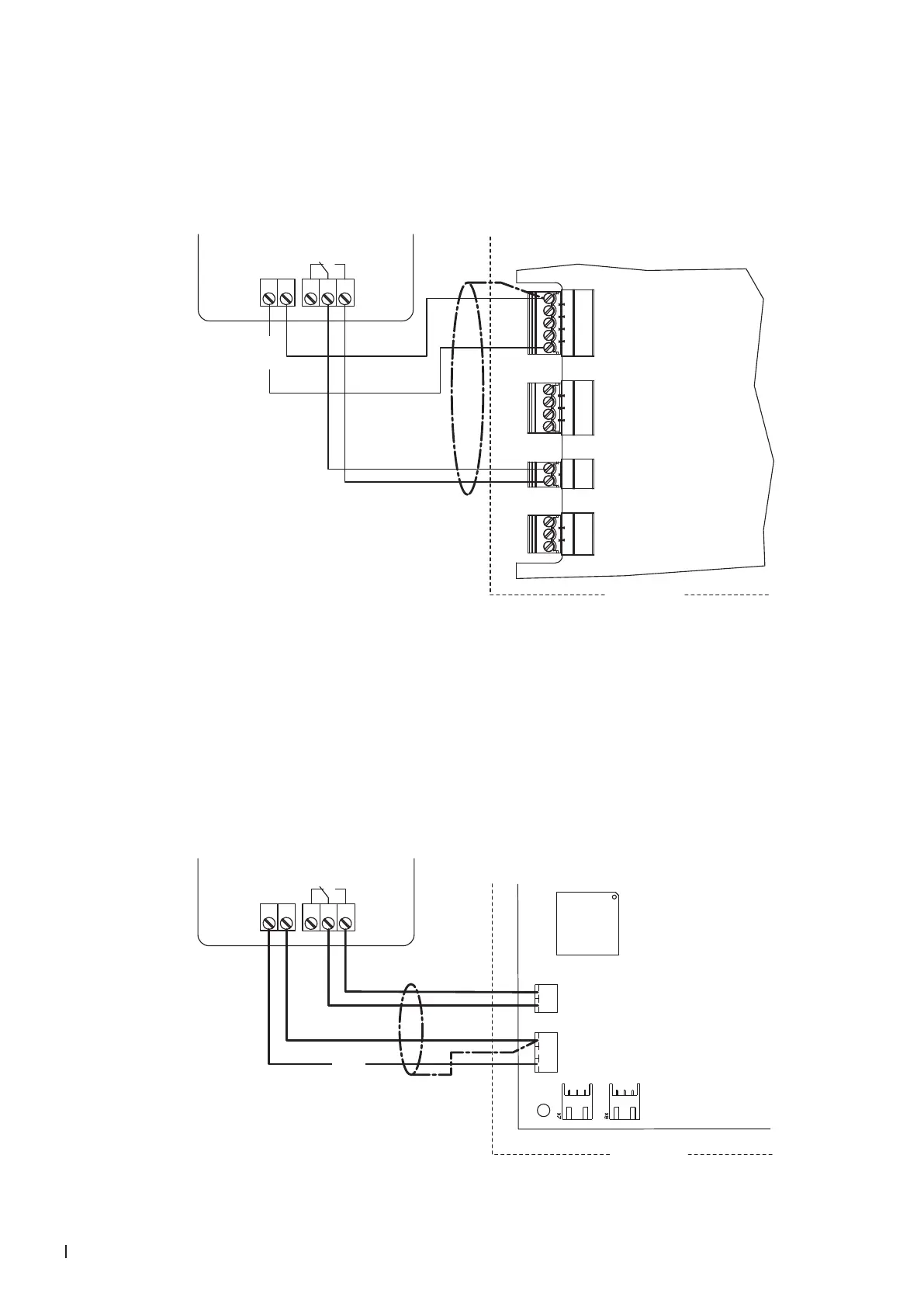

1. Connect the Condair CDA-S to the corresponding terminals on the driver board of the Condair RH
according to the wiring diagram below.
Note: The voltage supply of the CDA-S is established via the terminals "24V" and "GND" of terminal
block "X4" or via an external 24 V AC/DC voltage supply.
Condair RH
12 11 14
1 2
L1 N
NC C NO
CDA-S
24V
HUM
GND
X4
X5
X3
X2
SC
SC
24V
LIM
GND
GND
24V
EXT
GT
RF
GF
24 VDC
Driver board Condair RH
10.7.10 Connecting the CDA-S to the Condair RE
1. Connect the Condair CDA-S to the corresponding terminals on the driver board of the Condair RE
according to the wiring diagram below.
Note: The voltage supply of the CDA-S is established via the terminals "24VDC" and "GND" of ter-
minal block "X6" or via an external 24 V AC/DC voltage supply.
12 11 141 2
L1 N
NC C NO
CDA-S
24 VDC
Condair RE
X6
X5
GND
HUM
24VDC
SC
SC
Driver board Condair RE
