26 Condair CDC, CDC-NA, CDC-ST and CDC-SL
2.8.3 Connecting the CDC or CDC-NA to the Condair RS/RS OC

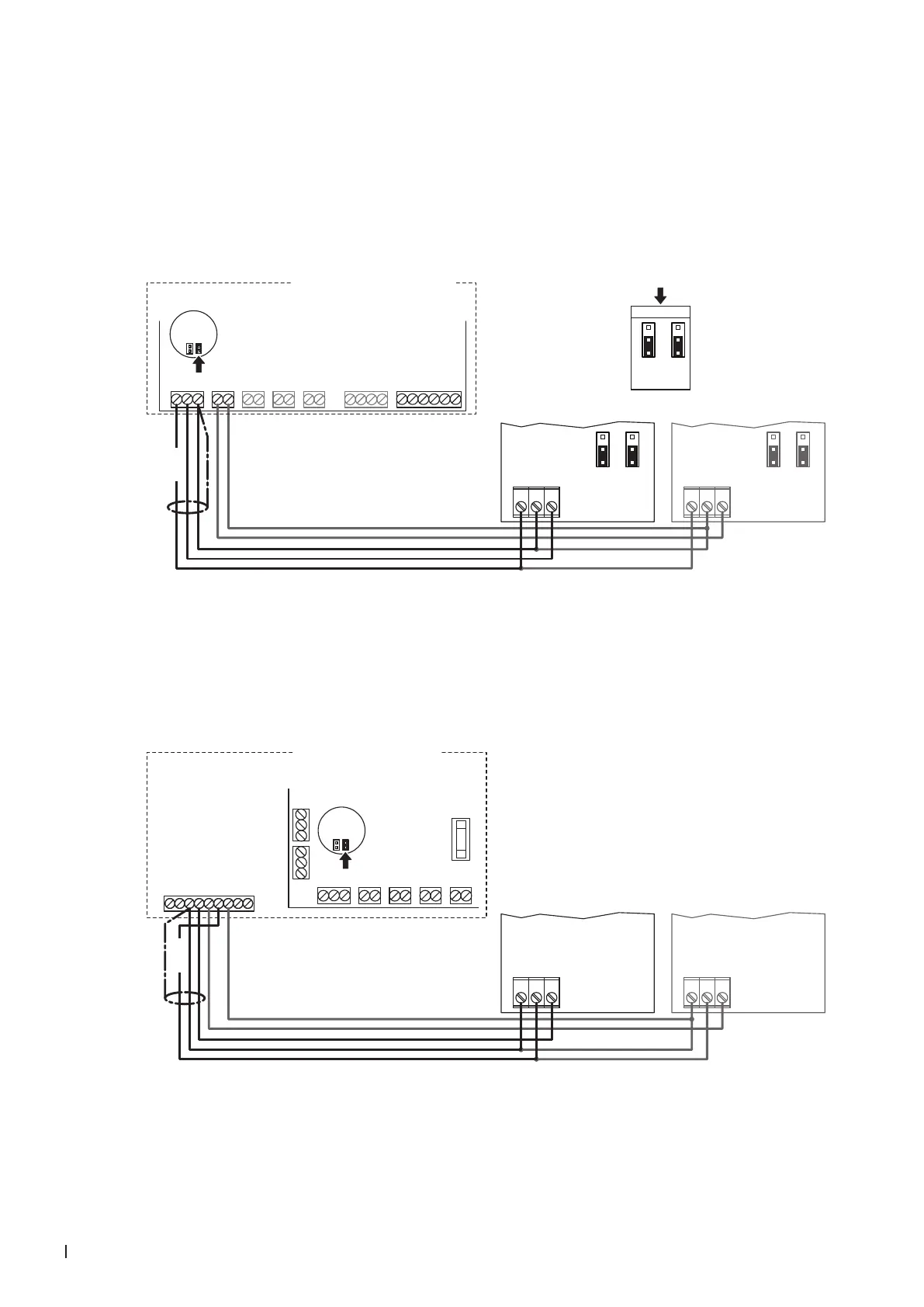

1. Connect the CDC (signal Y1) to the corresponding terminals on the driver board of the Condair RS/
RS OC (ROW) according to the following diagram.
Note: The voltage supply of the CDC is established via the terminals "V+" and "GND" of terminal
block "X8" or via an external 24 V AC/DC voltage supply.
Note: In case of humidity control with limitation of the supply air humidity, a second CDC duct humid-
ity sensor (signal Y2) is to be connected according to the wiring diagram below.
MAINS SUPPLY
L N SC1SC2PEPE
MODULE B
24VDCBLOWERLIMIT ENABLECONTROL
V+
X8
X9
X12
X11
X10
X7
X1
INGND IN GND 24V IN24V IN 24V GND
JP2 (24V)
JP1 (10V)
***
0...10V
24V AC/DC
0V/GND
H OUT
JP1
2
3
1
JP3
2
3
1
***
1 2 3
JP1
2
3
1
JP3
2
3
1
Condair RS/RS OC (ROW)
24V AC/DC
0V/GND
H OUT
JP1
2
3
1
JP3
2
3
1
***
1 2 3
24 VDC
Driver board Condair RS/RS OC Module A
CDC (Signal Y1) CDC (Signal Y2)
Connect the CDC-NA (signal Y1) to the appropriate terminals of the terminal block "XE2" of the
Condair RS/RS OC (NA) according to the following diagram.
Note: The voltage supply of the CDC-NA is established via the terminals "Control Signals (V+)" and
"Control Signals (GND)" of terminal block "XE2" or via an external 24 V AC/DC voltage supply.
Note: In
case of humidity control with limitation of the supply air humidity, a second CDC-NA duct
humidity sensor (signal Y2) is to be connected according to the wiring diagram below.
0V/GND
24V AC/DC
H OUT
1 2 3
Condair RS/RS OC (NA)
24V AC/DC
0V/GND
H OUT
1 2 3
BLOWERLIMIT ENABLECONTROL
V+
X8
X9
X12
X11
INGND IN GND 24V IN24V IN
RS485-1 RS485-2
GND D–D+ GND D–D+
24VAC
External Safety Loop
Control signal (GND)
Control signal (IN)
Limit signal (IN)
Control signal (V+)
Limit signal (GND)
Safety circuit BP
Safety circuit BP
1 2 3 4 5 6 7 8 9
XE2
24VDC
X10
24V GND
JP2 (24V)
JP1 (10V)
24 VDC
Driver board
Condair RS/RS OC
Module A
CDC-NA (Signal Y1) CDC-NA (Signal Y2)
2. Set a jumper on JP2 (24V) on the driver board of the Condair RS/RS OC and remove the jumper
on JP1 (10V), if present.
