28 Condair CDC, CDC-NA, CDC-ST and CDC-SL
2.8.4 Connecting the CDC or CDC-NA to the Condair EL/EL OC

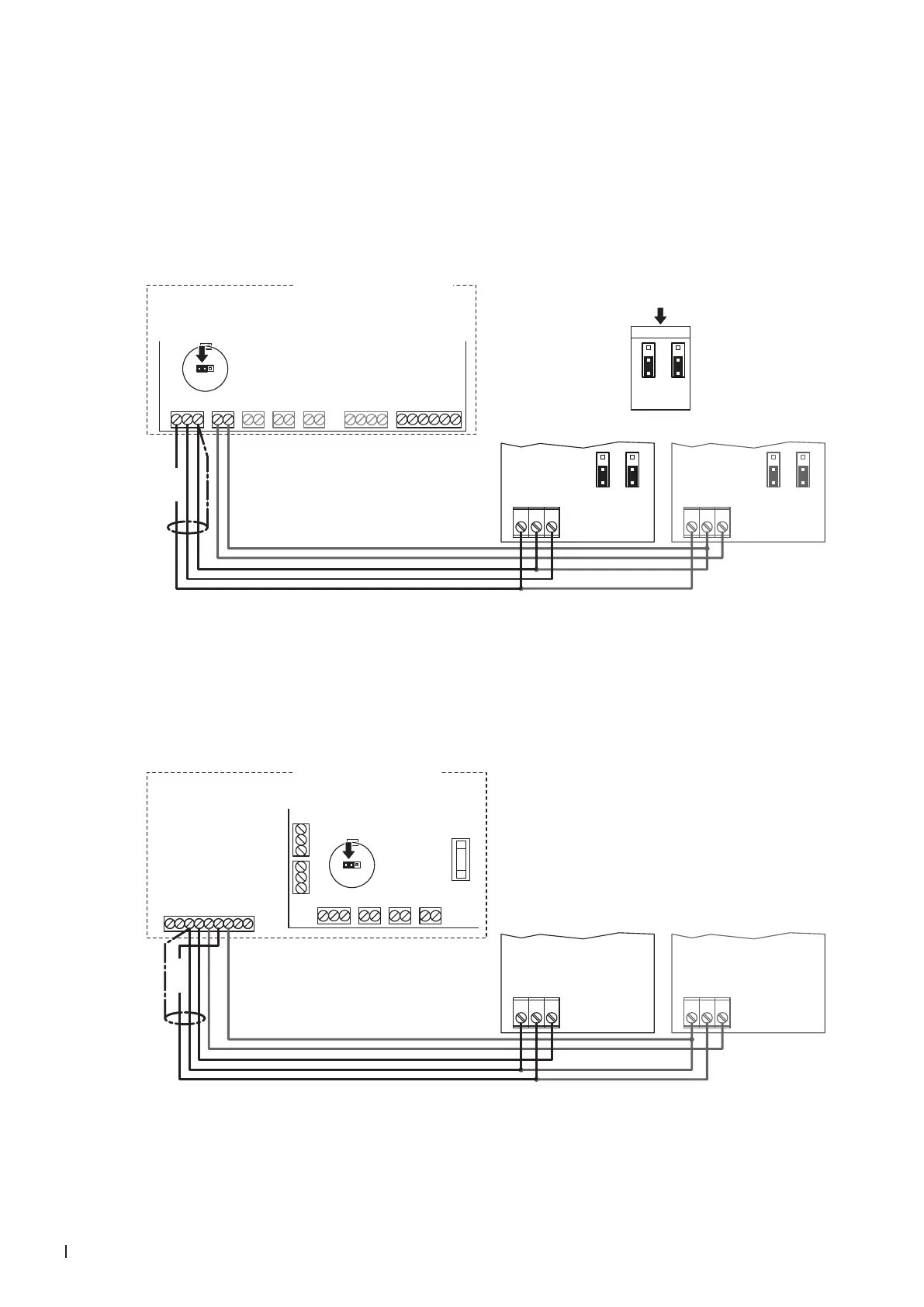

1. Connect the CDC (signal Y1) to the corresponding terminals on the driver board of the Condair EL/
EL OC (ROW) according to the following diagram.
Note: The voltage supply of the CDC is established via the terminals "V+" and "GND" of terminal
block "X8" or via an external 24 V AC/DC voltage supply.
Note: In case of humidity control with limitation of the supply air humidity, a second CDC duct humid-
ity sensor (signal Y2) is to be connected according to the wiring diagram below.
MAINS SUPPLY
L N SC1SC2PEPE
MODULE B
24VDCBLOWERLIMIT ENABLECONTROL
V+
X8
X9
X12
X11
X10
X7
X1
INGND IN GND 24V IN24V IN 24V GND
***
0...10V
24V AC/DC
0V/GND
H OUT
JP1
2
3
1
JP3
2
3
1
***
1 2 3
JP1
2
3
1
JP3
2
3
1
Condair EL/EL OC (ROW)
24V AC/DC
0V/GND
H OUT
JP1
2
3
1
JP3
2
3
1
***
1 2 3
24V 10V
JP1
JP3
24 VDC
Driver board Condair EL/EL OC Module A
CDC (Signal Y1) CDC (Signal Y2)
Connect the CDC-NA (signal Y1) to the appropriate terminals of the terminal block "XE2" of the
Condair EL/EL OC (NA) according to the following diagram.
Note: The voltage supply of the CDC-NA is established via the terminals "24VDC/10VDC" and "GND"
of terminal block "XE2" or via an external 24 V AC/DC voltage supply.
Note: In case of humidity control with limitation of the supply air humidity, a second CDC duct humid-
ity sensor (signal Y2) is to be connected according to the wiring diagram below.
0V/GND
24V AC/DC
H OUT
1 2 3
Condair EL/EL OC (NA)
24V AC/DC
0V/GND
H OUT
1 2 3
BLOWERLIM. SIGN. ON/OFFCONT. SIGN.
V+
X8
X9
X12
X11
IN GND IN GND 24V IN24V IN
RS485-1 RS485-2
24V 10V
JP1
JP3
GND D–D+ GND D–D+
24VAC
Sec. Loop
GND
CH1
CH2
24VDC/10VDC
GND
BP Sec. Loop
BP Sec. Loop
1 2 3 4 5 6 7 8 9
XE2
24 VDC
Driver board
Condair EL/EL OC
Module A
CDC-NA (Signal Y1) CDC-NA (Signal Y2)
2. Set a jumper on JP1-24V on the driver board of the Condair EL/EL OC.
