30 Condair CDC, CDC-NA, CDC-ST and CDC-SL

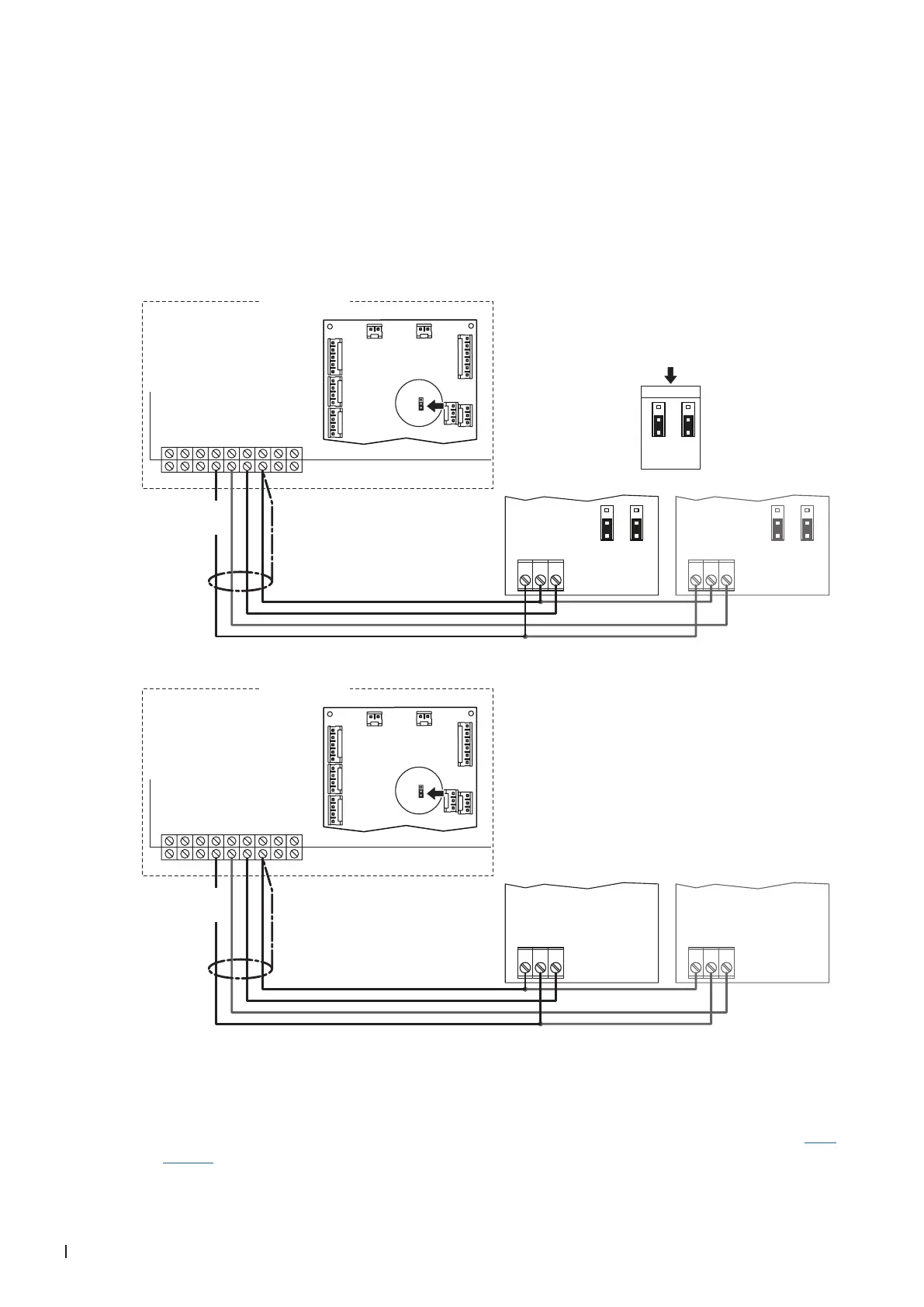

2.8.5 Connecting the CDC or CDC-NA to the Condair GS
1. Connect the CDC or CDC-NA (signal Y1) to the corresponding terminals of the Condair GS accord-
ing to the appropriate wiring diagram (see below).
Note: The voltage supply of the CDC or CDC-NA is established via the terminals "+24 VDC" and
"GND" of the terminal block or via an external 24 V AC/DC voltage supply.
Note: In case of humidity control with limitation of the supply air humidity, a second CDC or CDC-NA
duct humidity sensor (signal Y2) is to be connected according to the appropriate wiring diagram below.
1
2
3
4
5
67
89
24VAC
Safety Loop
GND
GND
FTBD
CH1
CH2
+24 VDC
Condair GS
***
0...10V
JP1
2
3
1
JP3
2
3
1
24 VDC
J1
J10
J3
J7
J8
J1
J2
JP2
24V 10V
24V AC/DC
0V/GND
H OUT
JP1
2
3
1
JP3
2
3
1
***
1 2 3
24V AC/DC
0V/GND
H OUT
JP1
2
3
1
JP3
2
3
1
***
1 2 3
1
2
3
4
5
67
89
24VAC
Safety Loop
GND
GND
FTBD
CH1
CH2
+24 VDC
Condair GS
24 VDC
J1
J10
J3
J7
J8
J1
J2
JP2
24V 10V
0V/GND
24V AC/DC
H OUT
1 2 3
0V/GND
24V AC/DC
H OUT
1 2 3
Driver board
Condair GS
Driver board
Condair GS
CDC (Signal Y1)
CDC-NA (Signal Y1)
CDC (Signal Y2)
CDC-NA (Signal Y2)
2. On the driver board of the Condair GS: set a Jumper on JP2-24V.
3. Only for CDC: Set the output signal of the CDC to "0-10V" using the Jumpers JP1 and JP3 on the
control board of the CDC.
Note: other output signal settings (e.g. 4-20mA) are also possible, see CDC jumper settings in Sec-
tion 2.7.
