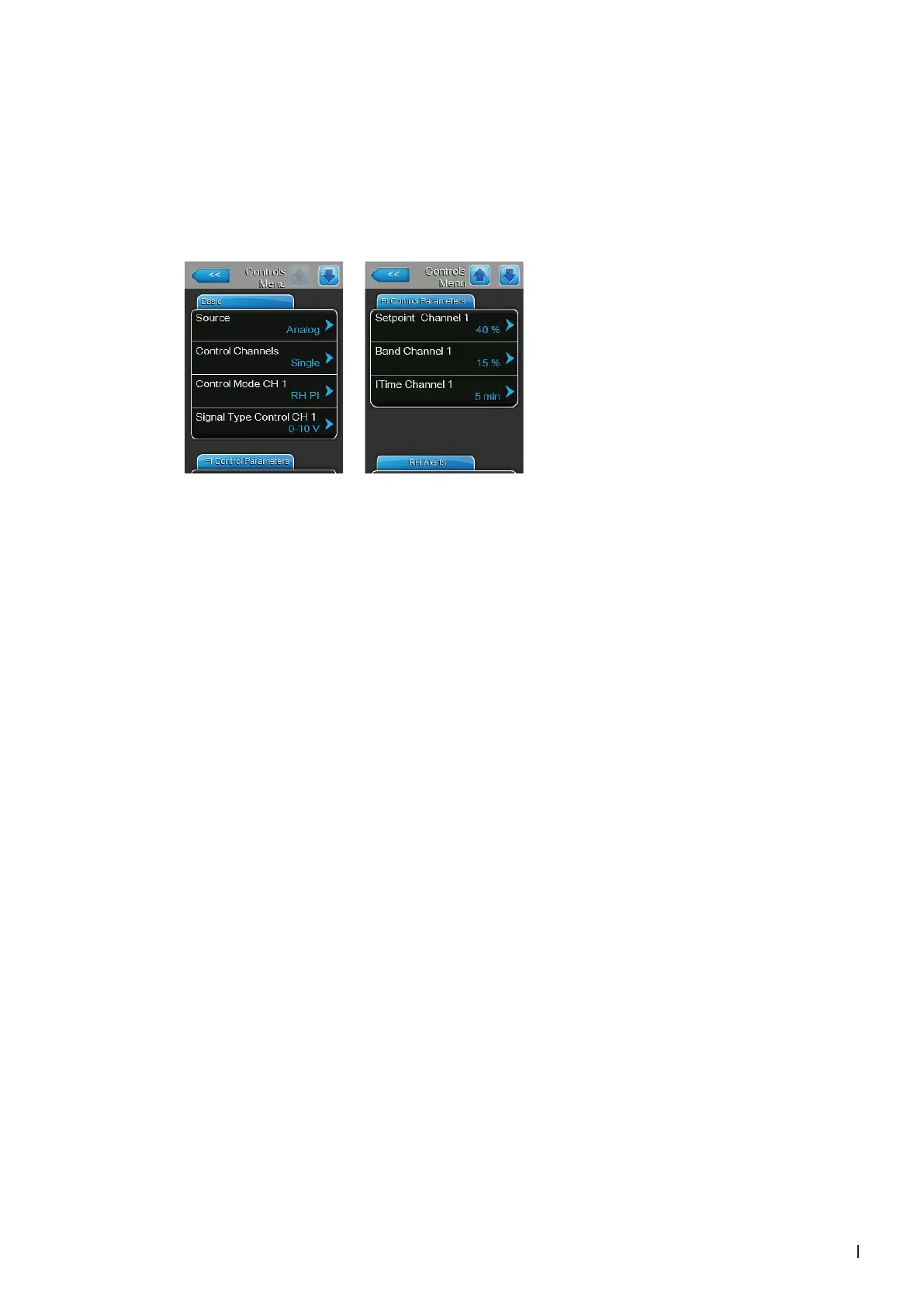

4. Set the Condair GS into operation, go to the control menu of the unit software and set the parameters
"Source" to "Analog", "Control Mode CH 1" to "RH PI", "Signal Type Control CH 1" to "0-10V" (or
to output signal set on CDC) or "2-10V" (for CDC-NA) and the parameters "Setpoint Channel 1",
"Band Channel 1" and "ITime Channel 1" to the desired values (refer to the Condair GS operation
manual).
Note: if required, also set the limitation parameters (signal Y2). In order to be able to set these
parameters, the "Control channels" parameter must be set to "Double" (refer to the Condair GS
operation manual).
