5. Each Component Function
User’s Manual
89

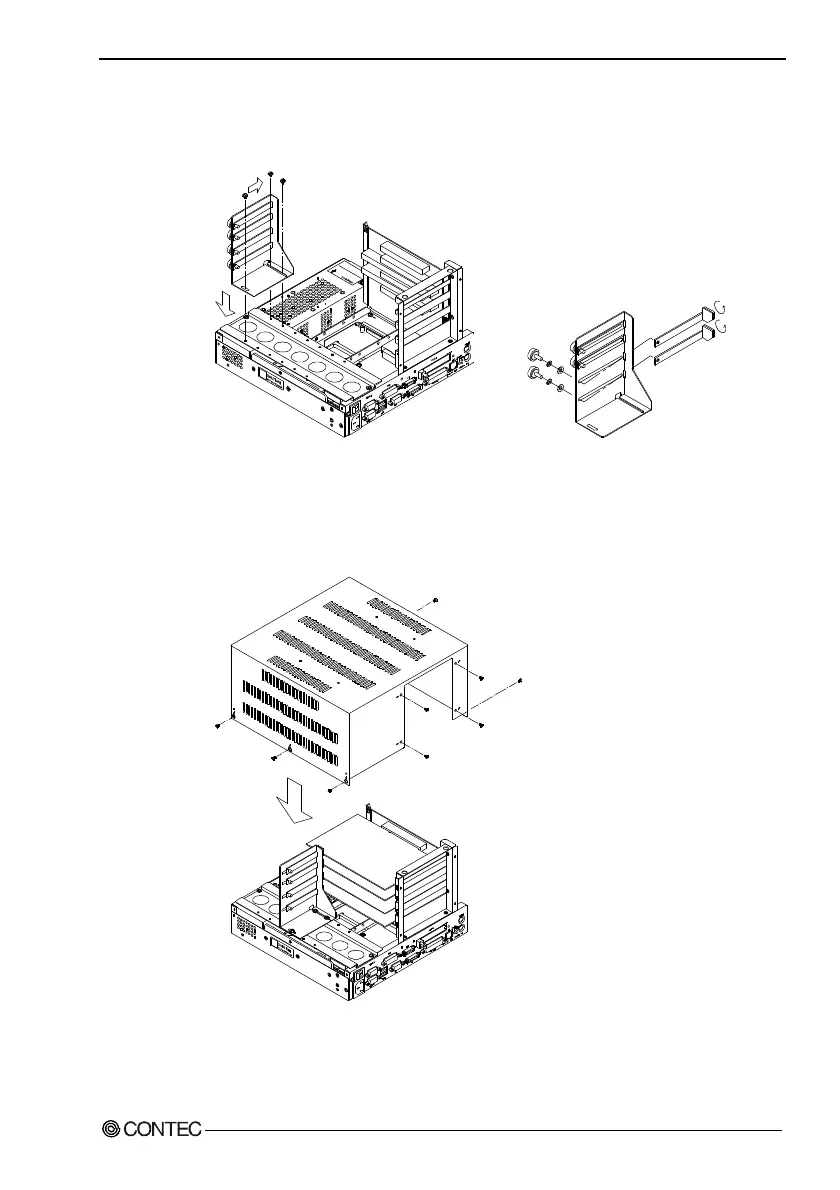

(5) Install the PCB brace. It can hold down a board if its height
is at least 68mm. This brace is assembled to fit the PCI card.
To use it with the ISA card, rotate the claws and reinstall them.
Figure 5.34. Attaching the Figure 5.35. Adjusting to
PCB Brace Use the ISA
Card
(6) Replace the expansion slot cover.
Figure 5.36. Replacing the Top Cover
