COMMANDER SE QUICK START

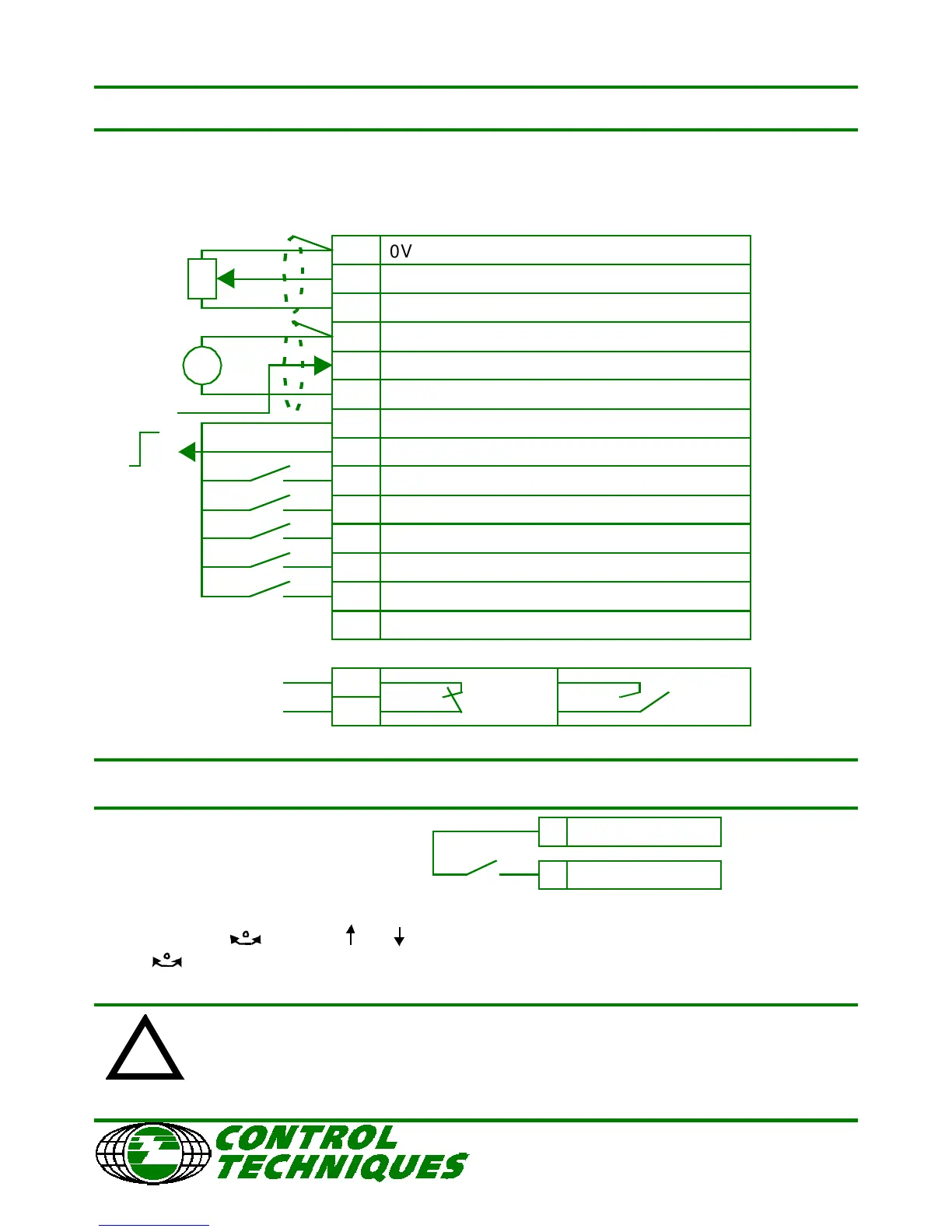

TERMINAL CONTROL
As default - in positive logic (connect terminals to +24V to activate).
Parameter 5 set to A1. A2.
KEYPAD CONTROL
Set parameter 5 to PAd. If reverse is required, set parameter 10 to L2 and set parameter 26
to On to enable key. Use and keys to increase/decrease speed. Press
I key to go.
Press key to reverse and
O key to stop.
NOTE! When parameter 5 is set to PAd, terminals 12 and 13 do not have any functionality.
Improper procedures can result in personal injury or equipment damage.
Use this Quick Start Guide only if you are familiar with standard safety
precautions common to electronic drives. See Commander SE User
Guide for details.
0V common
Local voltage speed reference input (A1)
Remote current speed reference input (A2)
+10V reference output
0V common
Analog output (Motor speed)
+24V output
+24V output
Digital output (Zero speed)
Drive Enable / Reset
Run Forward
Run Reverse
Local (A1) / Remote (A2) speed reference
Jog Select
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
10kΩ
(2kΩ min)
0-10V
4-20mA
0V
+24V
V
-
+
OK FAULT
7
9
+24V
Drive Enable
Connect terminals 7 & 9
!
WARNING
1
