Control Techniques COMMANDER SE Quick Start Quide

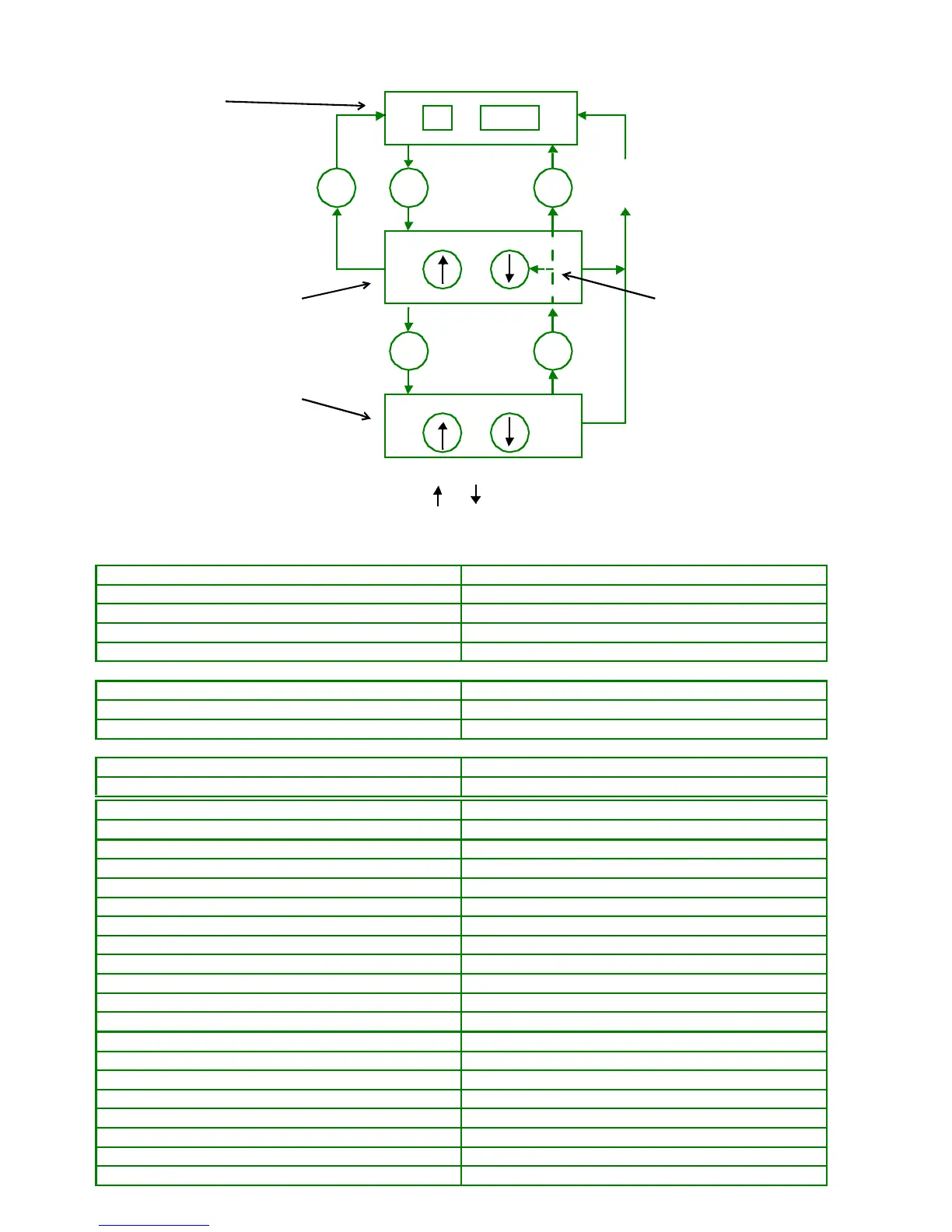

SELECTING AND CHANGING PARAMETERS
NOTE! To return from Parameter Edit mode to Parameter View mode, press the M key once. When
in Parameter View mode - EITHER press the or keys to select another parameter to change, then
press the M key to enter Parameter Edit mode OR press the M key to return to Status mode.
DISPLAY MNEMONICS
LEFT HAND DISPLAY STATUS MODE
rd Drive ready
ih Drive inhibited
tr Drive has tripped
dc DC injection braking
SPEED INDICATIONS
Fr Drive output frequency in Hz
SP Motor speed in RPM
Cd Machine speed in Customer defined units
LOAD INDICATIONS
Ld Drive loading in % of motor rating
A Drive output current per phase
TRIP CONDITION RIGHT HAND DISPLAY
DC link under voltage UU
DC link over voltage OU
AC instantaneous over current trip OI.AC
Overcurrent on braking resistor OI.br
External trip Et
Overspeed trip O.SP
Auto-tune failure tunE
Ixt on braking resistor It.br
Motor overload on current x time It.AC
Overheat (Heatsink thermistor) Oht2
Over temperature (Motor thermistor) th
+24V or digital output overload O.Ld1
Current loop loss term. 5 (4-20mA, 20-4mA) cL
EEPROM failure EEF
Stator resistance measurement failure rS
Phase loss PH*
Comms port supply overload O.Ld2
Overload on current loop input O.cL
Internal drive self check failure HF
Parameter View Mode
(left hand display flashing)
Select parameter to change
Press
Press Press
or
Press
or
PressPressHold
2 secs
4 mins
timeout
M
M
M
M
M
Parameter Edit Mode
(right hand display flashing)
Change parameter value
Status Mode
(display not flashing) rd 0.0
See NOTE!
* 3 Phase units only
3
