b. Remove the fastening nut (Figure 68/2) with the
flat seal (Figure 68/1) from the drain fitting
(Figure 68/3).
c. Pull out the drain fitting (Figure 69/1) with the
O-ring through the opening (Figure 69/2) of the
drip tray (Figure 69/3) in an upward motion.
14. Remove the panel from the unit.
15. Clean the area underneath the drip tray.
Notice!
Never use abrasive cleaners or oily solvents, and
never put the individual parts in the dishwasher, as
this may damage the material.
1
2
3

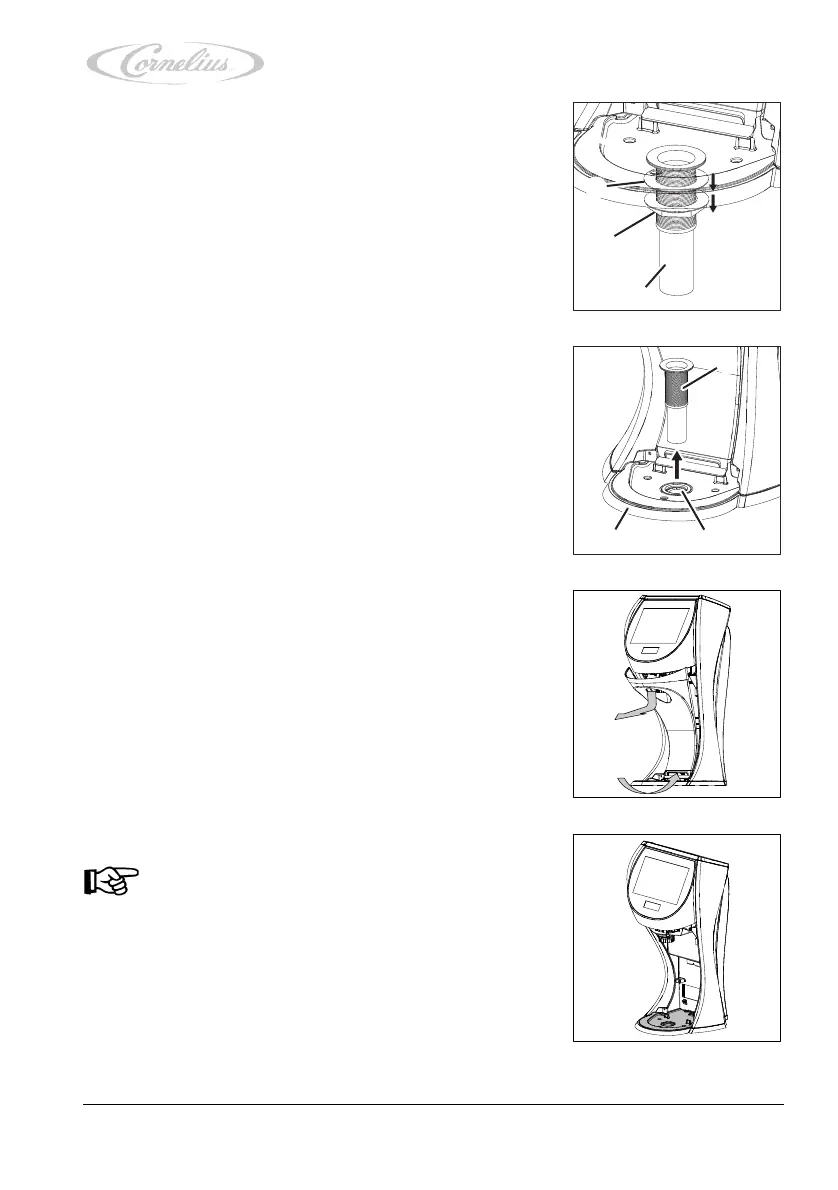

Figure 68
3 2
1
Figure 69
Figure 70
Figure 71
