5 Maintenance
Operator manual: Postmix tower
Ribbon
47
Cornelius Deutschland GmbH
Document no. TD0000000
Version: 19/10/2017, Index 3

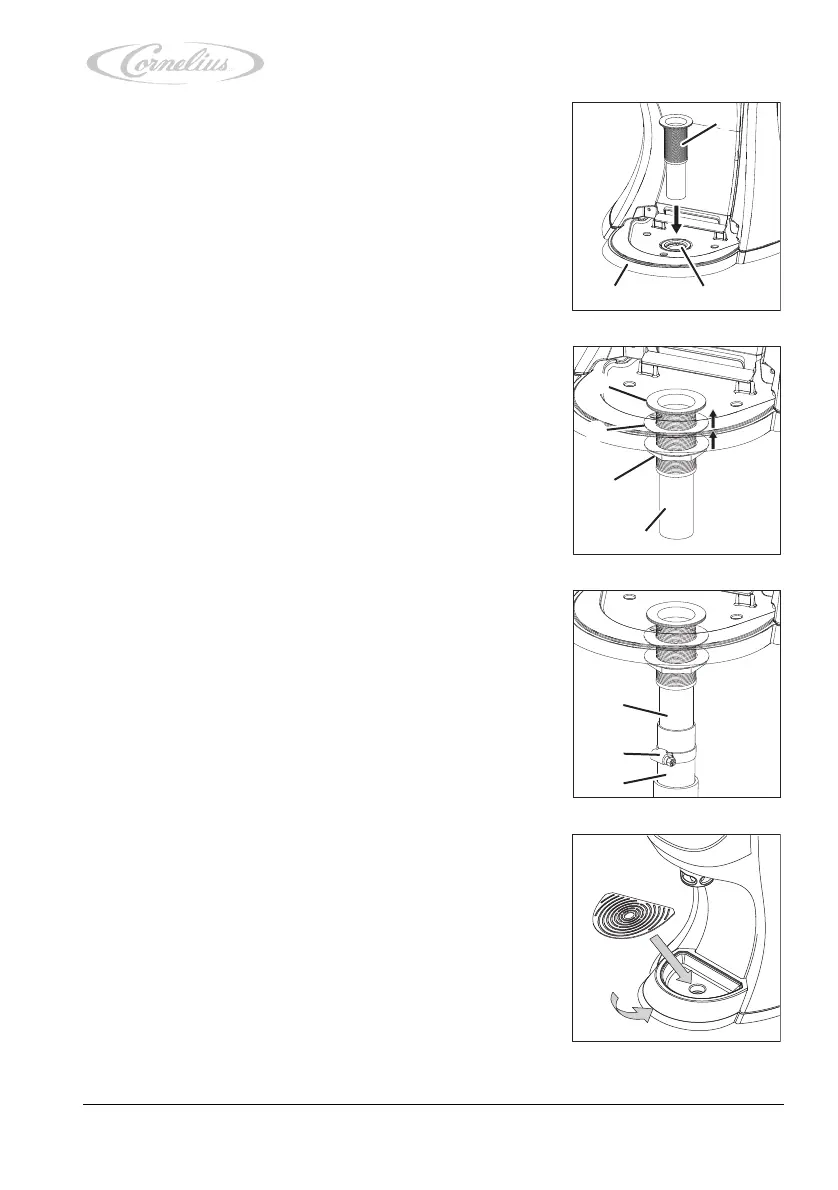

b. Insert the drain fitting (Figure 76/1) with the O-ring
through the opening (Figure 76/2) of the drip tray
(Figure 76/3).
c. Slide the flat seal (Figure 77/2) onto the drain fitting
(Figure 77/4) from below, all the way to the drip tray
(Figure 77/1).
d. Attach the drain fitting (Figure 77/4) to the drip tray
(Figure 77/1) using the fastening nut (Figure 77/3).
e. Attach the tube (Figure 78/3) to the drain fitting
(Figure 78/1) using a tubing clamp (Figure 78/2).
f. Proceed with step 22, page 47.
22. Attach the drip tray to the unit.
23. Insert the grill in the drip tray.
3 2
1
Figure 76
1
2
3
4
Figure 77
3
2
1
Figure 78
Figure 79
