⚫ Network load means the data flow which measures the transmission capability. You can view the information
such as data receiving speed and sending speed.
Step 1 Select Main Menu > INFO > NETWORK > LOAD.

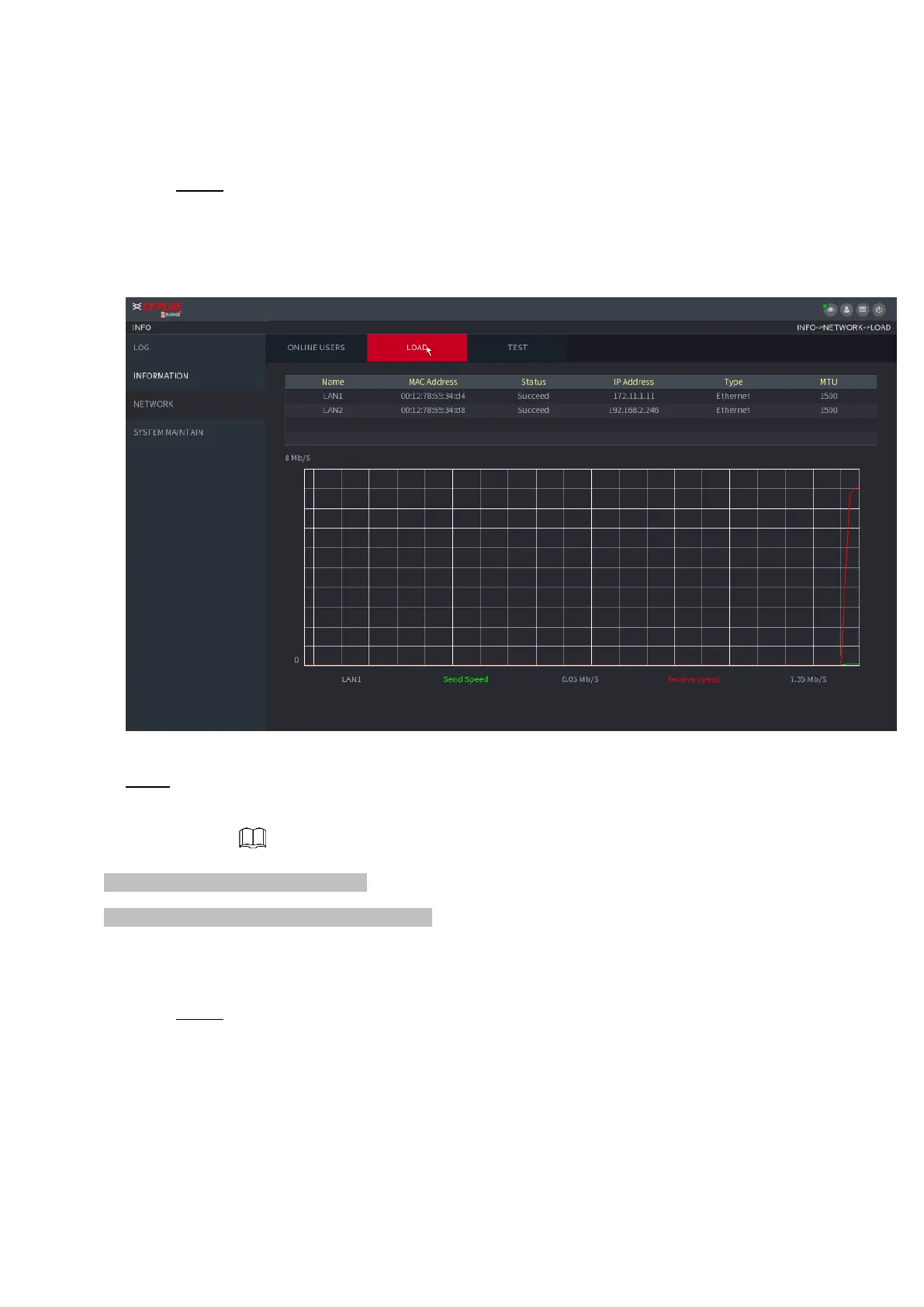

⚫ The LOAD interface is displayed. See Figure 1-192.
⚫
⚫ Figure 1-192
⚫
⚫ Step 2 Click the LAN name that you want to view, for example, LAN1.
⚫ The system displays the information of data sending speed and receiving speed.
⚫ System displays LAN1 load by default.
⚫ Only one LAN load can be displayed at one time.
1.10.3.3 Network Test
You can test the network connection status between the Device and other devices.
Step 1 Select Main Menu > INFO > NETWORK > TEST.
⚫ The TEST interface is displayed. See Figure 1-193.
⚫
⚫
⚫
⚫
⚫
