(b) Concrete Wall Mount: Drill holes at the marked positions
with a 0.4in. (10mm) masonry bit and insert M8
Expansion Anchors into the holes (expansion anchors
not provided); Fasten the Mounting Bracket with the
M8x25 Assembling Bolts (not supplied). Figure 3-7 and
Figure 3-8. Tool s Required: Electric drill (Ф10mm/0.4in.
masonry bit), No. 13 wrench

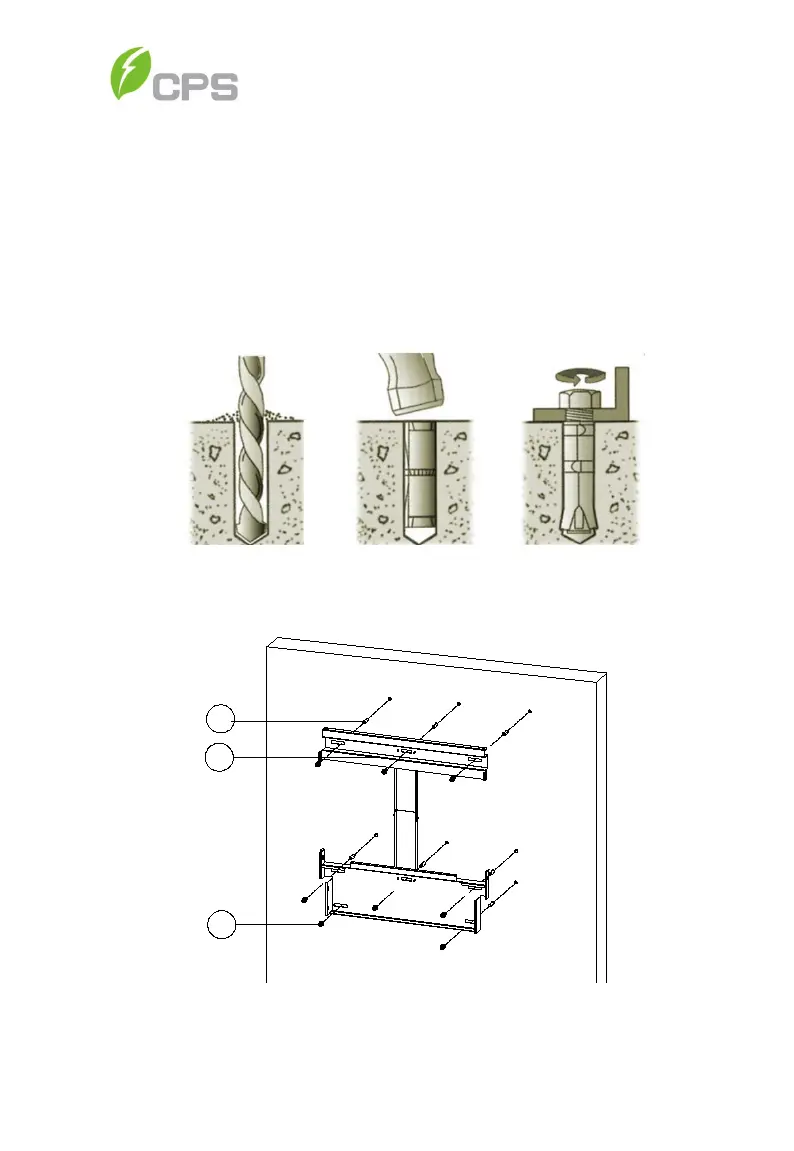

Figure 3-7 Drill holes, set Anchors, and tighten Assembly Bolts
Figure 3-8 Secure the Mounting Bracket
