Step 6 Attach the bulkhead cover shown in
Step 7 Figure
3-12 to the left side of the wiring box. (see
Step 8 Figure 3-15). Tool required: No. 2 Phillips head screwdriver,
torque value of 1.6N.m (14.2in-lbs)

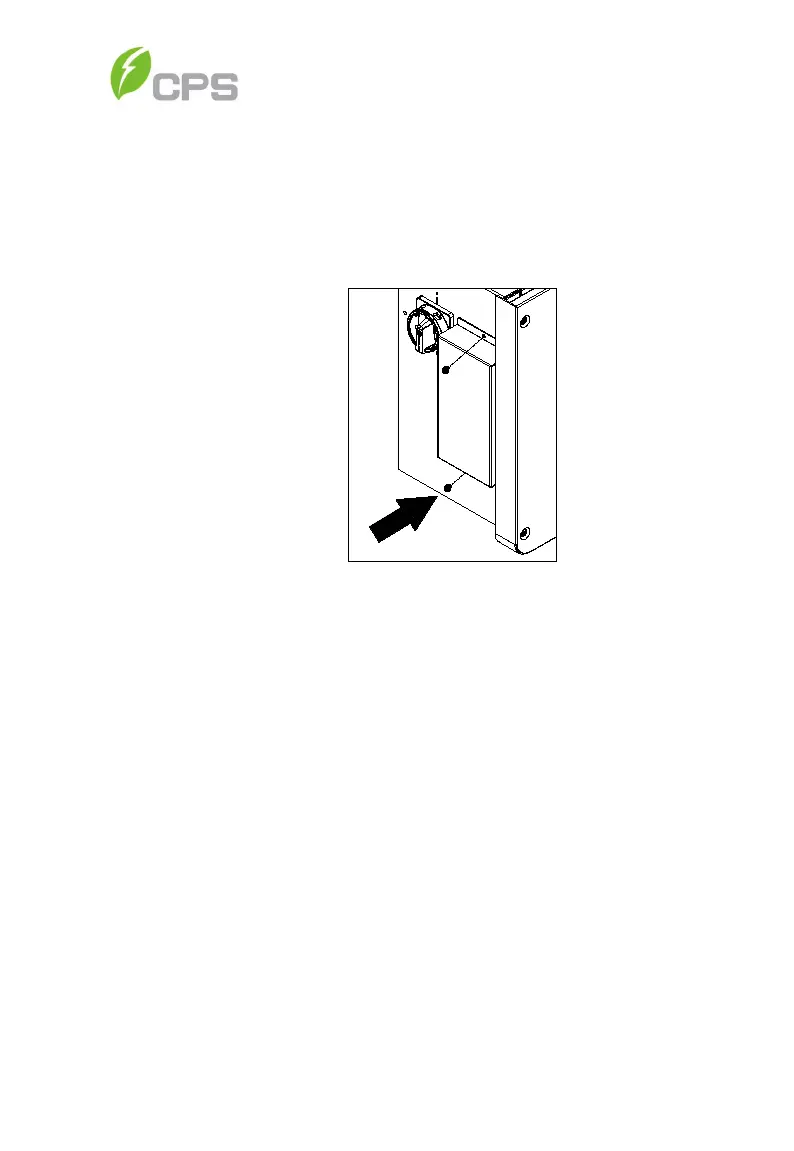

Figure 3-15 Attach the Cover to the left side of the Wiring Box
Step 9 Optional - Install an anti-theft padlock when the installation is
complete. The anti-theft padlock is used to prevent the inverter
from being stolen when the equipment is installed outdoors.
The inverter may be locked to the bracket (
Step 10 Figure
3-16).
