56

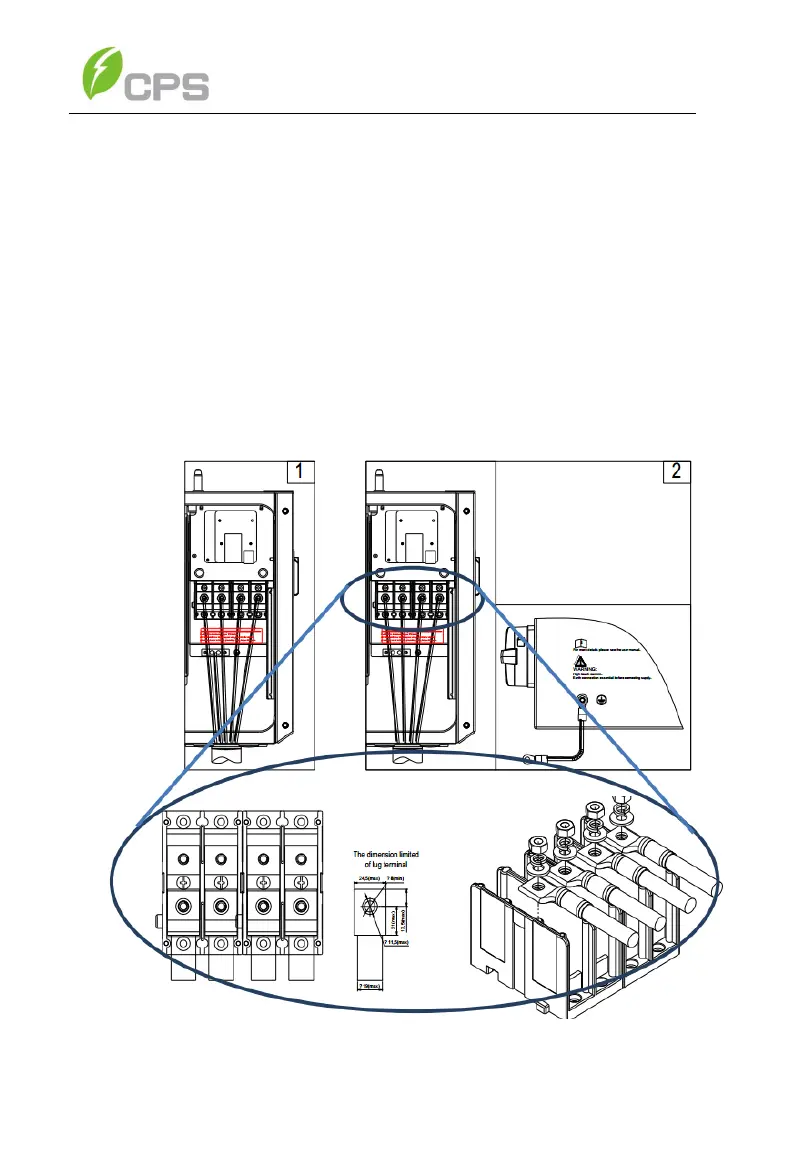

2. Grounding/Bonding. The inverter provides 1 grounding connection
on the AC side and one bonding location. These configurations are
illustrated below Figure 3-28).
(a) Grounding via the ground busbar (left) [1] This is required for
grounding the equipment by running the EGC with the
ungrounded conductors.
(b) Bonding via the external grounding point (right) [2]. The
external bonding connection is provided in case the
inverter/mount needs to be bonded to a metallic structure on
which it may be mounted.
Figure 3-27 AC Output and Ground Cable Connection
