Product Manual — Doc. 7750C TST-902 • 105
The Diagnostics - RFTelec Tests screen provides controls that can be used to perform various
Telec tests, including changing the RFchannel and power level.
Tap the back button to return to the Diagnostics - RF LQITest screen.
Tap the back button again to return to the Diagnostics screen.
Test Patterns
Tap Test Patterns on the Diagnostics screen to display the Diagnostics - Test Patterns screen.

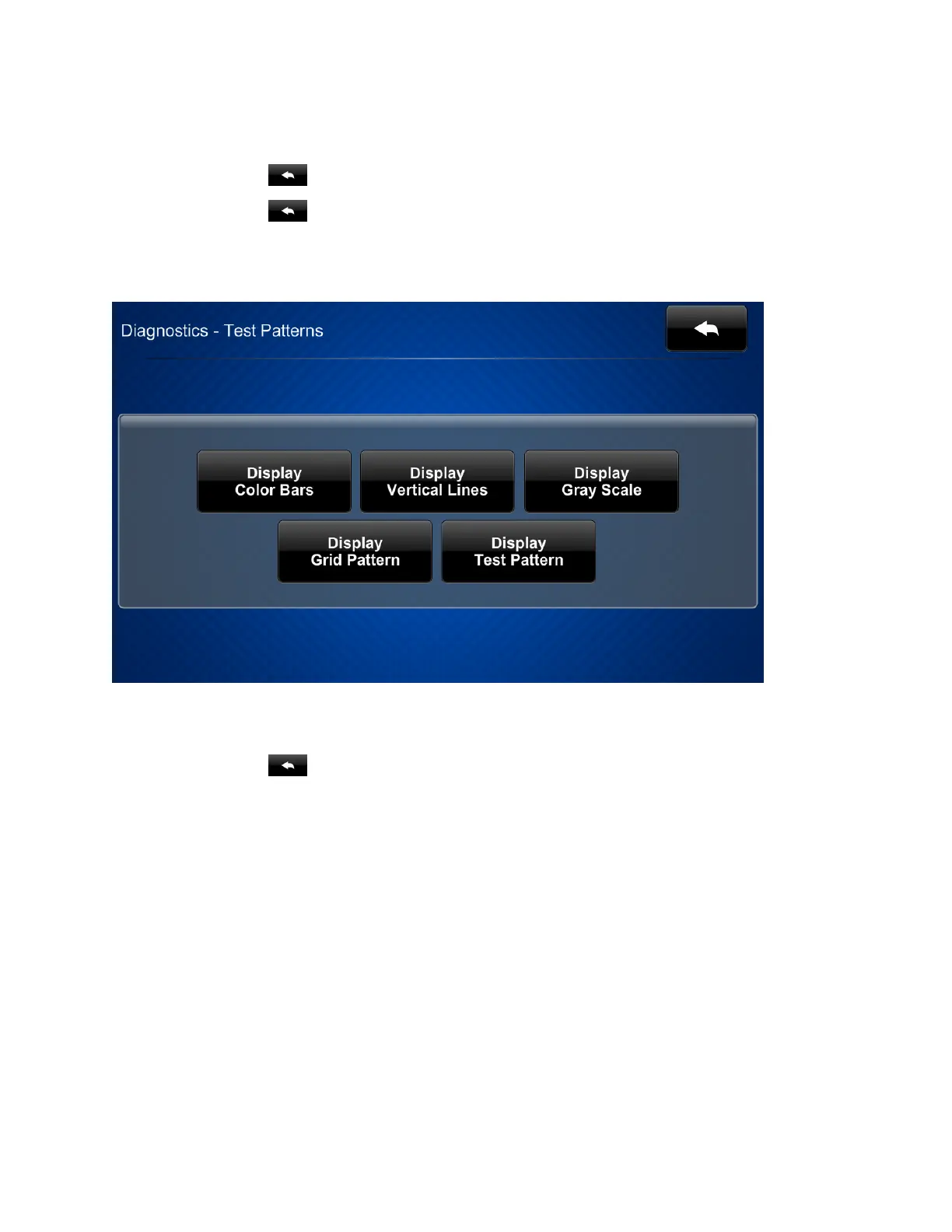

Use the Diagnostics - Test Patterns screen to display any of the available test patterns. Tap one
of the buttons on the screen to display its respective test pattern.
Tap the back button to return to the Diagnostics screen.
