CSL CS468 16-Port EPC CLASS 1 GEN 2 RFID READER
USER'S MANUAL, VERSION 2.0.1
Copyright © Convergence Systems Limited, All Rights Reserved
Antenna Sequence

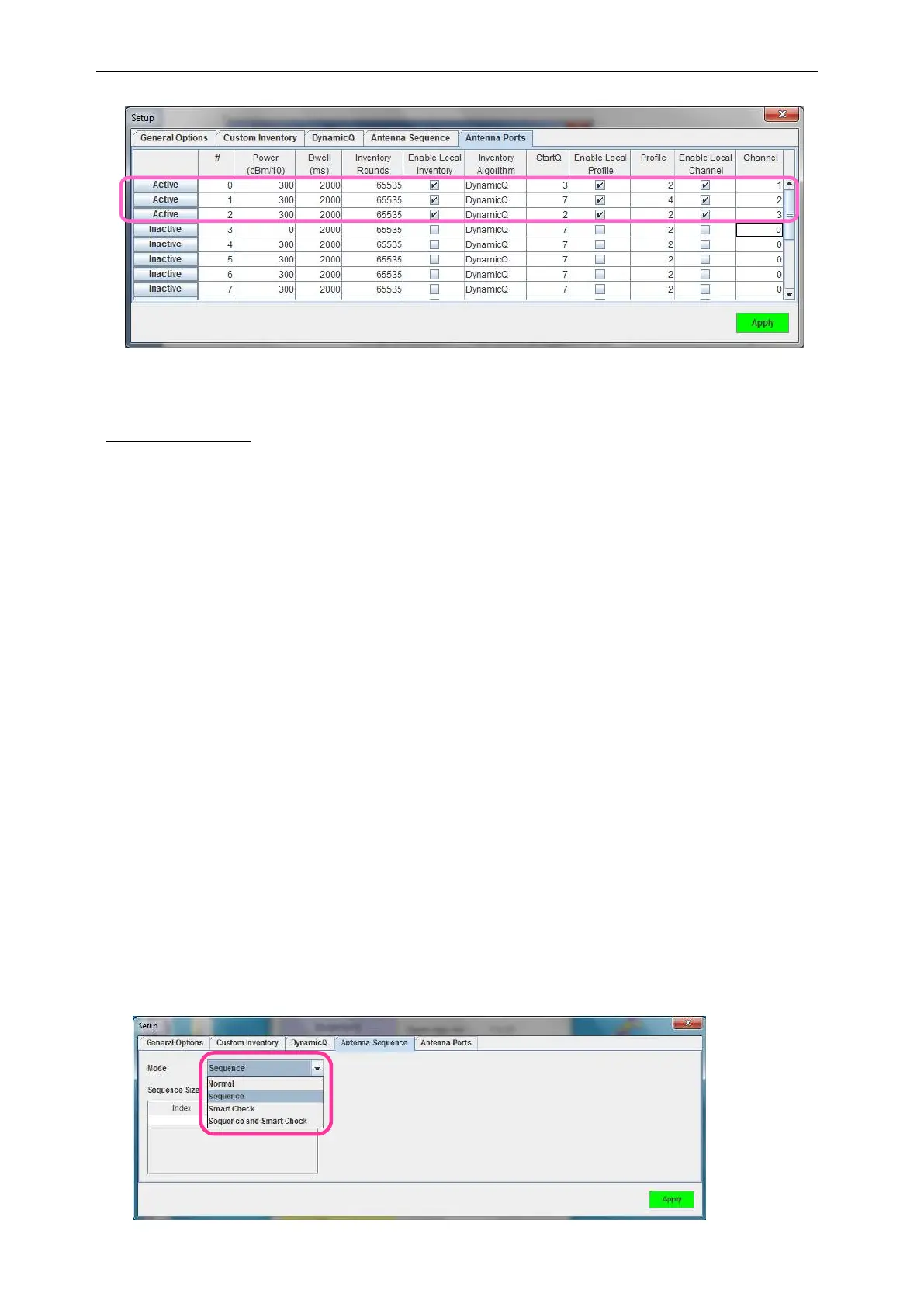

In “Antenna Sequence” tab, the antenna switching sequence can be configured. This is
needed in certain applications where the connected antenna from Port 0 to Port 15 may not be
excited in that simple ascending order, but rather in some weird order pertaining to actual
physical setup.
1. Normal Mode – The antenna port switching follows the normal port number sequence (e.g., 0,
1, 2, 3, 4, 5, 6, …..14,15 and then repeat from 0 again)
2. Sequence Mode – User-defined antenna port switching sequence (e.g. one can define 0, 15,
1, 14, 2, 13, 3, …..7,8 and then repeat)
3. SmartCheck Mode – Reader detects if there is any tag on each antenna. If there is no tag
detected, the reader will switch to next antenna port immediately.
4. Sequence and SmartCheck Mode – Combination of Sequence mode and SmartCheck mode.
User can configure antenna switching sequence when the option “Sequence” or “Sequence and
Smart Check” mode is chosen.
