Chapter 6. Manage / Configure the Switch
106
Port Setting : It is for modifying the setting of port. Follow the steps to do it.
1. Select the port that you want to modify in “Port#” first.
2. Fill the name of the port.
3. Select Enable/Disable state in “Admin”. If Disable is selected, this port will be disabled for any network access.
4. Select the Enable/Disable state of Auto function of port. The auto mode could be auto-negotiation or auto-detect
operation when auto is set to disable.
5. If Auto is disabled, select the operation speed and duplex mode of the port in “Speed/Duplex”.
6. Select the Enable/Disable state of Flow Control function of port.
7. Select the Enable/Disable state of Power Saving function of port. If it is enabled, port will go to low power state
when link down.
8. Select MDI/MDI-X operation mode. It could be “Auto”, “MDI”, or “MDI-X”. “Auto” can auto-detect and get the
correct connection mode. “MDI” will set the port to MDI mode for switch-to-switch connection. “MDI-X” will
set the port to MDI-X mode for user PC connection.
9. Click [Apply] after any modification.
2). Port Information

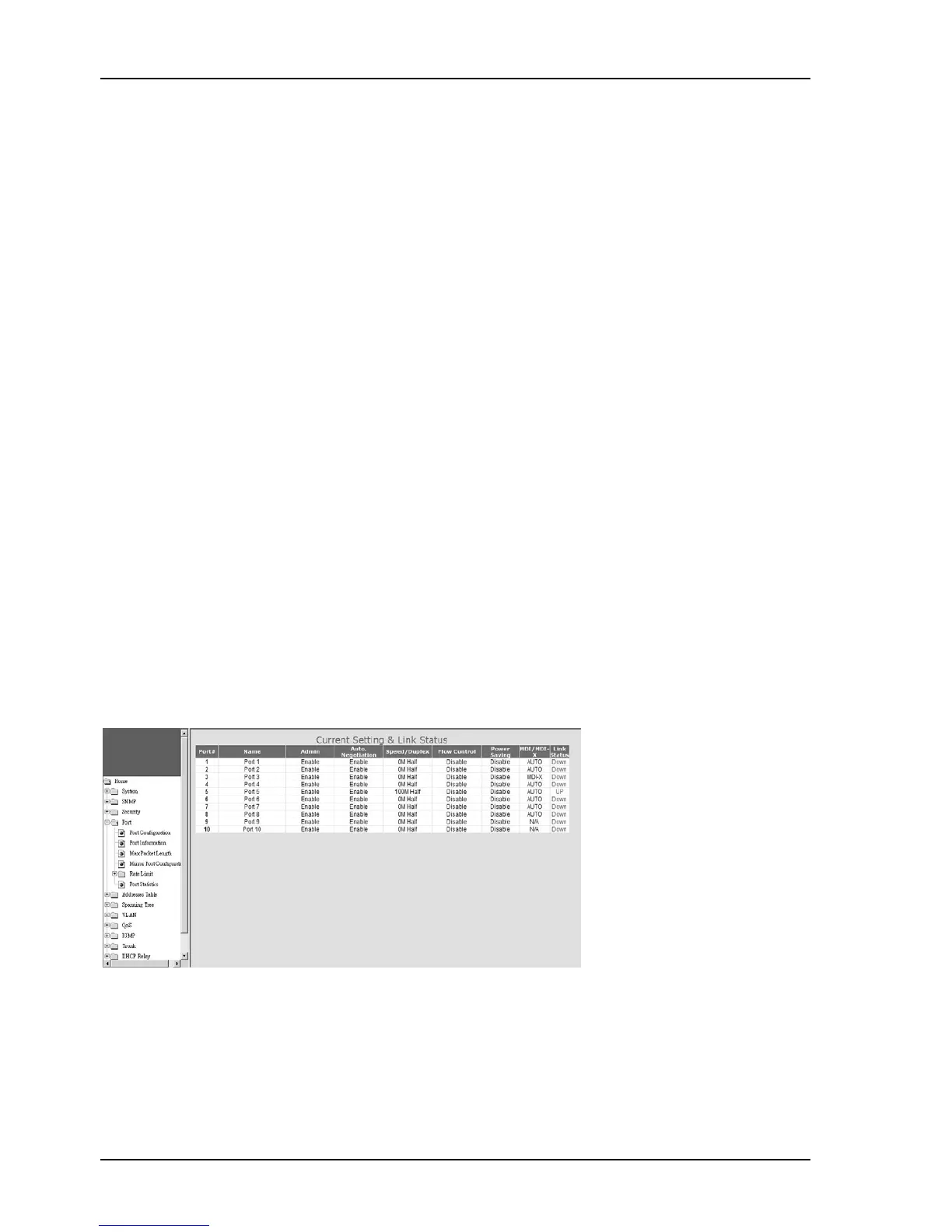

Current Setting & Link Status : It is current status of ports.
