CTC Union GSW-3208M User Manual

Chapter 6. Manage / Configure the Switch
126
Seven DSCP values (0~63) could be defined and map to priority queue at “IP Differential Service (DiffServ)
Configuration” page by clicking [Configure DSCP Priority] button.

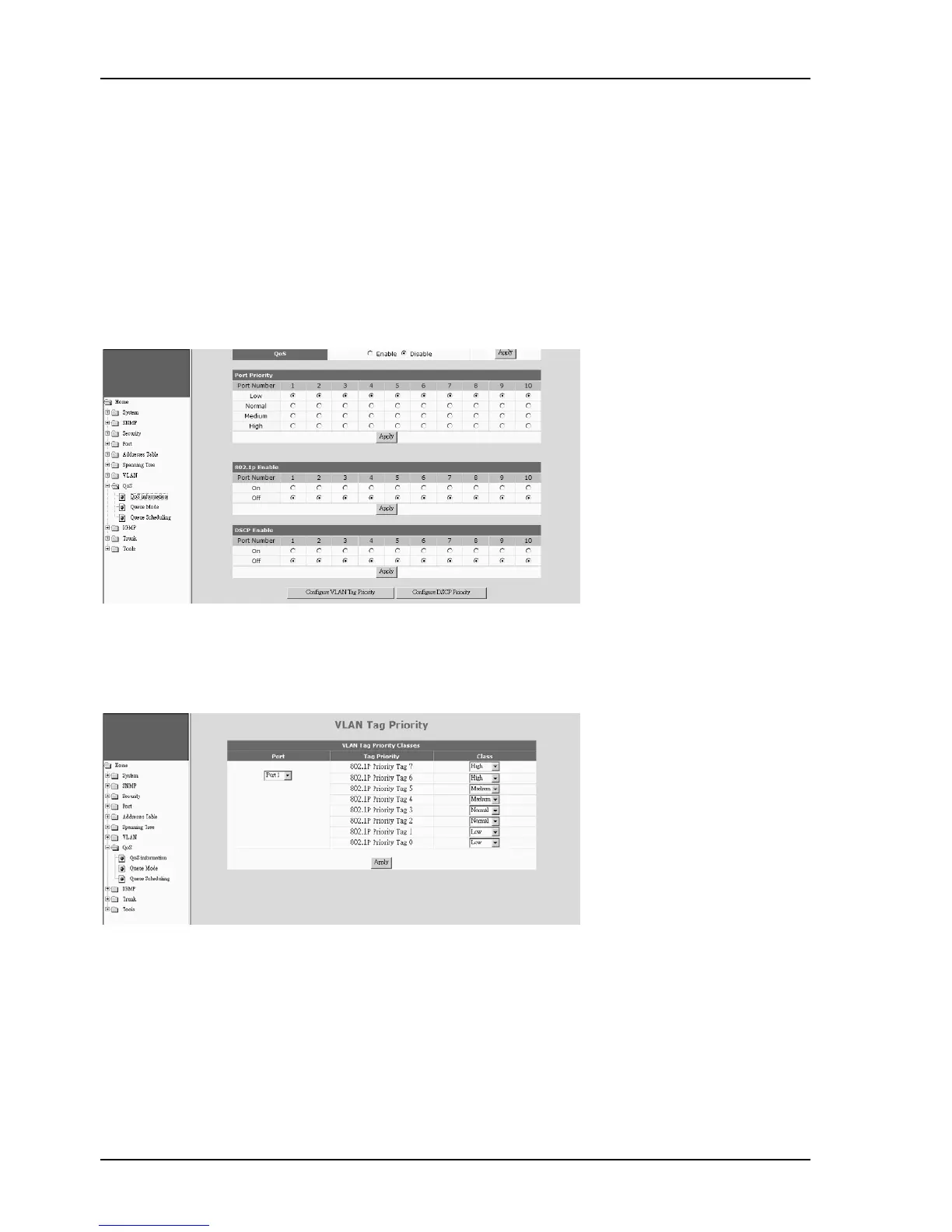

[Configure VLAN Tag Priority] button : Click this button can go to the “VLAN Tag Priority” page for 802.1P priority
values (0~7) to priority queue mapping setting.
[Configure DSCP Priority] button : Click this button can go to the “IP Differential Service (DiffServ) Configuration”
page for DSCP priority values (0~63) to priority queue mapping setting.
[802.1P Priority Mapping]
For 802.1P priority, priority value (0~7) in VLAN tag will be used for QoS operation. And the mapping of priority
values to priority queues (High/Middle /Normal/Low) could be defined here.
This mapping is done by port. And “All” could be selected for every port.
If 802.1P priority function is enabled, these settings will be followed for QoS operation.
