CTC Union GSW-3208M User Manual

Chapter 6. Manage / Configure the Switch
127

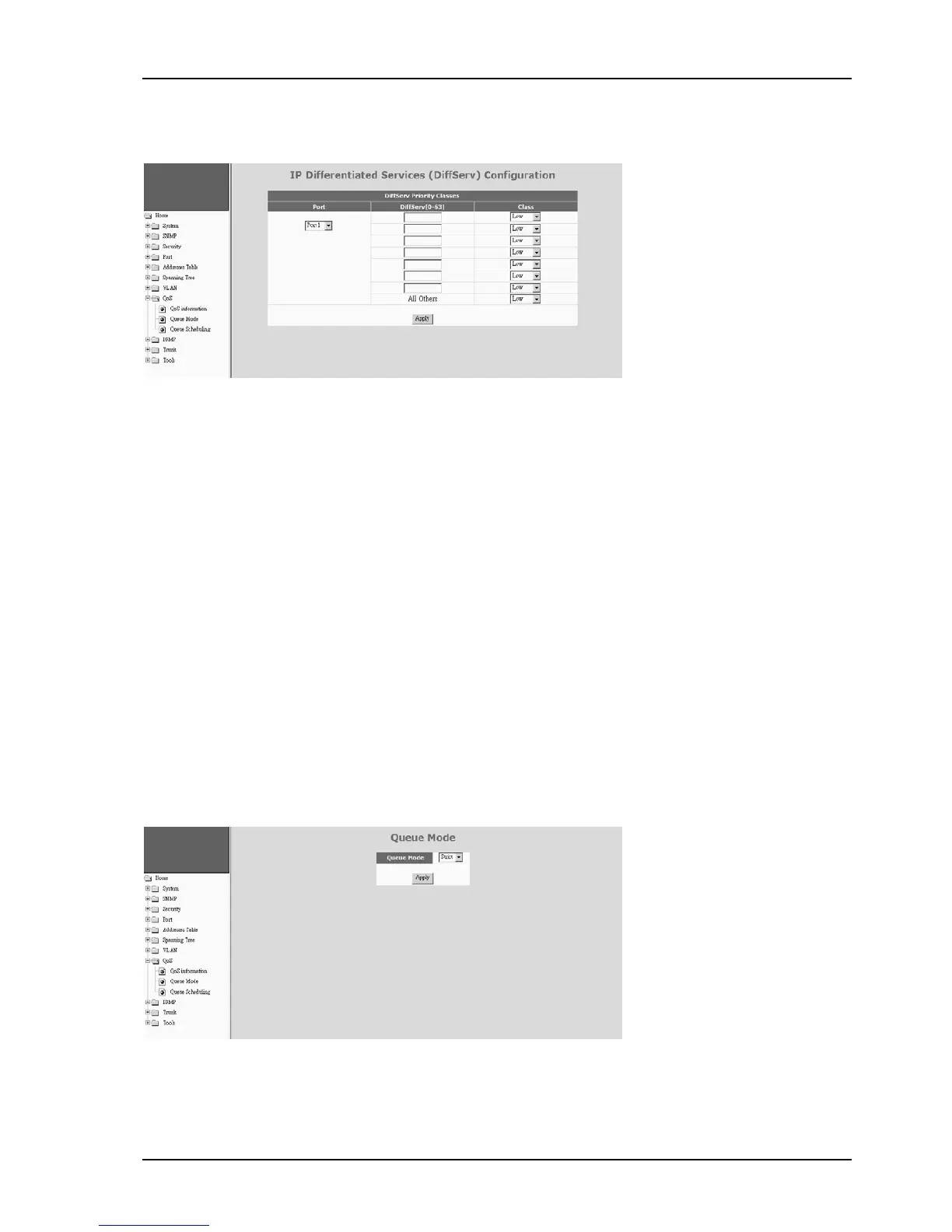

[DiffServ Priority Mapping]
DSCP priority operation will use the priority setting in ToS field of IP packets for QoS operation.
Seven DSCP values (0~63) could be defined and map to priority queues (High
/Middle/Normal/Low).
This mapping is done by port. And “All” could be selected for every port.
If DSCP priority function is enabled, these settings will be followed for QoS operation.
2). Queue Mode
This switch supports Strict Priority and WRR (Weight Round Robin) operation for sending out packets from piority
queues.
