CONNECTIONS
Low Current Connections
Three low current connectors (J1, J2, J3) are built into the 1297 controller. They
are located in a row on the top of the controller:
2 — INSTALLATION & WIRING: Controller
J1 Pin 1 keyswitch input (KSI)
J1 Pin 2 interlock
J1 Pin 3 mode switch input — M1 (open), M2 (closed)
J1 Pin 4 wiper/0–5V input for traction throttle
J1 Pin 5 horn input
J1 Pin 6 emergency reverse input
J1 Pin 7 lowering valve driver output
J1 Pin 8 auxiliary driver output
J1 Pin 9 emergency reverse check output
J1 Pin 10 pot high output
J1 Pin 11 Lift switch input
J1 Pin 12 forward switch input (no multiplexer);
Lift limit switch input (multiplexer)
J1 Pin 13 display data output
J1 Pin 14 [not used]
J1 Pin 15 display ground reference output
J1 Pin 16 display power output
J1 Pin 17 main contactor driver output
J1 Pin 18 load hold valve driver output
J1 Pin 19 horn driver output
J1 Pin 20 electromagnetic brake driver output
J1 Pin 21 wiper/0–5V input for hydraulic throttle
J1 Pin 22 pot low input
J1 Pin 23 Lower switch input
J1 Pin 24 reverse switch input (no multiplexer);
coast switch input (multiplexer)
24 23 22 21 20 19 18 17 16 15 14 13
121110987654321

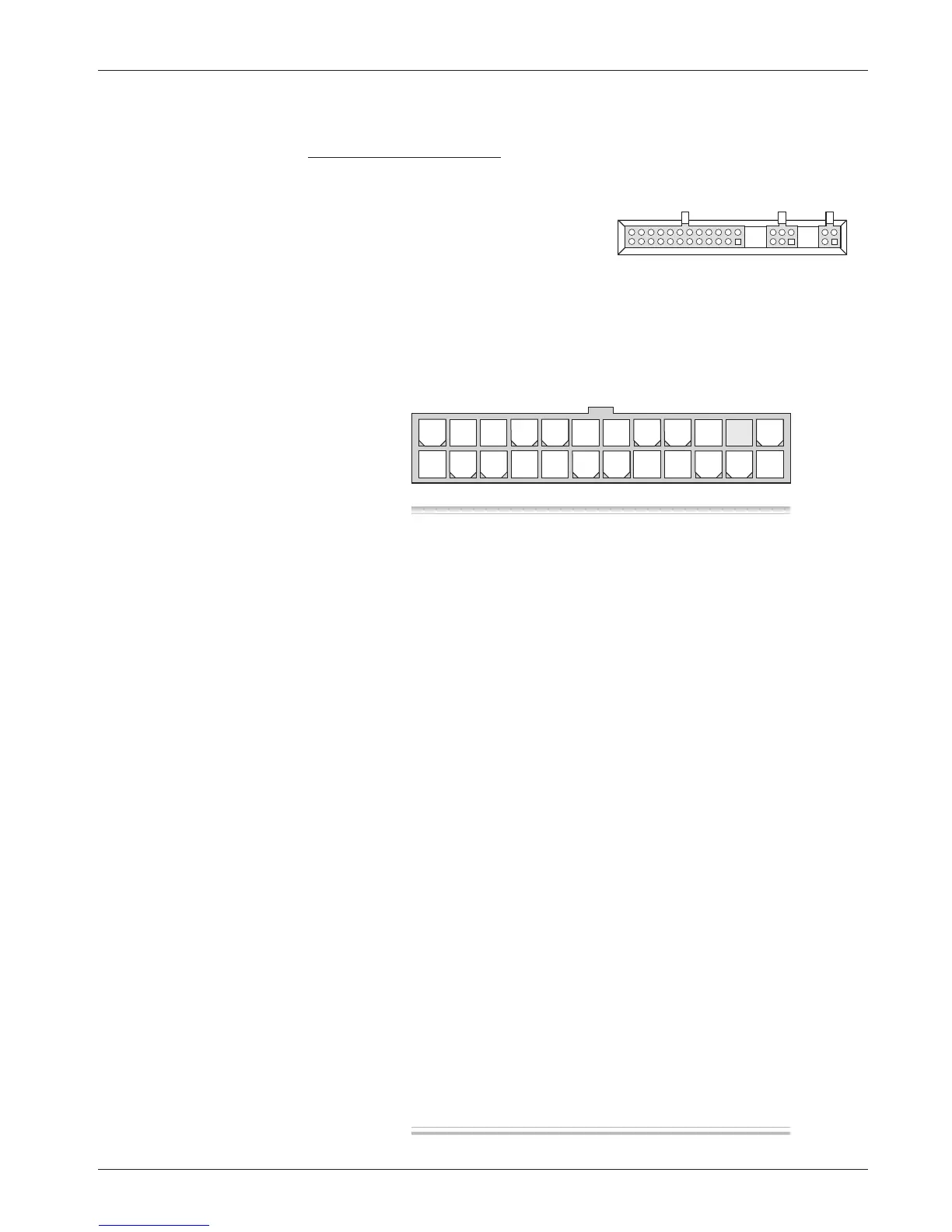

The 24-pin connector (J1) provides the logic control connections for the
contactor drivers and switches that are wired directly to the vehicle. The mating
connector is a 24-pin Molex Mini-Fit Jr. connector part number 39-01-2245
using type 5556 terminals.
24-pin 6-pin 4-pin
J1 J2 J3
J1
