Curtis PMC 1297 Manual iii

12345678901

234567890

12345678901

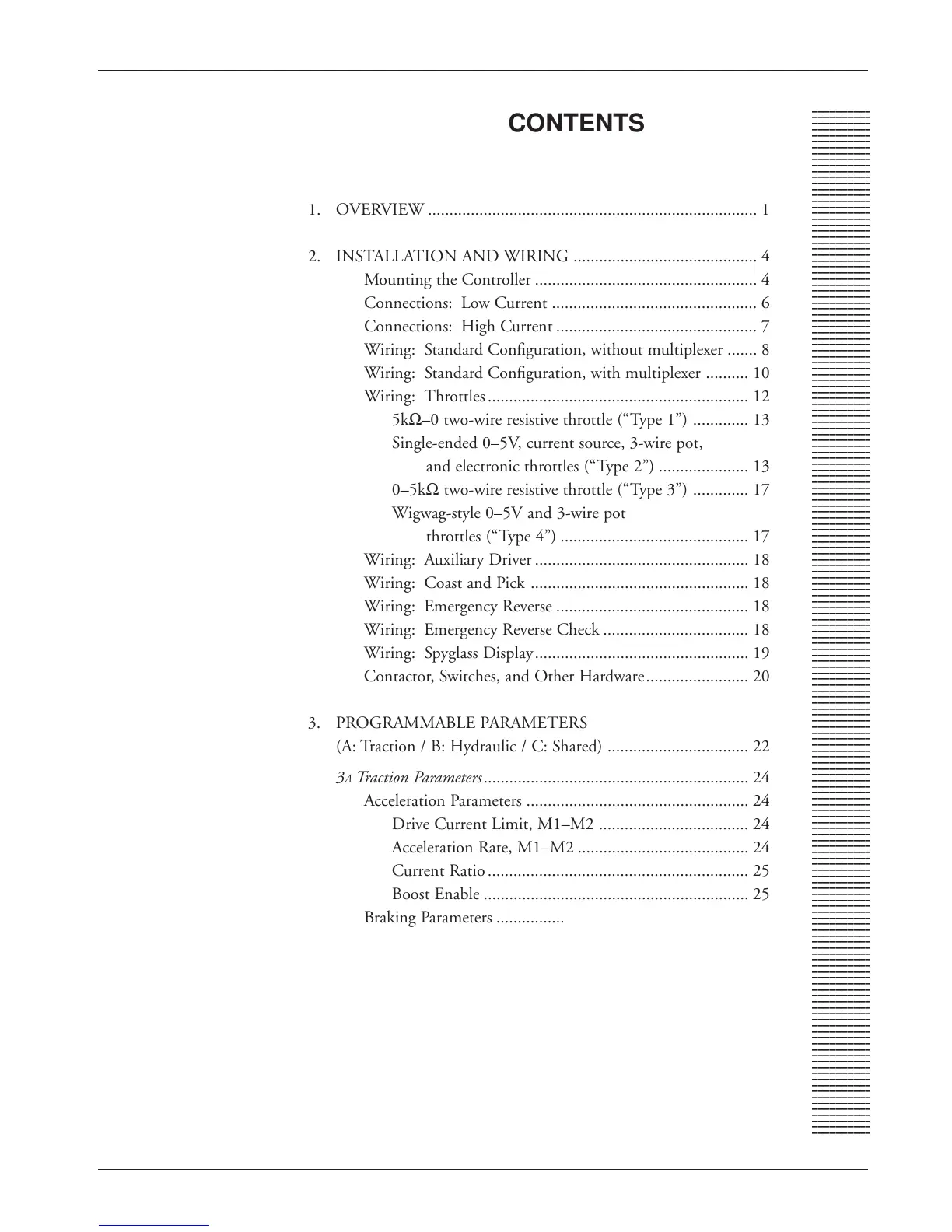

CONTENTS

1. OVERVIEW ............................................................................. 1

2. INSTALLATION AND WIRING ........................................... 4

Mounting the Controller .................................................... 4

Connections: Low Current ................................................ 6

Connections: High Current ............................................... 7

Wiring: Standard Conﬁguration, without multiplexer ....... 8

Wiring: Standard Conﬁguration, with multiplexer .......... 10

Wiring: Throttles............................................................. 12

5kΩ–0 two-wire resistive throttle (“Type 1”) ............. 13

Single-ended 0–5V, current source, 3-wire pot,

and electronic throttles (“Type 2”) ..................... 13

0–5kΩ two-wire resistive throttle (“Type 3”) ............. 17

Wigwag-style 0–5V and 3-wire pot

throttles (“Type 4”) ............................................ 17

Wiring: Auxiliary Driver .................................................. 18

Wiring: Coast and Pick ................................................... 18

Wiring: Emergency Reverse ............................................. 18

Wiring: Emergency Reverse Check .................................. 18

Wiring: Spyglass Display.................................................. 19

Contactor, Switches, and Other Hardware........................ 20

3. PROGRAMMABLE PARAMETERS

(A: Traction / B: Hydraulic / C: Shared) ................................. 22

A Traction Parameters.............................................................. 24

Acceleration Parameters .................................................... 24

Drive Current Limit, M1–M2 ................................... 24

Acceleration Rate, M1–M2 ........................................ 24

Current Ratio............................................................. 25

Boost Enable .............................................................. 25

Braking Parameters ........................................................... 25

Braking Current Limit, M1–M2 ................................ 25

Braking Rate, M1–M2 ............................................... 26

Deceleration Rate, M1–M2 ....................................... 26

Coast Deceleration Rate ............................................. 26

Taper Rate .................................................................. 26

Throttle Deceleration Rate......................................... 26

Interlock Braking Current Limit ................................ 27

Interlock Braking Rate ............................................... 27

Interlock Braking Delay ............................................. 27

CONTENTS
