12. Using the hydraulic throttle, operate the Lift and Lower. They should
accelerate and decelerate smoothly.
13. Verify that the hydraulic inhibit feature performs as desired.
14. If you used a programmer, disconnect it when you have completed the
checkout procedure.
BENCH TESTING WITH A 13XX PROGRAMMER
With the simple bench test setup shown in Figure 26, the controller parameters
can be verified or adjusted without the controller being wired into a vehicle. The
wiring can be expanded to conduct a complete functional test on the bench; if
you want to do this, contact Curtis for further information.
The complete in-vehicle installation checkout, as described in Steps 1–14,
should still be conducted before the vehicle is operated.

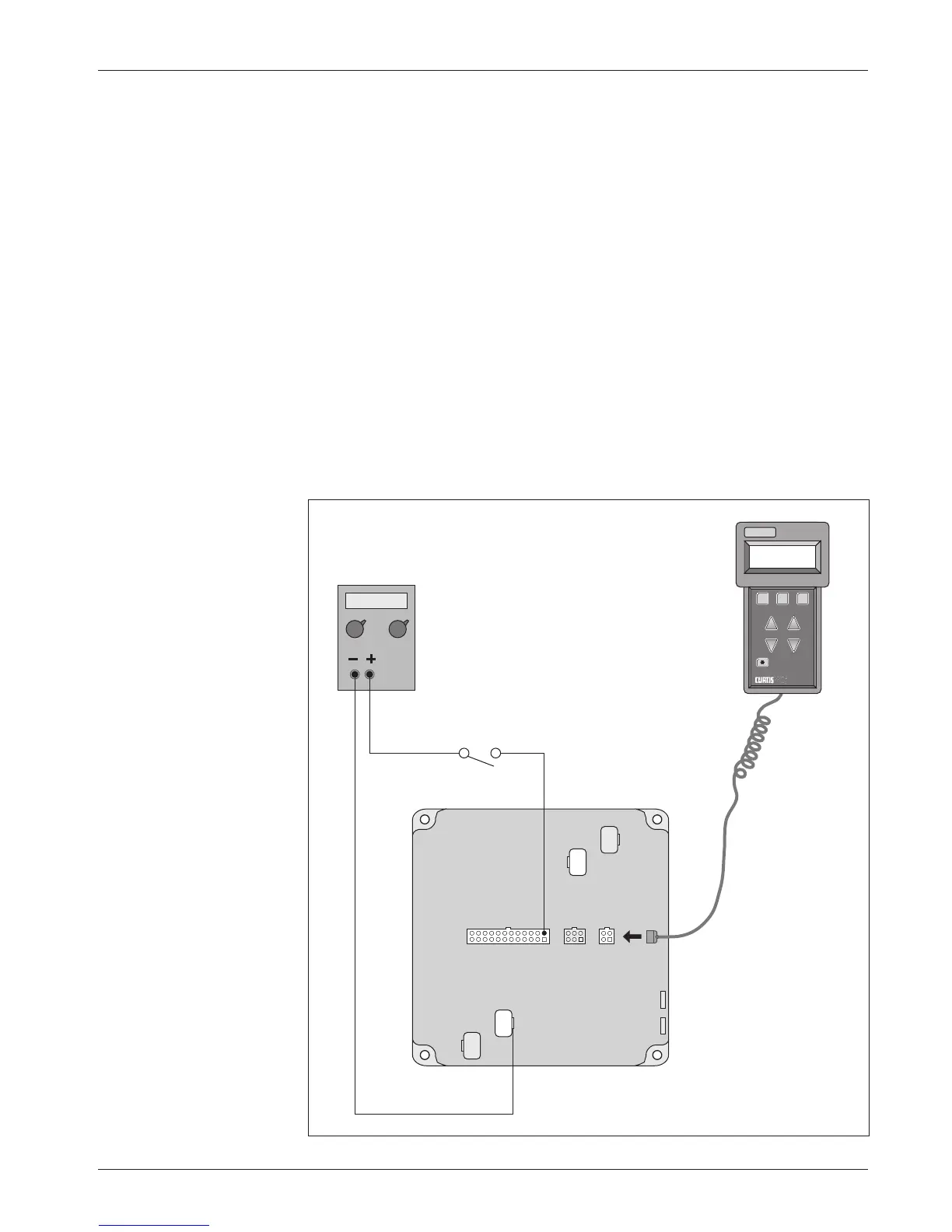

Fig. 26 Bench test setup
for verifying and adjusting
the controller’s parameters.
KEYSWITCH
24 V
POWER
SUPPLY
1307
PROGRAMMER
1297
CONTROLLER
J3
J1
J2
TRACTION
M-
B-
B+
PUMP M-
F2
F1
J1 Pin 1
CURTIS PMC
++++++++++++++++++++
+
+
+
SCROLL
DISPLAY
CHANGE
VALUE
PROGRAM
DIAGNOSTICS
MORE INFO
TEST
+
+
+
4 — INSTALLATION CHECKOUT
