52
The programmer displays the hydraulic throttle deadband parameter as a
percentage of the nominal wiper voltage range and is adjustable from 0% to
40%. The default deadband setting is 10%. The nominal wiper voltage range
depends on the throttle type selected. See Table 1 (page 12) for the character-
istics of your selected throttle type.

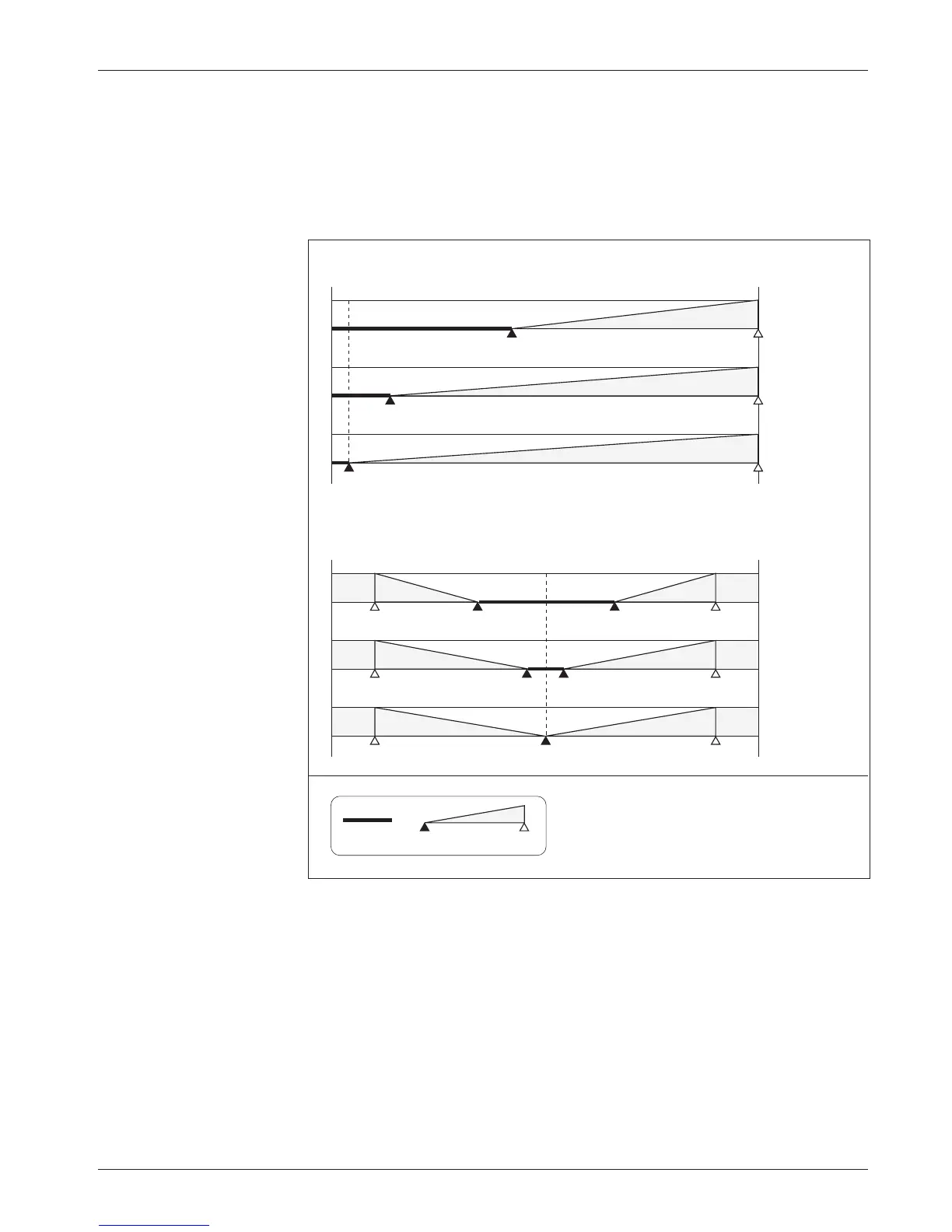

Fig. 21 Effect of
adjusting the hydraulic
throttle deadband
parameter.
3B — PROGRAMMABLE HYDRAULIC PARAMETERS: Hydraulic Throttle
Throttle Type 2 (0–5V, single-ended)
Throttle Type 4 (0–5V, wigwag)
Notes: Voltages shown are at the pot wiper relative to B-.
Hydraulic Throttle Max parameter set at 100%.
5V
0
40% Deadband
10% Deadband
0% Deadband
KEY
100%
Neutral
Deadband
Controller
Output
0%
5V
0
40% Deadband
10% Deadband
0% Deadband
0.2V
0.7V
2.1V
0.5V
2.7V
3.3V
4.5V
4.5V
4.5V
2.5V
0.5V
0.5V
2.3V
1.7V
