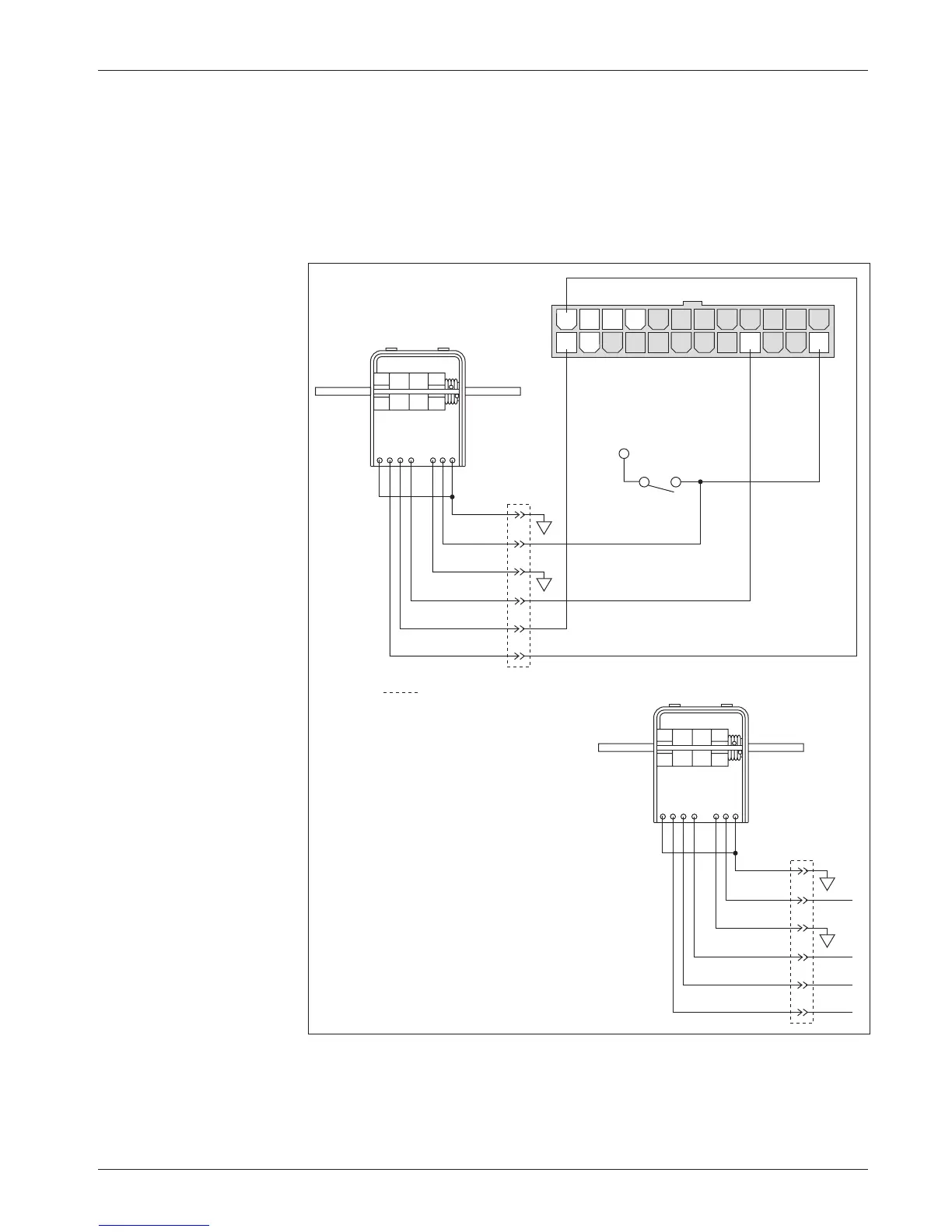

Fig. 9 Wiring for Curtis
ET-XXX electronic throttle
(“Type 2”).
Curtis ET-XXX Electronic Throttle
The Curtis ET-XXX provides a 0–5V throttle input and also Forward/Reverse
inputs (traction throttle) or Lift/Lower inputs (hydraulic throttle) for the 1297
controller. Wiring for the ET-XXX is shown in Figure 9. When an electronic
throttle is used, the Pot Low Check parameter (see Section 3
A, page 40) must
be set to Off; otherwise the controller will register a throttle fault.
There is no fault detection built into the ET-XXX, and the controller will
detect only open wiper faults. It is the responsibility of the OEM to provide any
additional throttle fault detection necessary.
2 — INSTALLATION & WIRING: Throttles
14 1315161718192021222324
121110987654321
GREEN
ORANGE
BLACK
BLACK/WHITE
WHITE
WHT/BRN
B+
KEYSWITCH
connector
WHT/GRN
J1
GREEN
ORANGE
BLACK
BLACK/WHITE
WHITE
WHT/BRN
WHT/GRN
The hydraulic throttle’s GREEN wire is joined
to the green wire of the traction throttle.
The hydraulic throttle’s BLACK wire goes to
Pin 21 (Hyd. 0–5V input), the BLACK/WHITE
wire to Pin 11 (Lift input), and the WHITE wire
to Pin 23 (Lower input).
B-
B-
B-
B-
Reverse input (Pin 24)
KSI
(Pin 1)
0–5V input (Pin 4)
Forward input (Pin 12)
Traction
Throttle
Hydraulic
Throttle
To Next Page
