Cygnus MR4
00 Taximeter User Gu
ide
34
5.5.7
Baud Rate
This option allows t
he speed of the ser
ial comm
unication link to be selected.
The most comm
on setting is 9600.

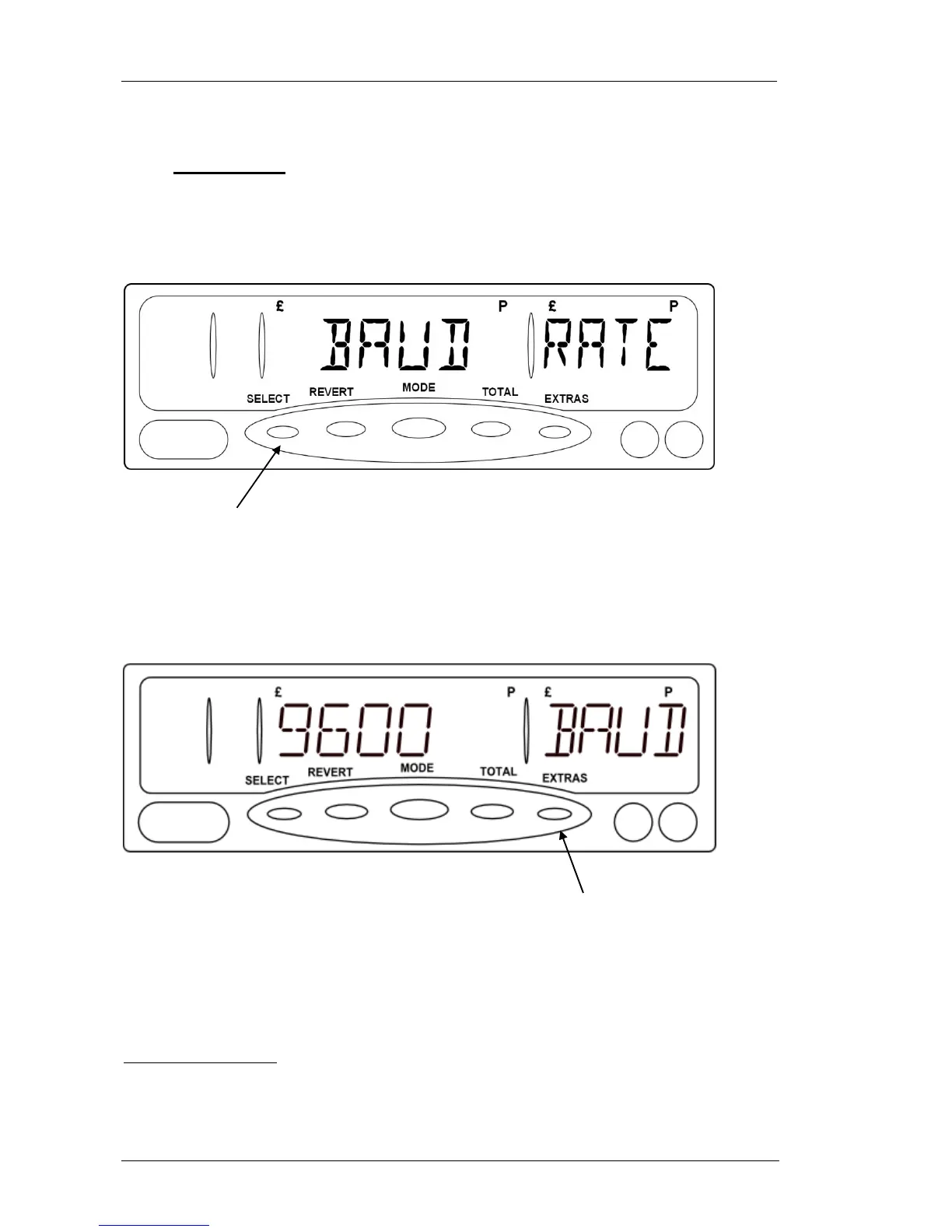

Figure 26: Baud Rate
Press and hold
“SELECT” while
changing the baud
rate setting.
Press “EXTRAS” to
change the setting
between “9600” and
“4800”
