Cygnus MR4
00 Taximeter User Gu
ide
2
2
The MR400 Taximeter

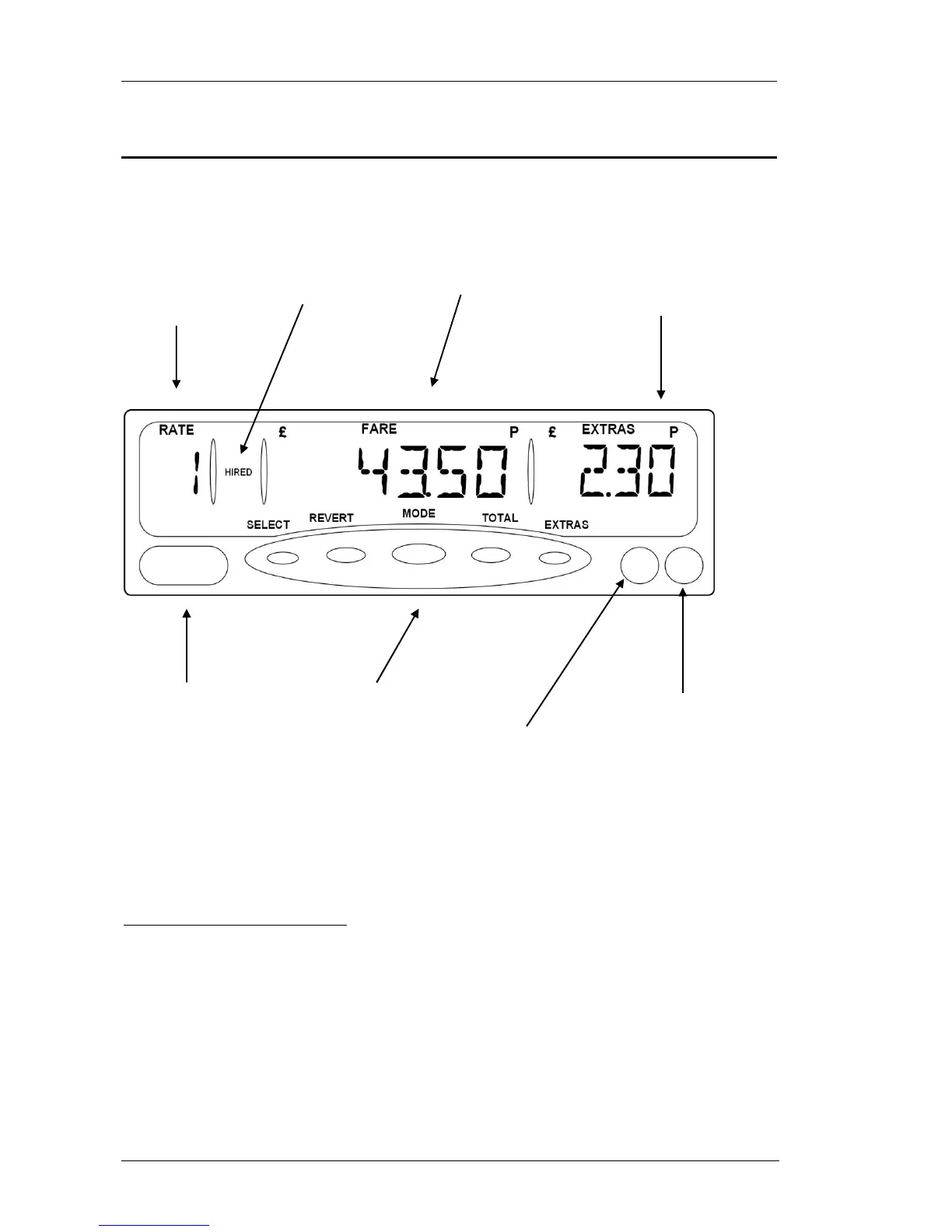

Figure 1: Front Panel Features
Tariff Programming
Connector (Covered
by Seal Retainer)
Seal to prevent
unauthorised
tampering with the
Taximeter
Seal to prevent
unauthorised
removal and
replacement of
the taximeter in
the vehicle.
Mode
Indicator.
Here Showing
that the meter
is in “Hired”
mode.
“Rate
Window”
Used to show
the rate being
charged. Also
used for other
purposes.
“Fare Window”.
Shows the Fare
being charged.
Also used for
other purposes.
Operating Buttons:
SELECT
REVERT
MODE
TOTAL
EXTRAS
“Extras Window”
Shows the Extras
being charged. Also
used for other
purposes.
3
5
Table of Contents
Default Chapter
1
Table of Contents
1
About this Manual
1
1 About this Manual
3
2 The Mr400 Taximeter
4
This Section
5
Applying Power to the Meter
5
The Internal "Battery
5
On" and "Off" Modes - When the Taxi Is Not for Hire
6
FOR HIRE" Mode - for When the Taxi Is for Hire
7
HIRED" Mode - for Charging for Time And/Or Distance
8
STOPPED" Mode - at the End of the Journey
9
Flowchart of the Mr400'S Basic Operations
10
Using the MR400 with a Receipt Printer
11
What Next
12
Flowchart of the Mr400'S Advanced Operations
13
3 Tariffs and Features Which Are Optional
14
Tariffs
14
Tariff Code Number
15
What Does All of this Mean
15
4 Pin Numbers
16
How Are PIN Numbers Formed
16
The Mr400'S Built-In PIN Numbers
16
The "Disable" PIN
16
The "Totals" PIN
17
The Clock Set PIN
17
The "User" PIN
17
Entering a PIN
18
Setting a New PIN
18
5 The Mr400'S "Info" Menu
19
Accessing the "Info" Menu
19
Navigating the "Info" Menu
20
Driver Log On/Log off
21
Time Options
23
Time
23
Date
26
Disable Feature
27
User Options
29
Display Brightness
30
Sounder Setting
31
Automatic Turn off Feature
31
User PIN
33
The User PIN Submenus
34
Comms Options
35
Baud Rate
36
Parity
37
MDT Mode
38
Tariff and Software Information
39
Serial Number
39
Tariff Code
40
Receipt Code
40
Contact Information
41
Software Information Sub-Menu
42
Vehicle Options
43
Calibration
44
Pulse Check
45
Speedometer
46
Speed Alarms
47
Hire Sign Detection
49
Payment Lamp
49
Door Handle Illumination
50
Totals Config
51
Totals System
52
6 Totals and Conditional Access
53
Totals
53
Conditional Access
53
The Totals Systems
53
The Totals Information Stored by the MR400
55
Totals "Banks
56
Reading the Totals
57
Displaying/Printing Journey Summary Information
58
Clearing the Totals
59
Totals Reorganisation
59
7 The Totals/Conditional Access Systems
61
Basic System
61
Log on with Totals PIN
61
8 Other Features
62
Multiple Extras
62
Totalling the Fare and Extras
63
The Time Charging Symbol
64
Progress Indicator
64
Tariff Year" Indicator
65
Tip/Gratuity
65
Rate Selection
66
Movement Warning in STOPPED Mode
66
Real Time Clock ("Calendar Control") Override
67
9 Messages/Glossary
68
