46 EZ-USB Development Kit User Guide, Doc. # 001-66390 Rev. *D
Cypress USB Drivers for EZ-USB Kits

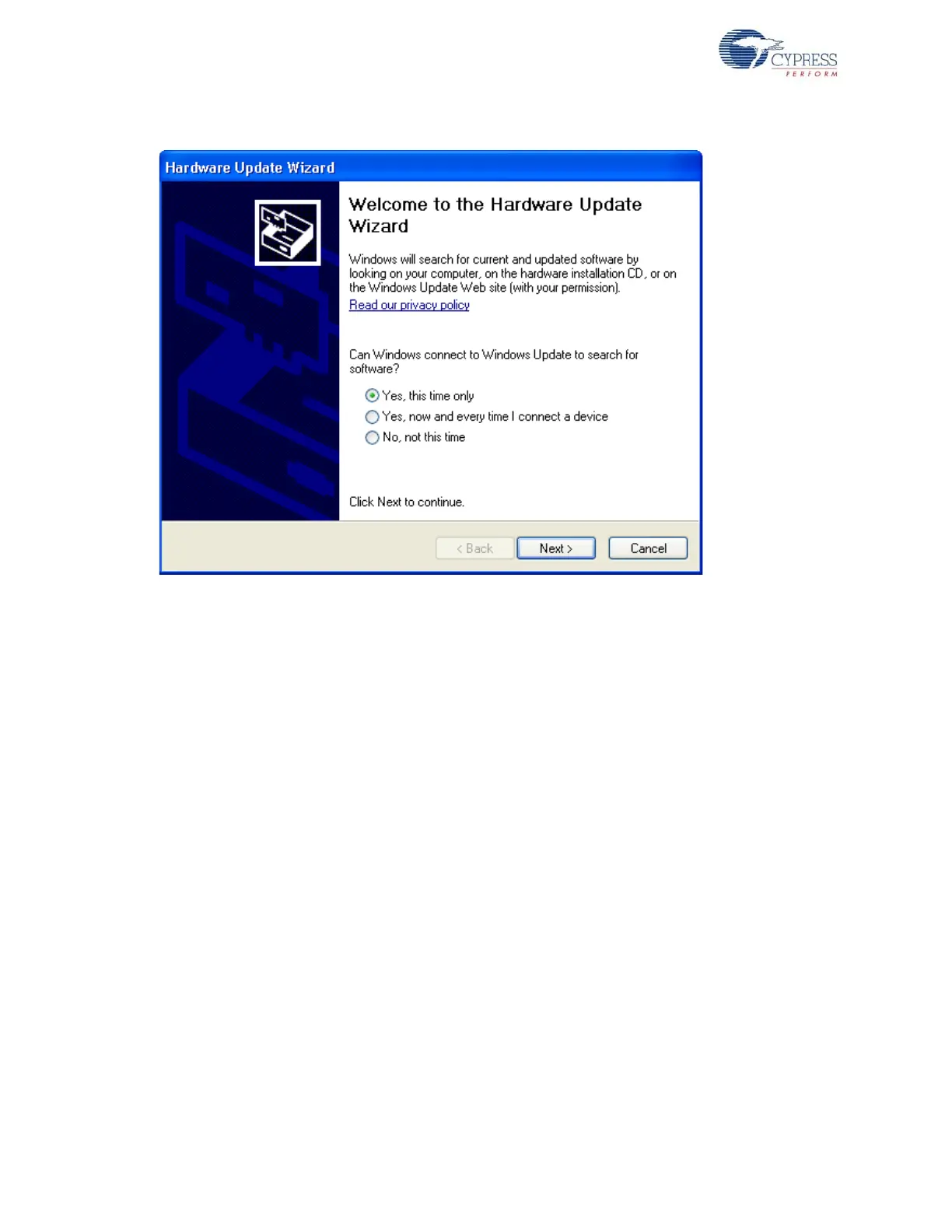

Figure 6-4. Windows Hardware Wizard for Driver Update
7. Select Yes, This time only and click Next. Select Install from a specific location and click
Next.
8. In the subsequent window, select Don't search. I will choose driver to install and select Next.
In the list of Hardware devices, select Universal Serial Bus Controllers and click on Have Disk
button. A new Window pops up for locating the USB driver. Click the Browse button and point to
the following directories for the corresponding Windows PC Host operating system with respect
to <Installed_directory>\<Version>\Drivers\cyusbfx1_fx2lp
a. Windows2000: w2k\x86
b. Windows XP(32-bit): wxp\x86
c. Windows XP(64-bit): wxp\x64
9. The Hardware wizard Window options differ in Windows Vista and Windows 7 OS platforms. If
the hardware wizard window does not pop up, then type devmgmt.msc directly in the vacant box
in Windows Start. Locate the Unknown Device marked in yellow. Right-click on the Unknown
Device and verify in Details > Hardware ID if the VID/PID match the Fuse ROM VID/PID for the
FX1 and FX2LP devices. Then, right-click again on the Unknown Device and select Update
Driver Software. The Windows OS Hardware wizard window will now pop up. If the hardware
wizard window pops up automatically, then the entire process mentioned in this step can be
avoided.
10.Select Browse my computer for driver Software. In the next window, under Browse for the
driver software on your computer, click Browse and select the following directory paths for
Windows Vista and 7 OS:
a. Windows-Vista(32-bit): wlh-vista\x86
b. Windows-Vista(64-bit): wlh-vista\x64
c. Windows-7(32-bit): wlh-win7\x86
d. Windows-7(64-bit): wlh-win7\x64
