82D-Link D-ViewCam User Manual
Section 3 - Conguration

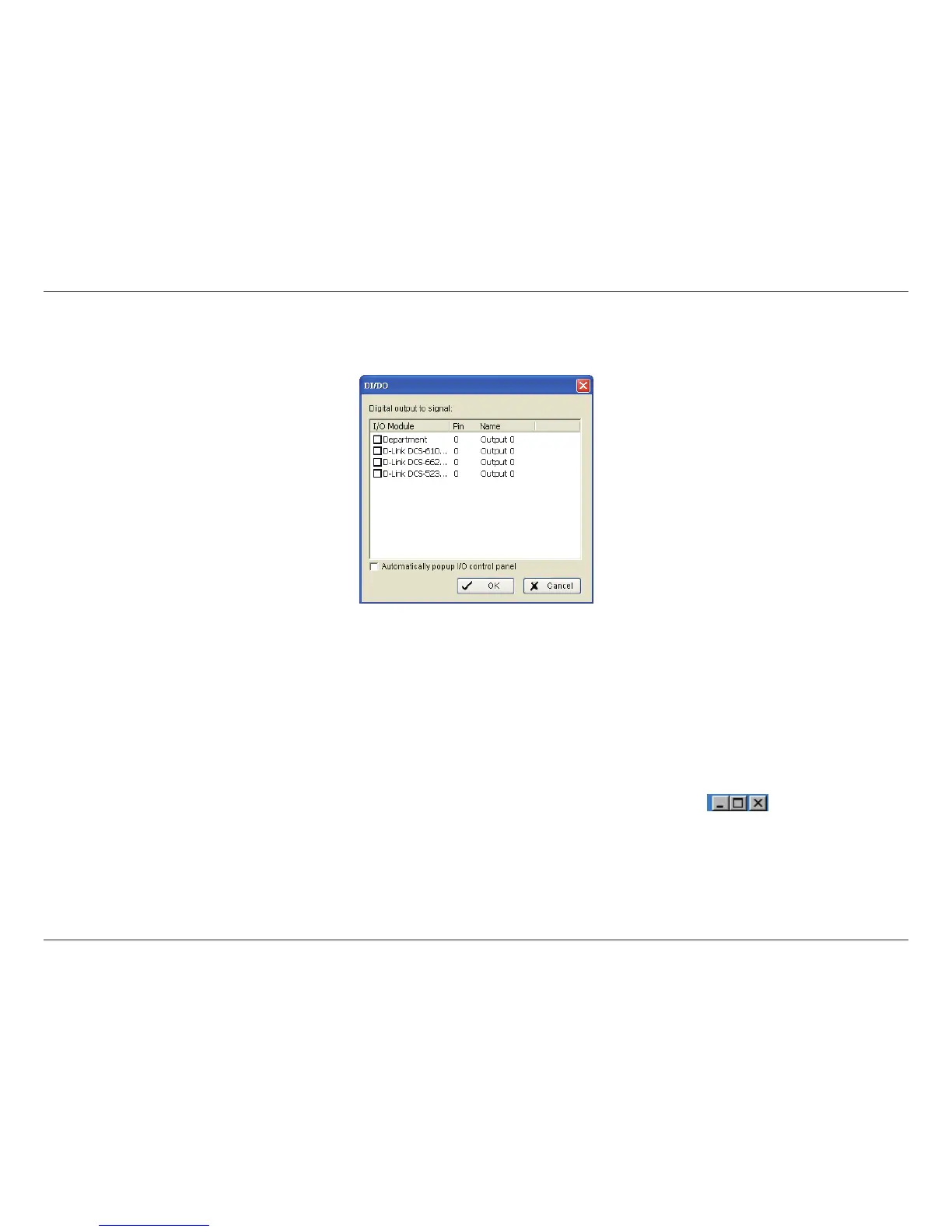

DI/DO
Use to trigger Digital Input/Output devices that are connected to the camera(s), such as alarm lights and sirens.
Step 1: Select the DI/DO action and then click OK.
Step 2: Select Digital Input Module and then click the “DI/DO” indicator to modify the setting.
Step 3: Select the device that is connected to your system, that is, the PC you are working with. You can enable the Automatically popup
I/O control panel check box to obtain the correspondent panel to monitor the I/O status.
You should adjust the setting of I/O device in General Setting and Utilities > Setting > I/O Device rst, the I/O control panel will display
the device status based on it. You can also adjust the size of the panel by dragging a mouse or click the on the right top of the
display window.
