LLDP Management Address Table
The following window is used to make entries to and display the LLDP Management Address Table.
To view this window, click L2 Features > LLDP > LLDP Management Address Table, as shown below:

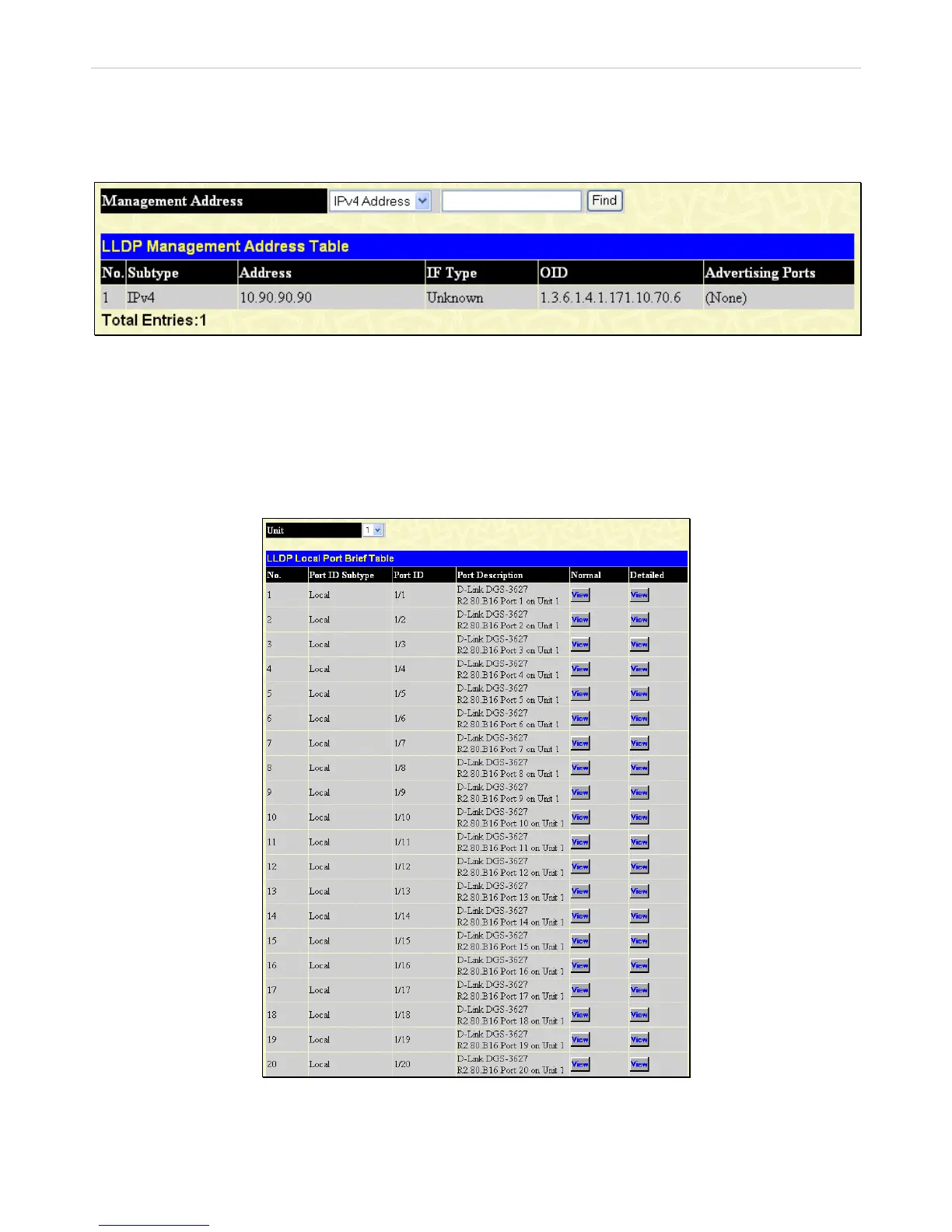

Figure 3- 71. LLDP Management Address Table window
Use the drop-down menu to select the type of Management Address, enter an IP address in the field provided, and then click the
Find button.
LLDP Local Port Table
The following window is used to display the LLDP Local Port Brief Table.
To view this window, click L2 Features > LLDP > LLDP Local Port Table, as shown below:
Figure 3- 72. LLDP Local Port Brief Table window
Click the View button to display additional information about entries on the LLDP Local Port Brief Table.
