xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch
octets in length inclusive (excluding framing bits but including FCS octets).
1024-1518
The total number of packets (including bad packets) received that were between 1024 and
1518 octets in length inclusive (excluding framing bits but including FCS octets).
Show/Hide
Check whether or not to display 64, 65-127, 128-255, 256-511, 512-1023, and 1024-1518
packets received.
Clear
Clicking this button clears all statistics counters on this window.
View Table Clicking this button instructs the Switch to display a table rather than a line graph.
View Line Chart Clicking this button instructs the Switch to display a line graph rather than a table.
Browse Router Port
This displays which of the Switch's ports are currently configured as router ports. A router port configured by a user (using the
console or Web-based management interfaces) is displayed as a static router port, designated by S. D designates a router port that
is dynamically configured by the Switch and a forbidden port is designated by F.
To view this window, click Monitoring > Browse Router Port, as shown below:

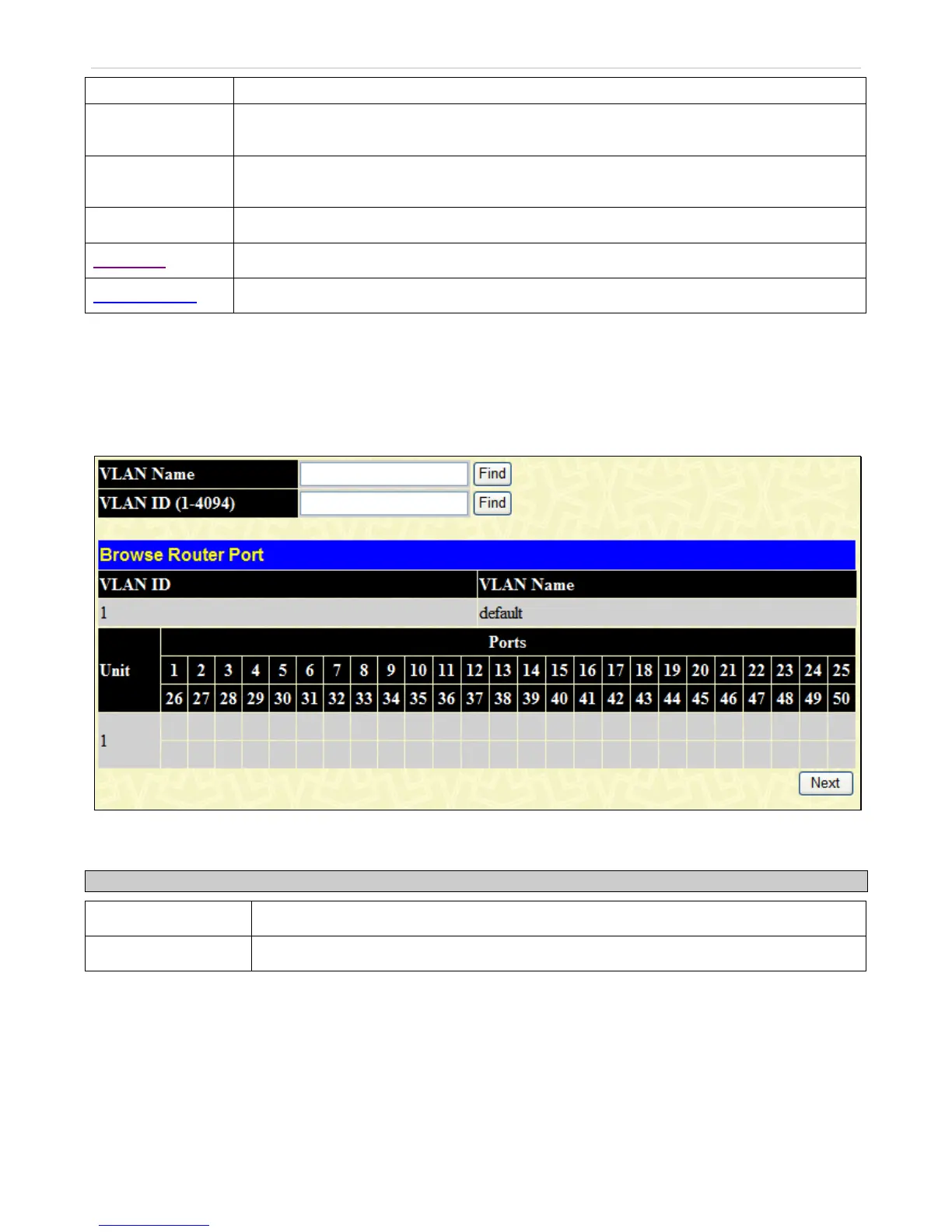

Figure 8- 20. Browse Router Port window
The following fields may be set or viewed:
Parameter Description
VLAN Name
Enter the VLAN name and then click the Find button.
VLAN ID (1-4094)
Enter the VLAN ID and then click the Find button.
432
