MLD Snooping Forwarding
The MLD Snooping Forwarding table displays the current multicast traffic entries that the device has received and which ports it
should be forwarded to.
To view this window, click Monitoring > MLD Snooping Forwarding, as shown below:

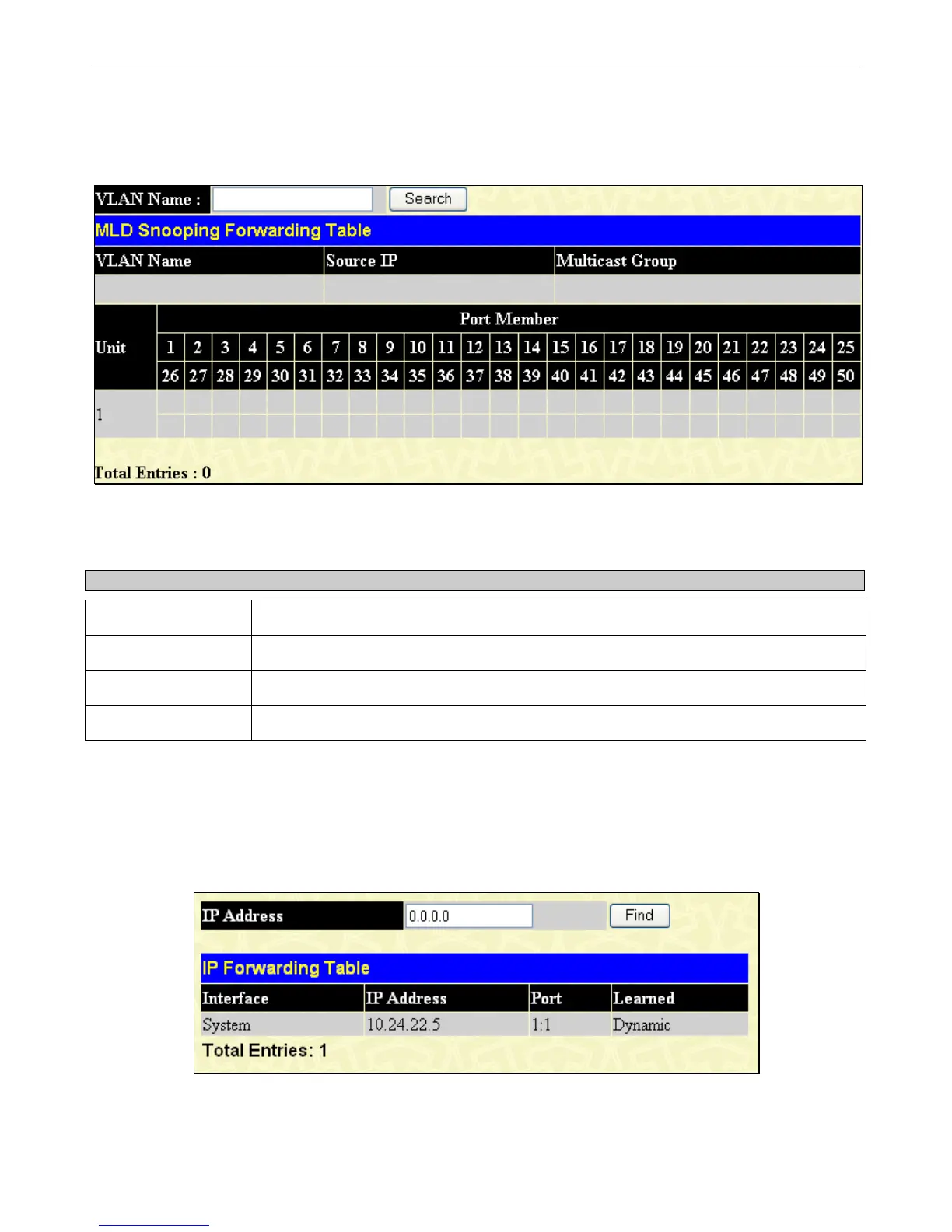

Figure 8- 39. MLD Snooping Forwarding Table window
The user may search the MLD Snooping Forwarding Table by VLAN Name by entering a VLAN name and then clicking Search.
The following field can be viewed:
Parameter Description
VLAN Name
The VLAN Name where multicast packets are being received.
Source IP
The Source IP address that is sending multicast packets.
Multicast Group
The Multicast IP address located in the multicast packet.
Port Member
These are the ports where the IP multicast packets are being forwarded.
IP Forwarding Table
The IP Forwarding Table window is read-only where the user may view IP addresses discovered by the Switch. To search a
specific IP address, enter it into the field labeled IP Address at the top of the window and click Find to begin your search.
The view this window, click Monitoring > IP Forwarding Table, as shown below:
Figure 8- 40. IP Forwarding Table window
