xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch
Cable Diagnostics
This window is used to control the cable diagnostics and determine where and what kind of errors have occurred on the cable.
This function is primarily used for administrators to view tests on copper cables.
To view this window, click Administration > Port Configuration > Cable Diagnostics, as shown below:

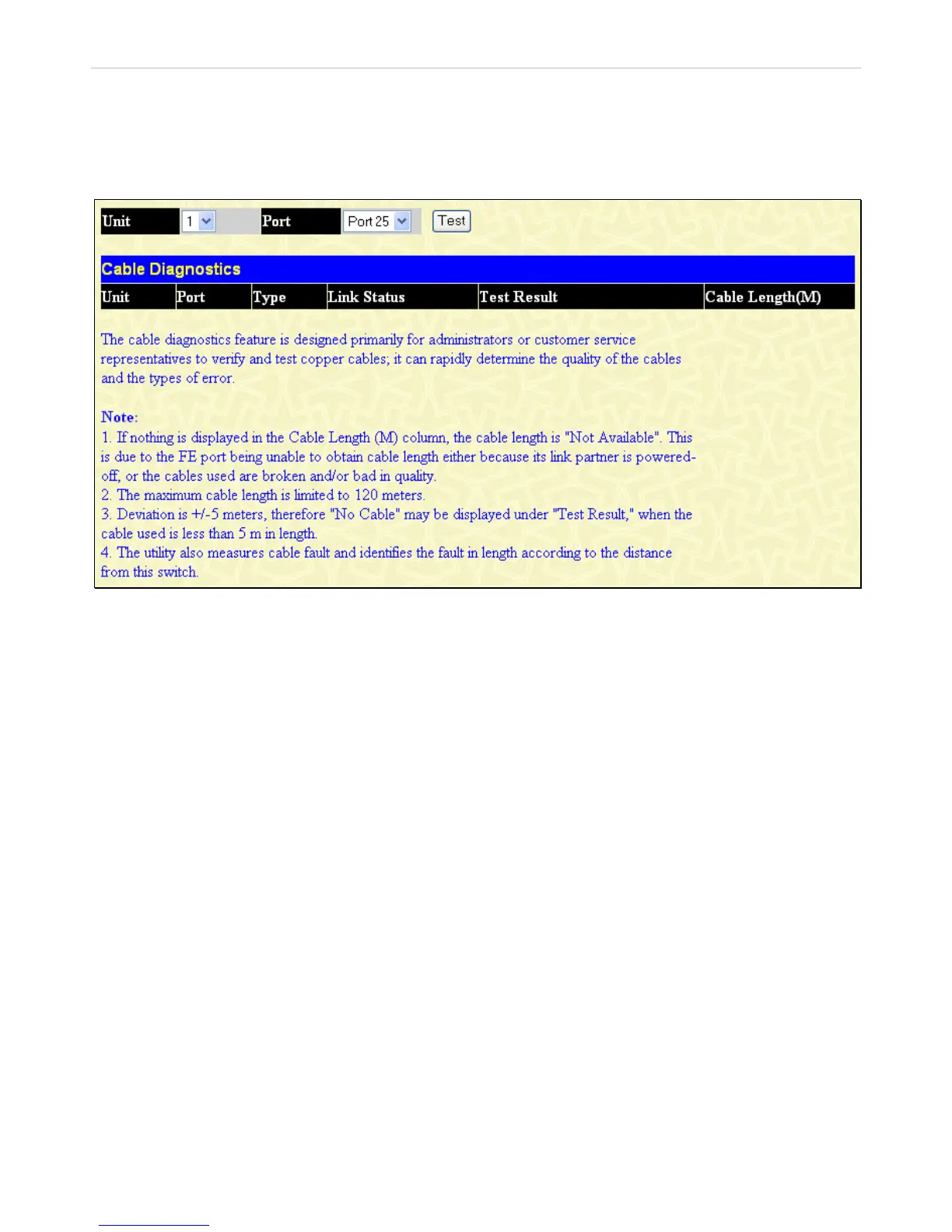

Figure 2- 15. Cable Diagnostics window
21
