DIR-816L Wireless AC750 Dual Band Router & Access Point
with 3G/CDMA/LTE Support and USB Port
User Manual
Configuring Device (Router Mode)
Client
On the Wi-Fi / Client page in the router mode, you can configure the device as a client to connect
to a WISP access point.
The “client” function in the router mode allows using DIR-816L as a WISP repeater.
To use the router as a WISP repeater, you need to configure the same channel of the wireless
connection for DIR-816L and the WISP access point. Other parameters of the wireless network of
DIR-816L do not depend upon the settings of the WISP access point.

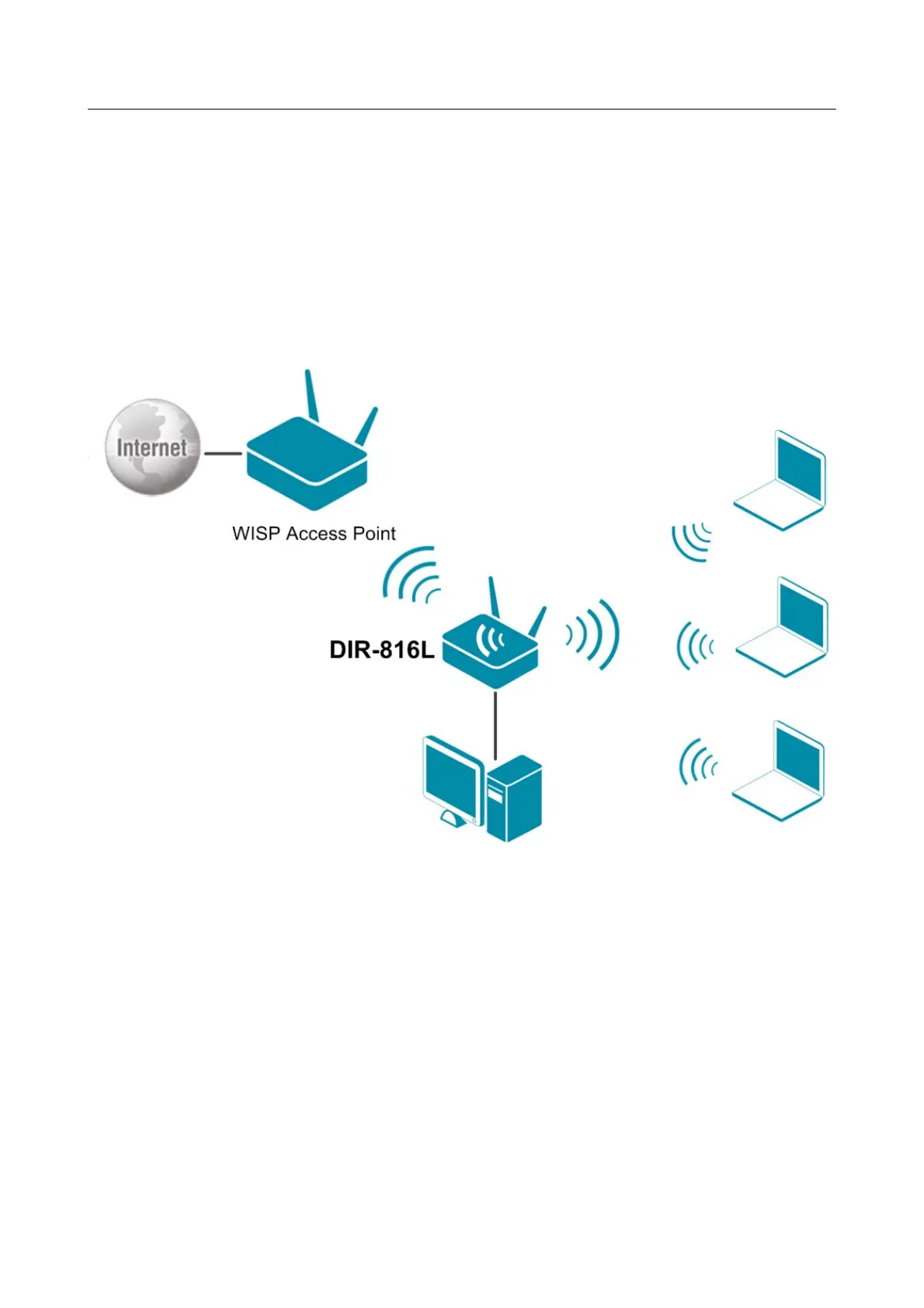

Figure 129. Connecting DIR-816L in the router mode as a client.
After configuring the device as a client, you need to create a WAN connection with relevant
parameters for the WiFiClient interface.
Page 161 of 304
