D-Link DIR-816L User Manual

DIR-816L Wireless AC750 Dual Band Router & Access Point
with 3G/CDMA/LTE Support and USB Port
User Manual
Configuring Device (Access Point Mode)
Print Server
On the USB storage / Print-server page, you can configure the router as a print server. Being
configured in this way, the router will allow your LAN users to share the printer connected to the
USB port of the router.
To connect a printer to the router, power off both devices. Connect printer to the USB port of the
router, power on the printer, then power on the router.

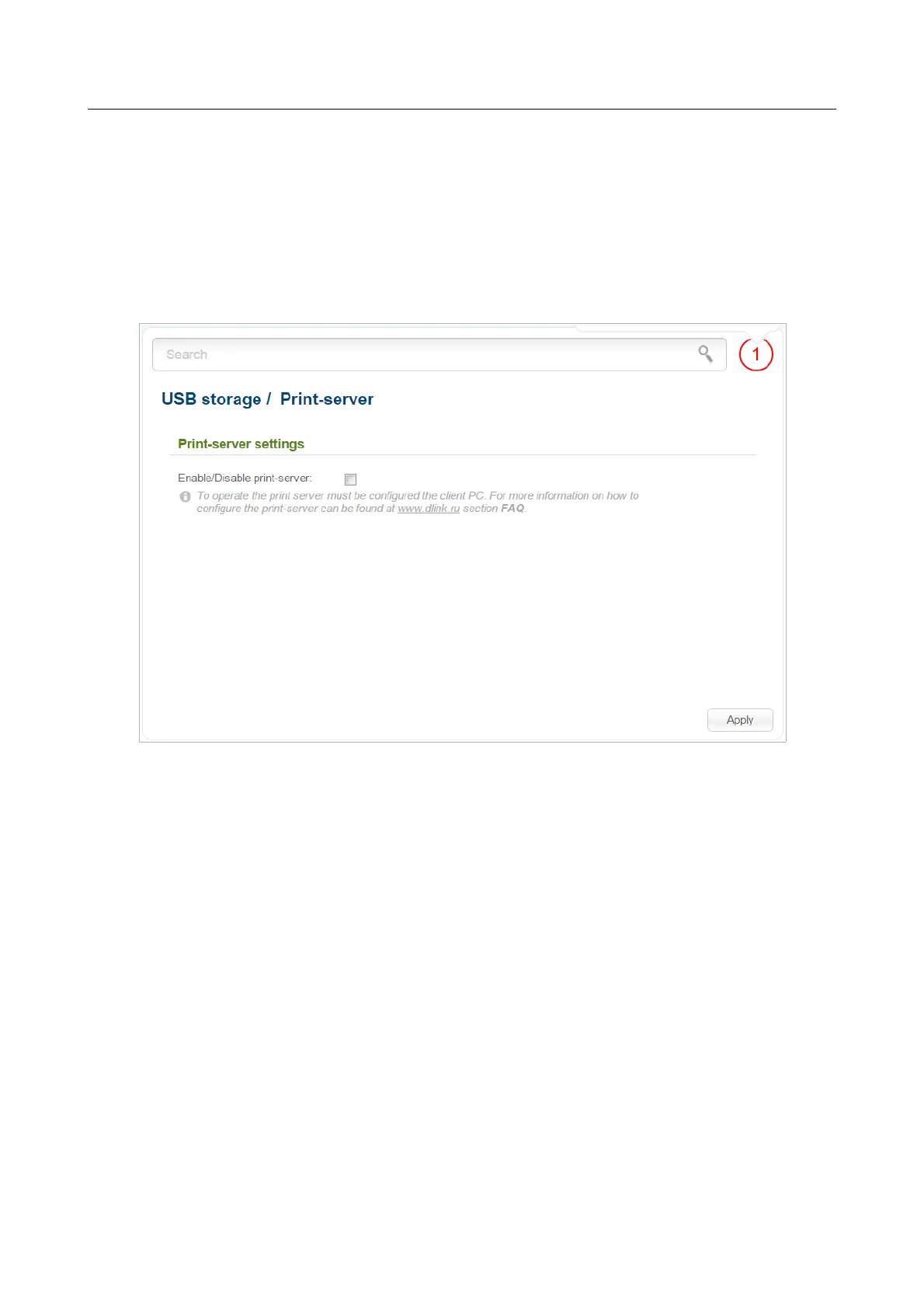

Figure 216. The USB storage / Print-server page.
To configure the router as a print server, select the Enable/Disable print-server checkbox and
click the Apply button.
If you don't want to use the router as a print server, deselect the Enable/Disable print-server
checkbox and click the Apply button.
Page 278 of 304

D-Link DIR-816L Specifications

General

VPN support	Multi-sessions PPtP / l2tP / iPsec
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
USB version	2.0
Rack mounting	No
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Antennas quantity	2
Security algorithms	WPA, WPA2, WPS
Product color	Black

Weight and Dimensions

Depth	112 mm
Width	151.6 mm
Height	30.5 mm
Weight	204 g
