DIR-816L Wireless AC750 Dual Band Router & Access Point
with 3G/CDMA/LTE Support and USB Port
User Manual
Configuring Device (Router Mode)
Net
In this menu you can configure basic parameters of the router's local area network and configure
connection to the Internet (a WAN connection).
WAN
On the Net / WAN page, you can create and edit connections used by the router.
By default, a Dynamic IP connection is configured in the system. It is assigned to the WAN port of
the router. You can edit this connection or delete it.

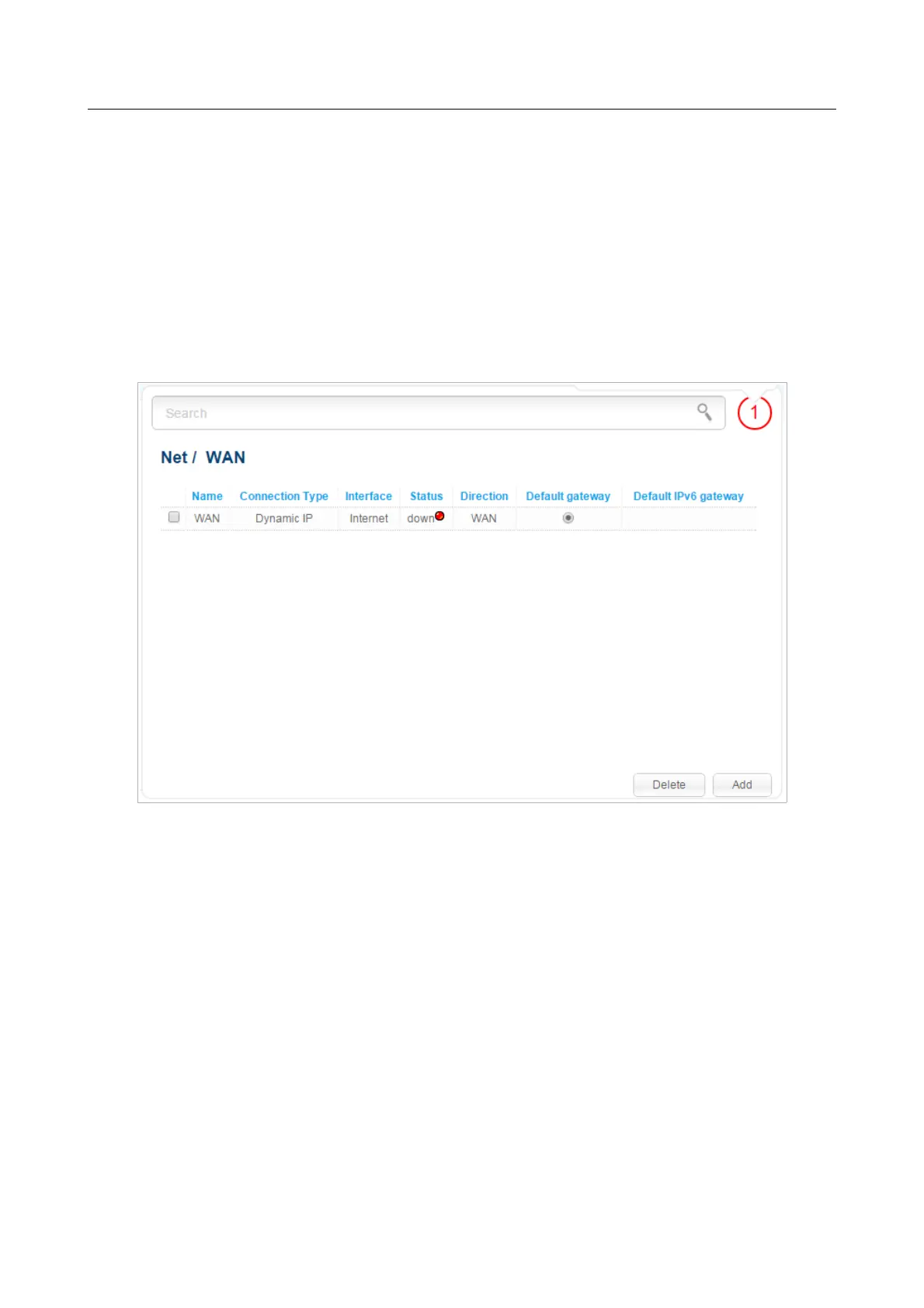

Figure 70. The Net / WAN page.
To create a new connection, click the Add button. On the page displayed, select the needed value
from the Connection Type drop-down list and specify the relevant values.
To edit an existing connection, left-click the relevant line in the table. On the page displayed,
change the parameters and click the Apply button.
To remove a connection, select the checkbox located to the left of the relevant line in the table and
click the Delete button. Also you can remove a connection on the editing page.
To use one of existing WAN connections as a default IPv4 gateway, select the choice of the Default
gateway radio button located in the line corresponding to this connection.
To use one of existing WAN connections as a default IPv6 gateway, select the choice of the Default
IPv6 gateway radio button located in the line corresponding to this connection.
