DIR-816L Wireless AC750 Dual Band Router & Access Point
with 3G/CDMA/LTE Support and USB Port
User Manual
Configuring Device (Router Mode)
VLAN
On the Advanced / VLAN page, you can create and edit groups of ports for virtual networks
(VLANs).
By default, 2 groups are created in the router's system:
• lan: it includes ports 1-4. You cannot delete this group.
• wan: for the WAN interface; it includes the INTERNET port. You can edit or delete this
group.

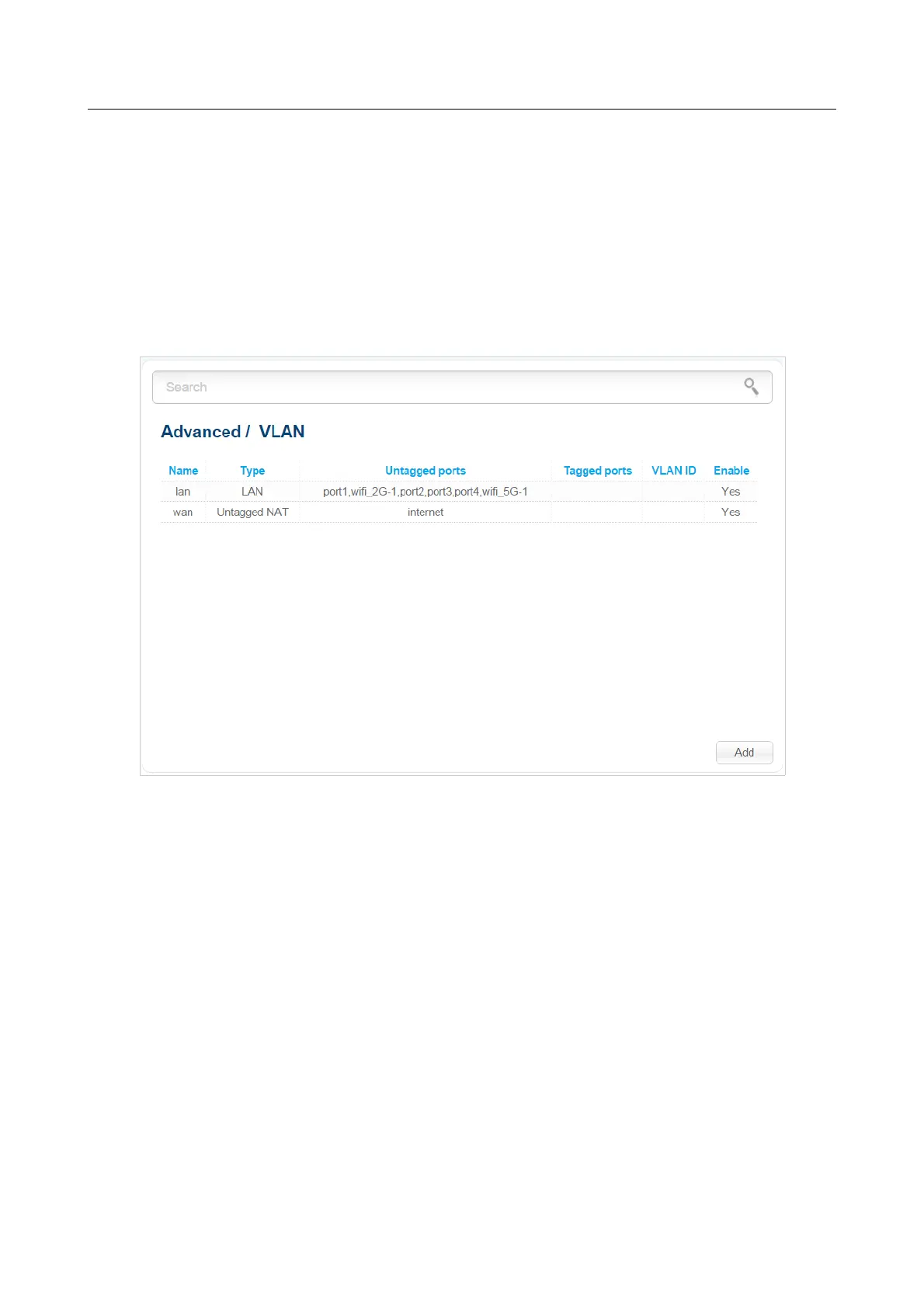

Figure 131. The Advanced / VLAN page.
If you want to create a group including LAN ports of the router, first delete relevant records from
the lan group on this page. To do this, select the lan group, deselect the needed checkbox located to
the left of the relevant port, and click the Apply button.
To create a new group for VLAN, click the Add button.
Page 166 of 304
