Configuring Device (Router Mode)

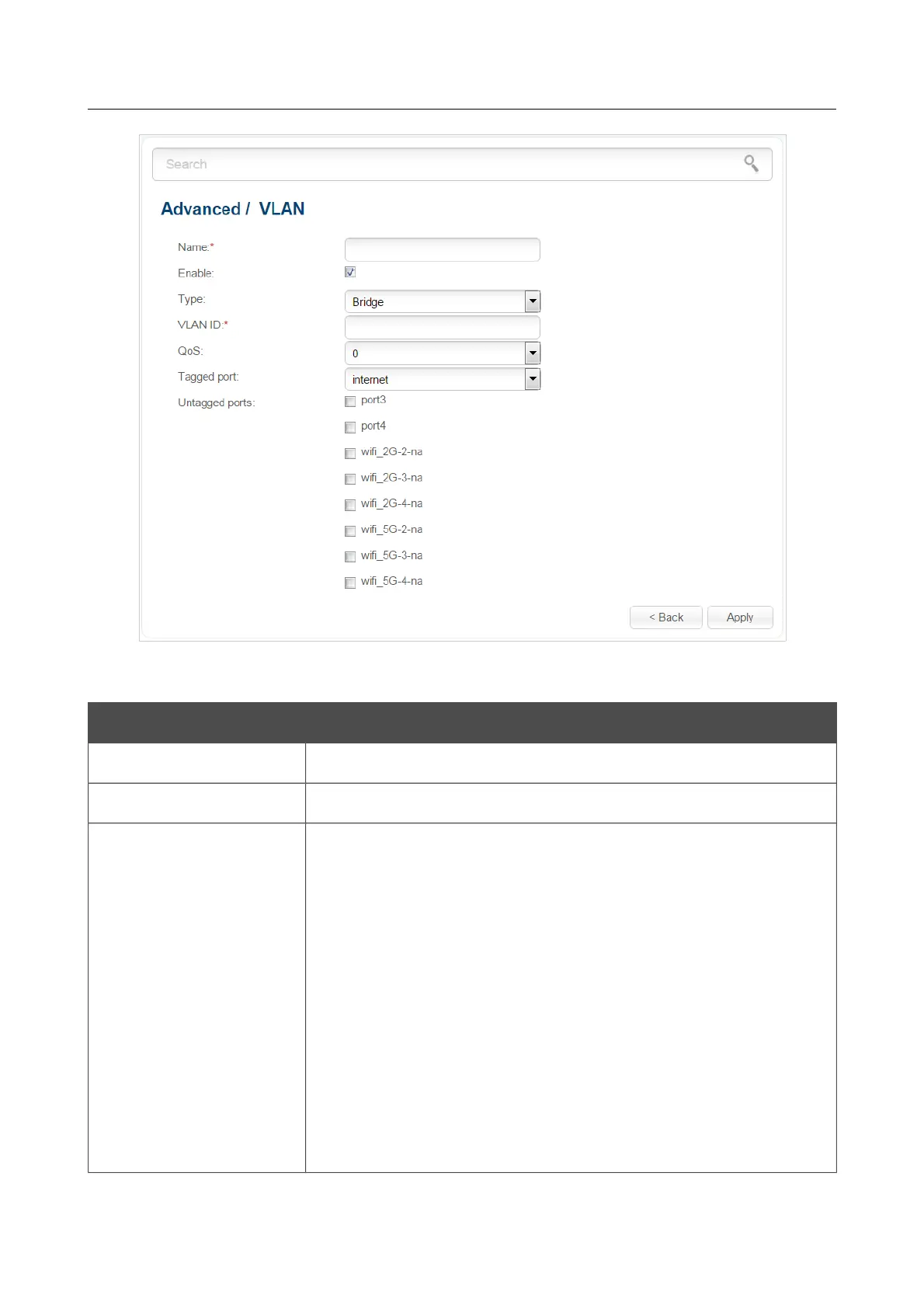

Figure 132. The page for adding a group of ports for VLAN.
You can specify the following parameters:
Parameter Description
Name A name for the port for easier identification.
Enable
Select the checkbox to allow using this group of ports.
Type
The type of the VLAN.
Untagged NAT. The group of this type is an external connection
with address translation. It is mostly used to transmit untagged
traffic. When this value is selected, the VLAN ID field and the
QOS, Tagged port drop-down lists are not displayed.
Tagged NAT. The group of this type is an external connection with
address translation. It is mostly used to connect to the Internet. Later
the VLAN which identifier is specified in the VLAN ID field is used
to create a WAN connection (on the Net / WAN page). When this
value is selected, the Untagged ports section is not displayed.
Bridge. The group of this type is a transparent connection between
an internal port and an external connection. It is mostly used to
connect IPTV set-top boxes.
