D-Link DIR-816L User Manual

DIR-816L Wireless AC750 Dual Band Router & Access Point
with 3G/CDMA/LTE Support and USB Port
User Manual
Installation and Connection
Access Point Mode

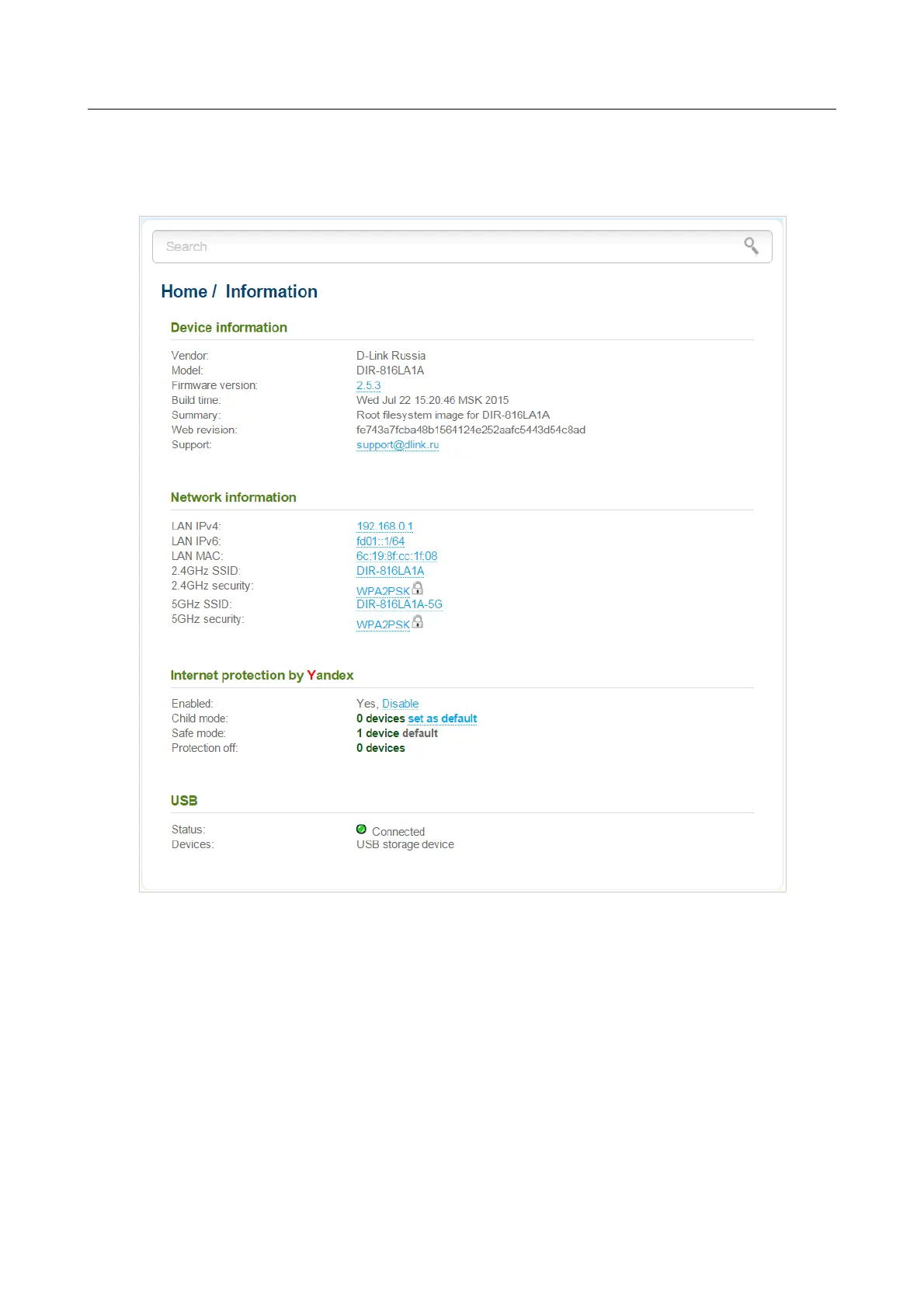

The Home / Information page displays general information on the router and its software.
Figure 21. The general information page in the access point mode.
From the page you can quickly get to some pages of the web-based interface.
To upgrade the firmware of the router, left-click the current firmware version (the right column of
the Firmware version line) and follow the dialog box appeared.
To contact the technical support group (to send an e-mail), left-click the support e-mail address (the
right column of the Support line). After clicking the line, the e-mail client window for sending a
new letter to the specified address opens.
To edit the router's local interface parameters, left-click the IPv4, IPv6, or MAC address of the local
interface (the right column of the lines LAN IPv4, LAN IPv6, or LAN MAC correspondingly).
After clicking the line, the page for editing the LAN interface opens (for the detailed description of
the page, see the LAN section, page 246).
Page 38 of 304

D-Link DIR-816L Specifications

General

VPN support	Multi-sessions PPtP / l2tP / iPsec
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
USB version	2.0
Rack mounting	No
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Antennas quantity	2
Security algorithms	WPA, WPA2, WPS
Product color	Black

Weight and Dimensions

Depth	112 mm
Width	151.6 mm
Height	30.5 mm
Weight	204 g
