DIR-816L Wireless AC750 Dual Band Router & Access Point
with 3G/CDMA/LTE Support and USB Port
User Manual
Configuring Device (Access Point Mode)
Client
On the Wi-Fi / Client page in the access point mode, you can configure the device as a client to
connect to a wireless access point.
The “client” function in the access point mode allows using DIR-816L as a wireless client and a
wireless repeater.
To use the router as a wireless repeater, you need to configure the same parameters of the wireless
connection (the name of the wireless network, encryption parameters, and the channel) for DIR-
816L and the remote access point.
To use the router as a wireless client, you need to configure the same channel of the wireless
connection for DIR-816L and the remote access point. Other parameters of the wireless network of
DIR-816L do not depend upon the settings of the remote access point.

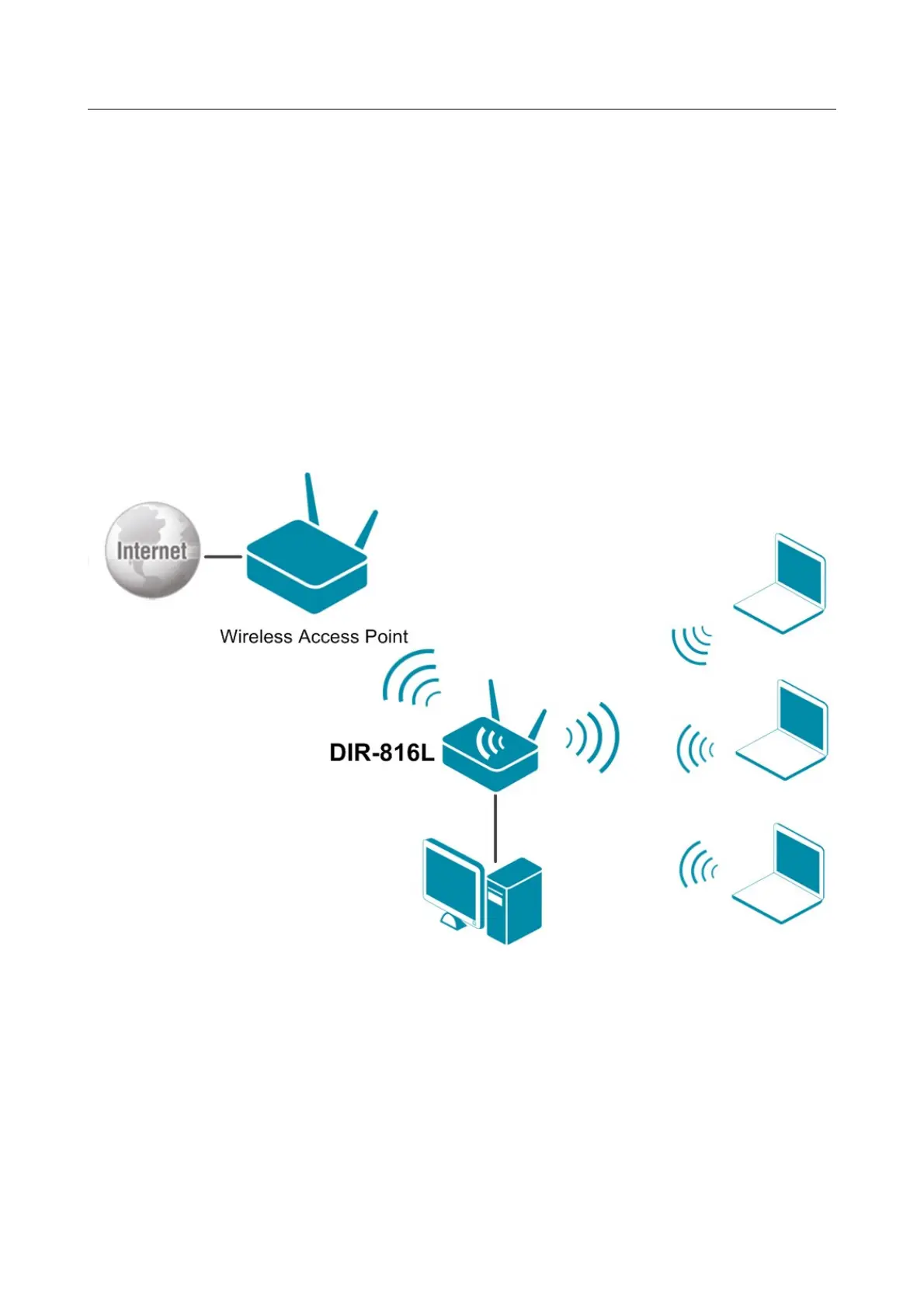

Figure 212. Connecting DIR-816L in the access point mode as a client.
To allow the devices from the LAN of DIR-816L to obtain the IP addresses from the DHCP server
of the remote access point or network, it is necessary to disable the built-in DHCP server of the
device. To do this, proceed to the Net / LAN page; then in the DHCP server section, in the Mode
drop-down list, select the Disable value and click the Apply button.
Page 272 of 304
