DIR-816L Wireless AC750 Dual Band Router & Access Point
with 3G/CDMA/LTE Support and USB Port
User Manual
Overview
Back and Bottom Panels

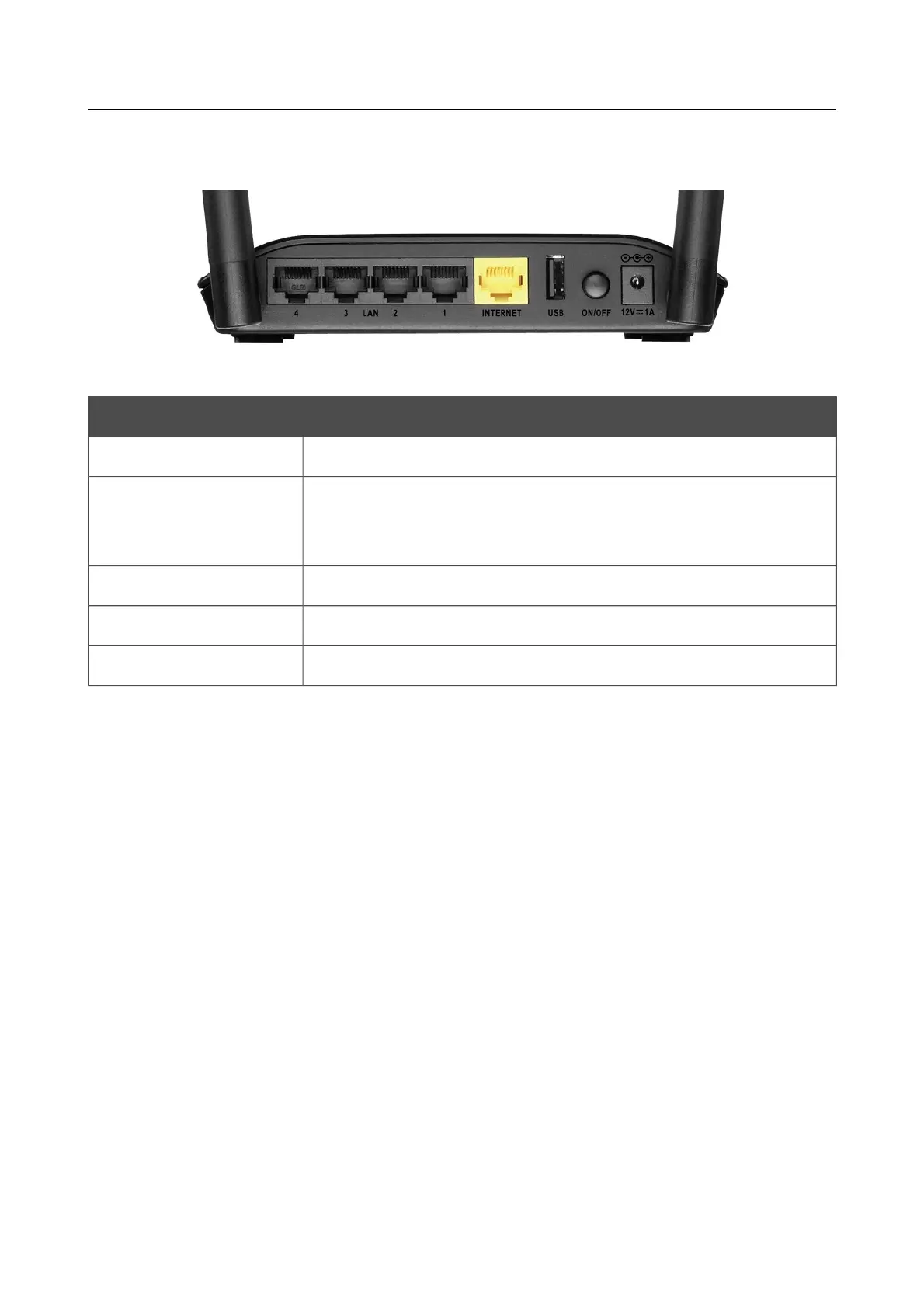

Figure 3. Back panel view.
Port Description
LAN 1-4
4 Ethernet ports to connect computers or network devices.
INTERNET
A port to connect to a cable or DSL modem or to a private Ethernet
line (it is recommended to use the cable included in the delivery
package).
USB
A port for connecting a USB device (modem, storage, printer).
ON/OFF
A button to turn the router on/off.
12V=1A
Power connector.
The RESET button located on the bottom panel of the router is designed to restore the factory
default settings. To restore the factory defaults, push the button (with the device turned on), hold it
for 10 seconds, and then release the button.
The device is also equipped with two external Wi-Fi antennas.
