47D-Link M30 AX3000 Dual-Band Wi-Fi 6 Router User Manual
Section 3 - Conguration

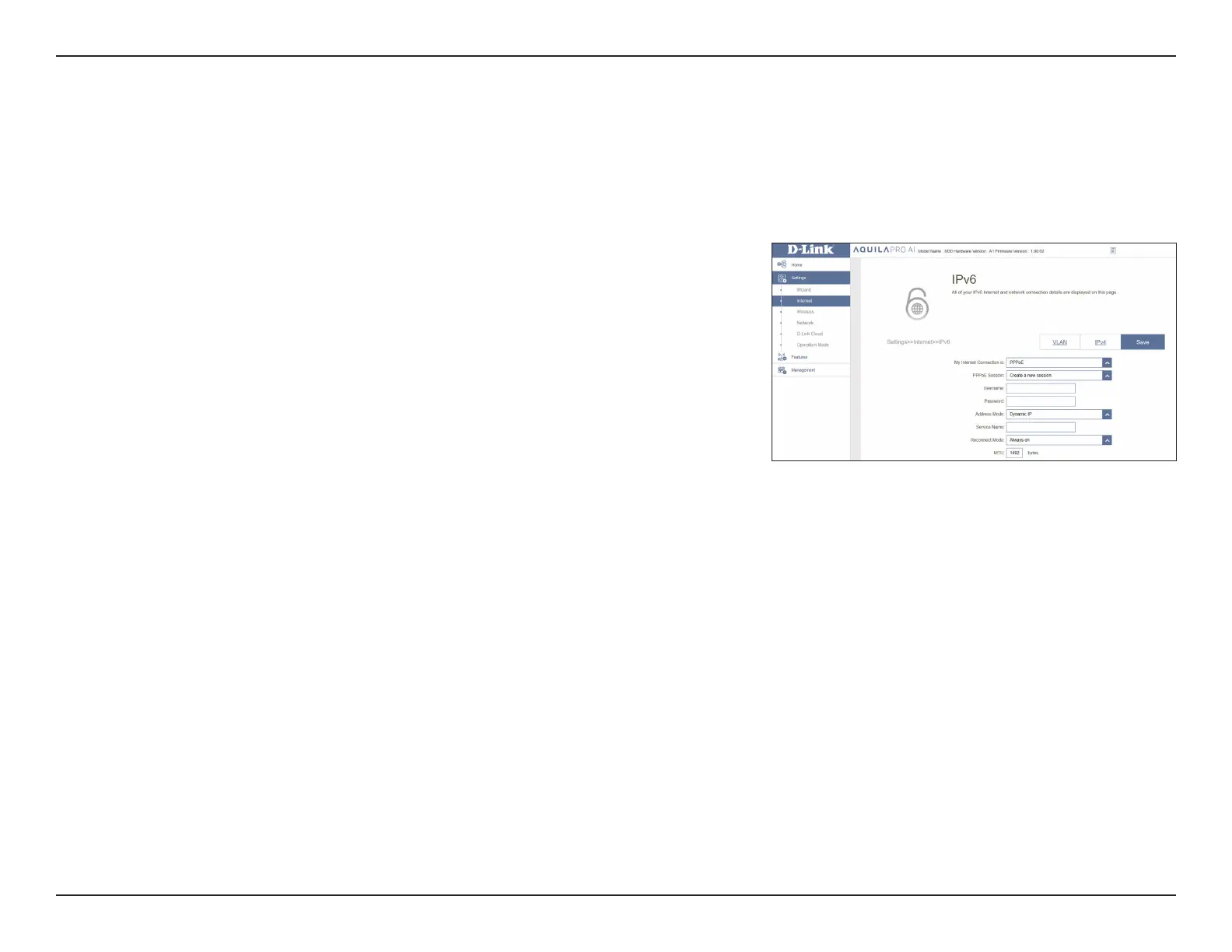

IPv6 - PPPoE
Select PPPoE if your ISP provides and requires you to enter a PPPoE username and password in order to connect to the
Internet. Click Save at any time to save the changes you have made on this page.
PPPoE Session: Select Create a new session to start a new PPPoE session.
Username: Enter the username provided by your ISP.
Password: Enter the password provided by your ISP.
Address Mode: Select Static IP if your ISP assigned you an IP address. In most cases,
select Dynamic IP.
IP Address: If you select Static IP as the Address Mode, enter the IP address
provided by your ISP.
Service Name: Enter the ISP service name (optional).
Reconnect Mode: Select either Always On or Manual.
MTU: The default Maximum Transmission Unit is 1492- you may need to
change the MTU for optimal performance with your ISP.
