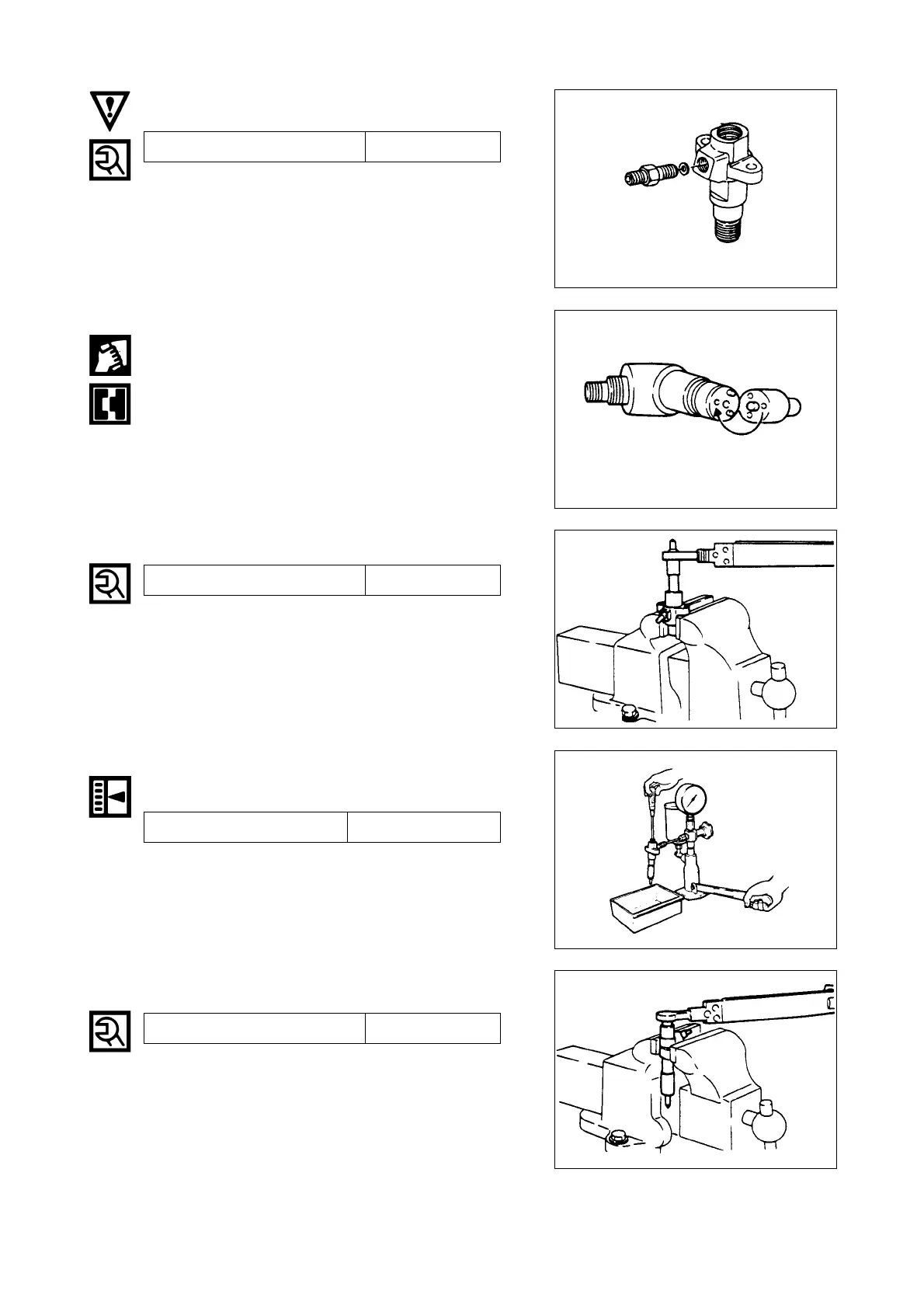

• Injection Nozzle
Clean injection nozzle
Assemble nozzle to be correctly fixed to dowel pin on
nozzle hold body.
• Retaining Nut
• Adjustment of Screw
Adjust with the adjustment screw.
• Nozzle Holder Cap Nut
EJM5009S
EJM5010S
EJM5011S
EJM5012S
EJM5013S
Nozzle Connector Torque 5.5±0.5 kg
•
m
Torque 7±1 kg
•
m
Cap Nut Torque 4.5±0.5 kg•m
Injection Opening Pressure 220 kg/cm
2
