Operation Section
- 43 -

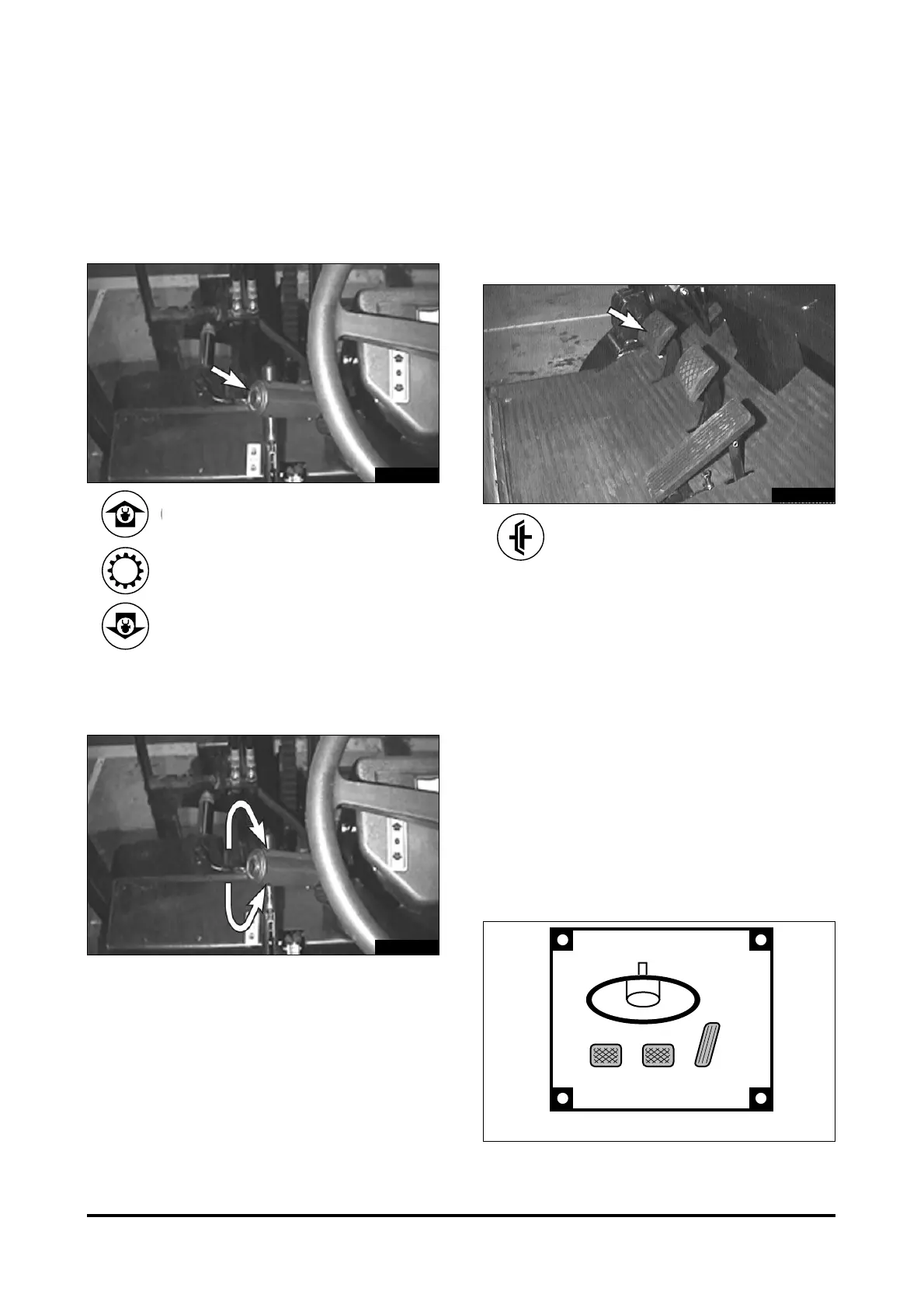

Direction Control Lever
1. Forward - Push the lever forward for
FORWARD direction travel.
2. Neutral - Move the lever to center
position for NEUTRAL.
3. Reverse - Pull the lever back for
REVERSE direction travel.
Transmission Speed Range Lever
1. High - Rotate the lever counterclockwise for
HIGH speed range.
2. Low - Rotate the lever clockwise for LOW
speed range.
Transmission Inching Control
Pedal
Inching Control Pedal - Pushing down
on the inching pedal, modulates the
hydraulic pressure to the clutch packs,
permitting disc slippage.
Further pushing on the pedal completely relieves
clutch pack pressure and applies the service
brakes to stop and hold the lift truck.
NOTE : The purpose of the inching control pedal
is to provide precise inching control at slow travel
speed, with high engine rpm. This is used for fast
hydraulic lift during load approach, pickup or posi-
tioning.
Plate for Function of Pedals
(If Equipped)
It shows the function of each pedals (inching or
clutch, brake and accelerator pedal).
Located on the cowl.
