- 103 -
Maintenance Section

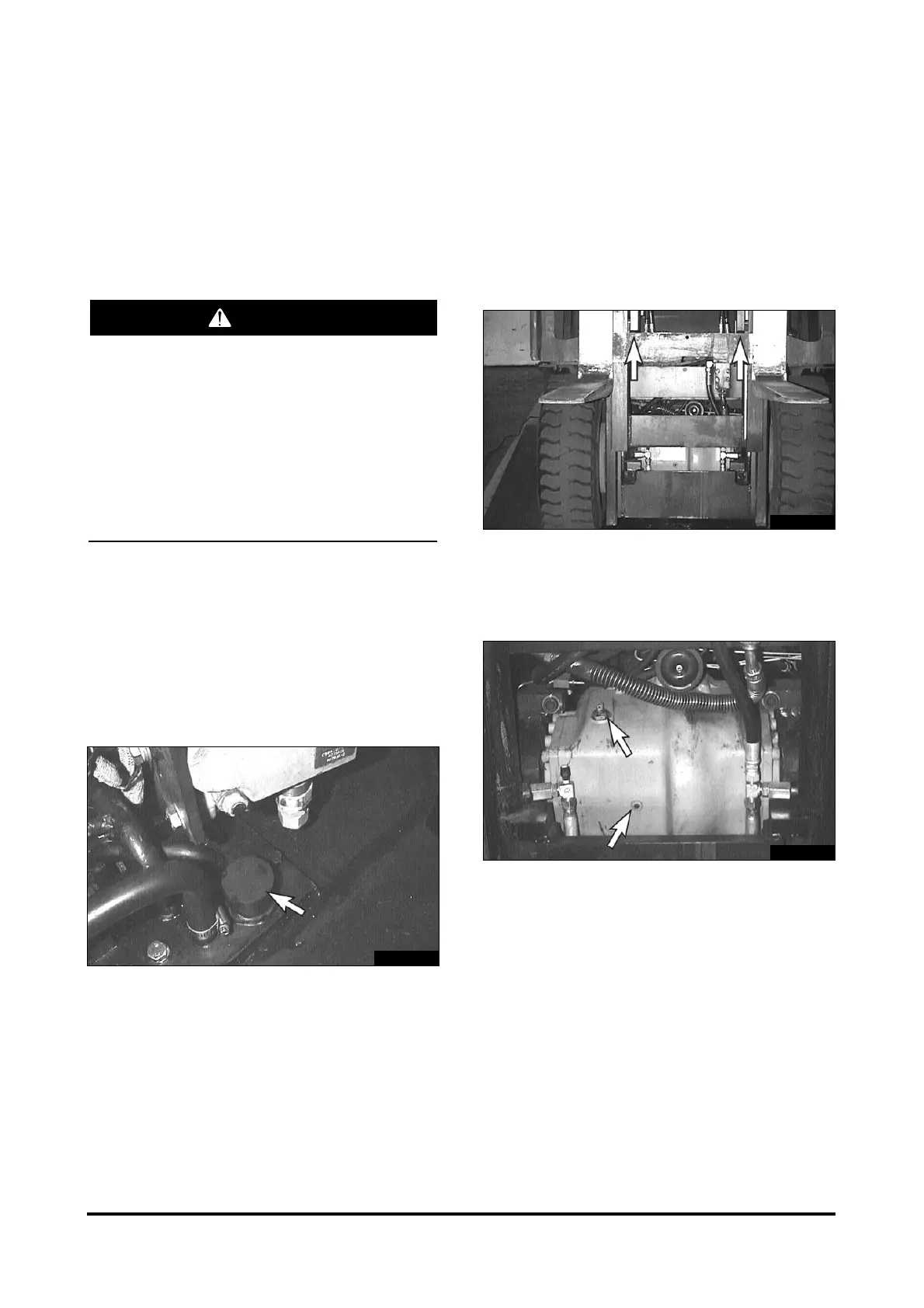

Hydraulic Oil Level - Check
At operating temperature, the hydraulic tank is
hot and under pressure.
Hot oil can cause burns.
Remove the filler cap only when the engine is
stopped, and the cap is cool enough to touch
with your bare hand. Remove the filler cap
slowly to relieve pressure.
1. Operate the lift truck for a few minutes to warm
the oil. Park the lift truck on a level surface, with
the forks lowered, mast tilted back, parking brake
engaged, transmission in NEUTRAL and the
engine stopped.
2. Raise the hood and seat assembly. Make sure
the air lift cylinder securely holds the hood open.
3. Remove the dipstick/ filler cap. Maintain the oil
level to the FULL mark on the breather/dip stick.
Drive Axle Oil Level - Check
1. Lift the carriage high enough to gain access to
the differential housing oil level plug and fill plug.
2. Put blocks under the carriage.
3. Remove the housing oil level plug and fill plug.
Maintain the lubricant level to the bottom of the
plug opening.
4. Clean and install the oil level plug and fill plug.
Every 250 Service Hours or Monthly
You must read and understand the warnings and instructions contained in the Safety section of this manual,
before performing any operation or maintenance procedures.
IA3M4039
IA3M4040
IA3M4032
