- 105 -
Maintenance Section

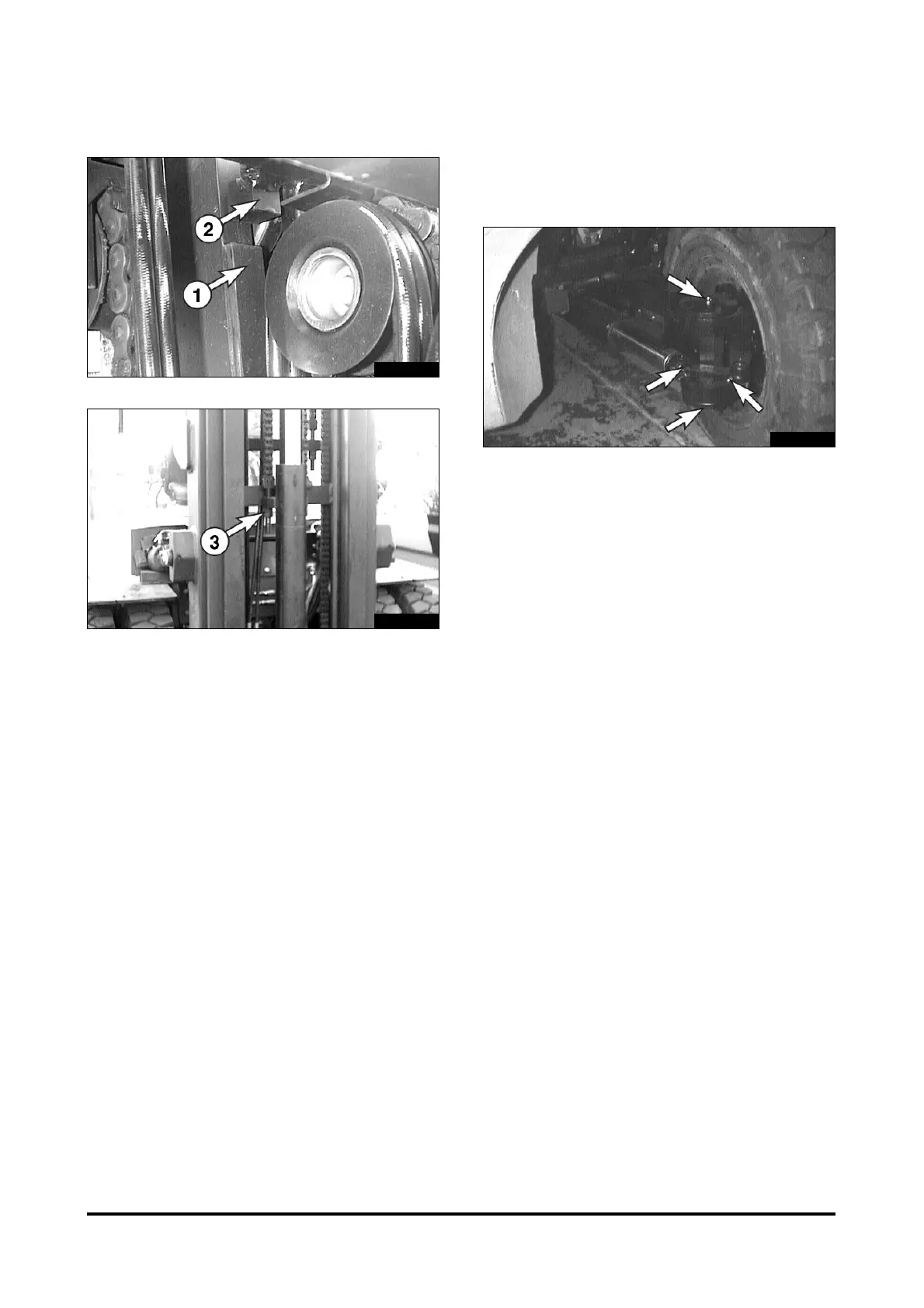

7. In case of Full Free Lift Mast, Extend the prima-
ry cylinder to full length and then check the clear-
ance and over lapped dimension between carriage
stopper bolt or block(1) and Inner mast stopper
block (2). Adjust the chain anchor bolt (3) so that
clearance should be 14
•
2mm.
And adjust the overlapped dimension to be
10
¥
2mm by moving or inserting washer.
Steering Mechanism - Check,
Lubricate
1. Lubricate the steer axle king pins, total of four
fittings. Two on the right side and two on the left
side.
2. Lubricate the steering link bearings, total of four
fittings. Two on the right side and two on the left
side.
3. Check for any worn or loose components of the
steering mechanism. Remove any debris or trash
as required.
IA3M4044
IA3M4045
IA3M4043
To Next Page
