Daewoo D45S-2 - Operating Techniques

- 63 -
Operation Section

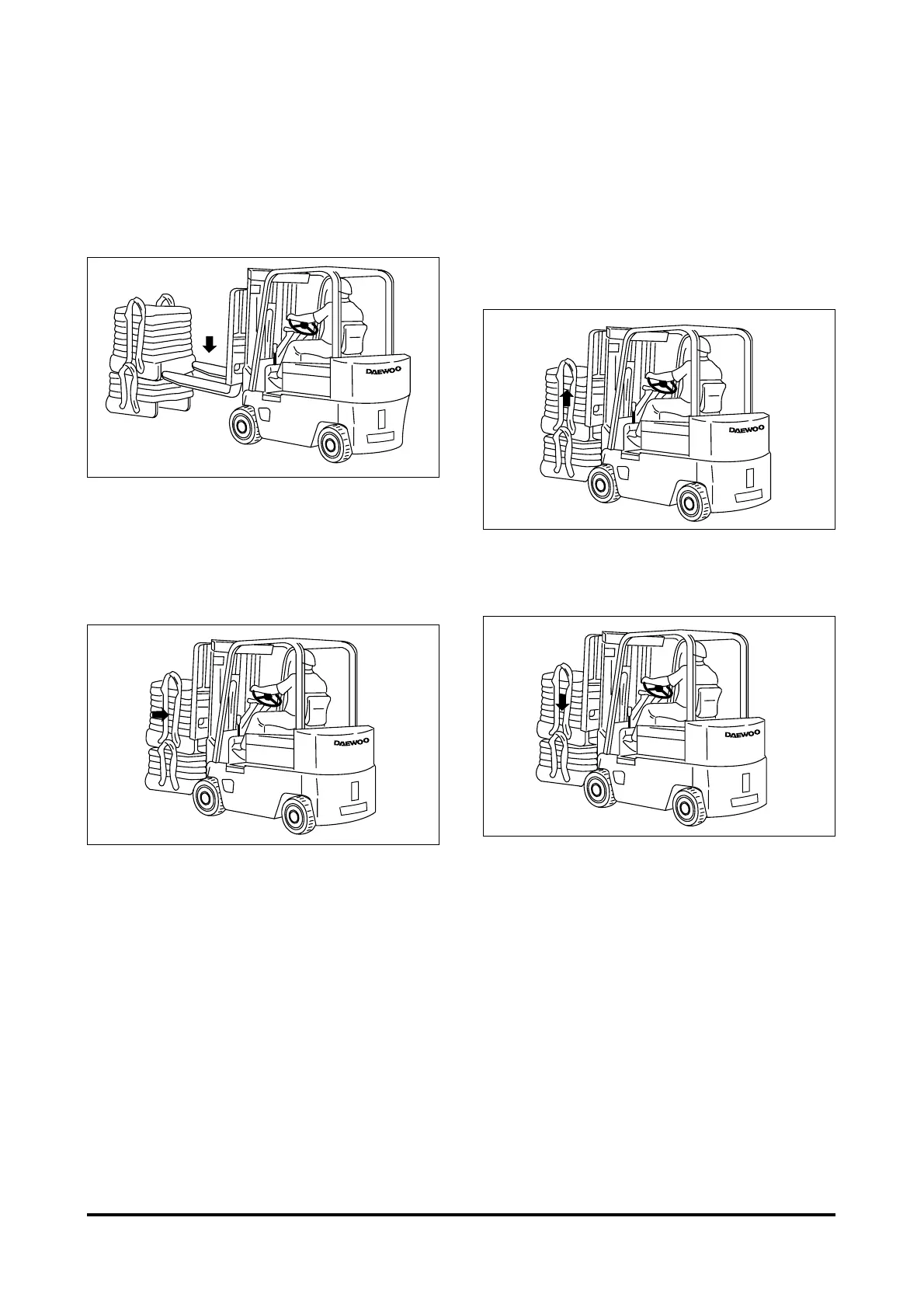

Inching into Loads
Typical Example
1. Move the lift truck slowly FORWARD into posi-
ton and engage the load. The lift truck should be
square with load, forks spaced evenly between
pallet stringers and as far apart as load permits.
Typical Example
2. Move the lift truck FORWARD until the load
touches the carriage.
Lifting the Load
1. Lift the load carefully and tilt the mast back a
short distance.
Typical Example
2. Tilt the mast further back to cradle the load.
Typical Example
3. Operate the lift truck in reverse until the load is
clear of the other material.
4. Lower the cradled load to the travel position.
NOTE : Lift and tilt speeds are controlled by
engine rpm.
IA3M3032
IA3M3033
IA3M3034
IA3M3035
Operating Techniques
