- 110 -
Maintenance Section

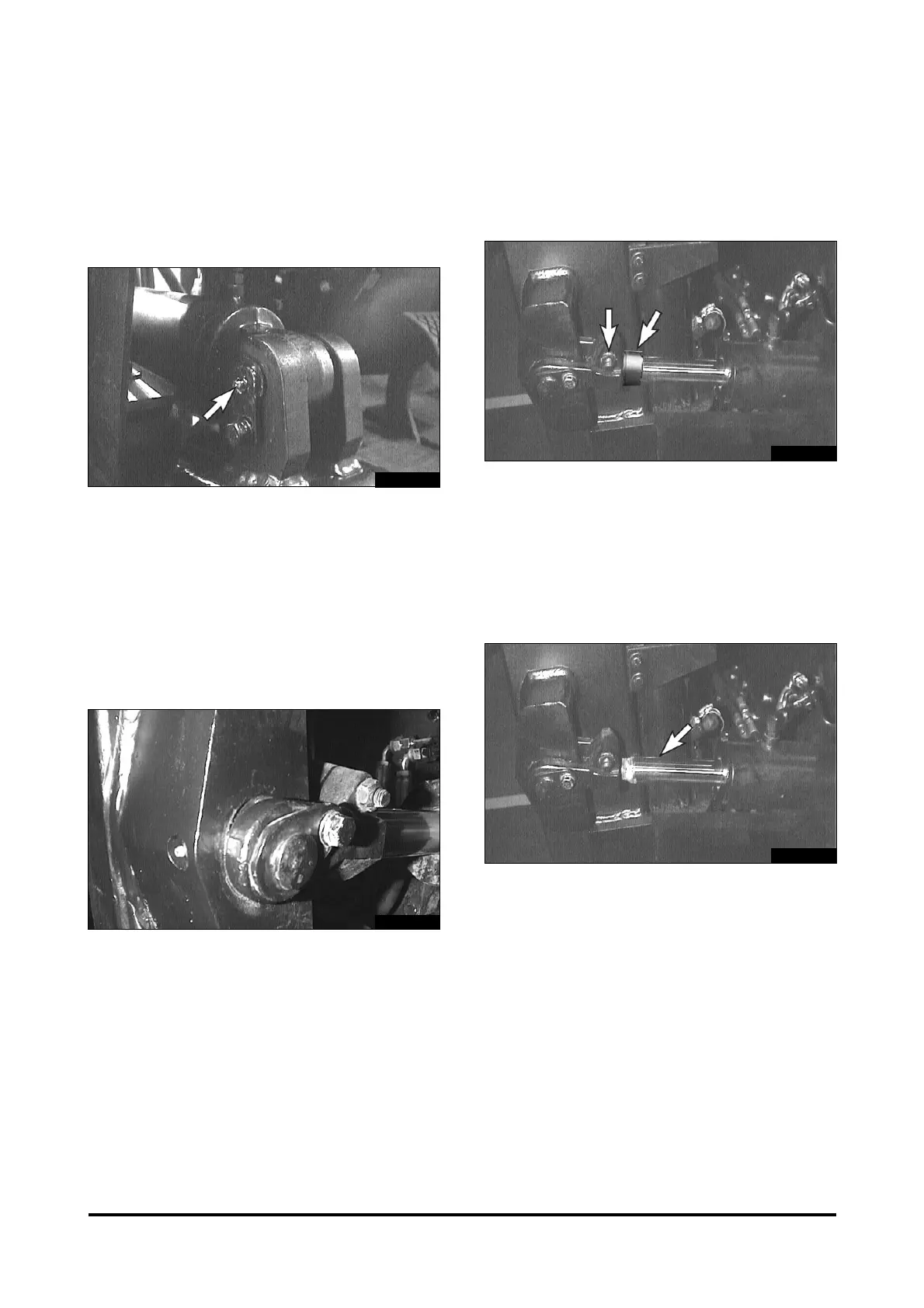

Tilt Cylinders - Check, Adjust,
Lubricate
Chassis Pivot Eyebolts/Lubricate
Typical Example
1. Lubricate two fittings for the pivot eyebolts, one
on each tilt cylinder.
2. Check the pivot eye pins for loose retainer bolts
and wear.
Mast Pivot Eyes-Check/Lubricate
Typical Example
1. Lubricate two fittings for the mast pivot eyes,
one on each side of the mast.
2. Check the pivot eye pins for loose retainer bolts
and wear.
Cylinder Rod Extension - Adjust
NOTE : The following description is for forward tilt.
For cylinder rod back tilt, the collar should be sta
tionary by the tilt eye. If it is not, the O-ring inside
the collar may need to be replaced. To adjust back
tilt, spacers must be added or removed.
Typical Example
1. Check to make sure the tilt cylinders extend and
retract evenly.
2. If one cylinder continues to move after the other
cylinder has stopped in full forward or backward
tilt, an adjustment must be made to one cylinder.
Typical Example
3. To adjust the cylinder rod extension, move the
spacer to the rear and loosen the pinch bolt on the
clevis.
4. Turn the cylinder rod in or out of the clevis to
obtain the proper adjustment. Turning the rod into
the clevis shortens the stroke. Turning the rod out
of the clevis lengthens the stroke. When turning
for extending rod, the overlapped length between
clevisÕs thread and cylinder rod must be minimum
32 mm
5. Tighten the pinch bolts to a torque of 95L15
N
¥
m (70L10 lb ft). Check the cylinder rods again
for even travel.
IA3M4053
IA3M4054
IA3M4102
IA3M4056
To Next Page
