- 65 -
Operation Section

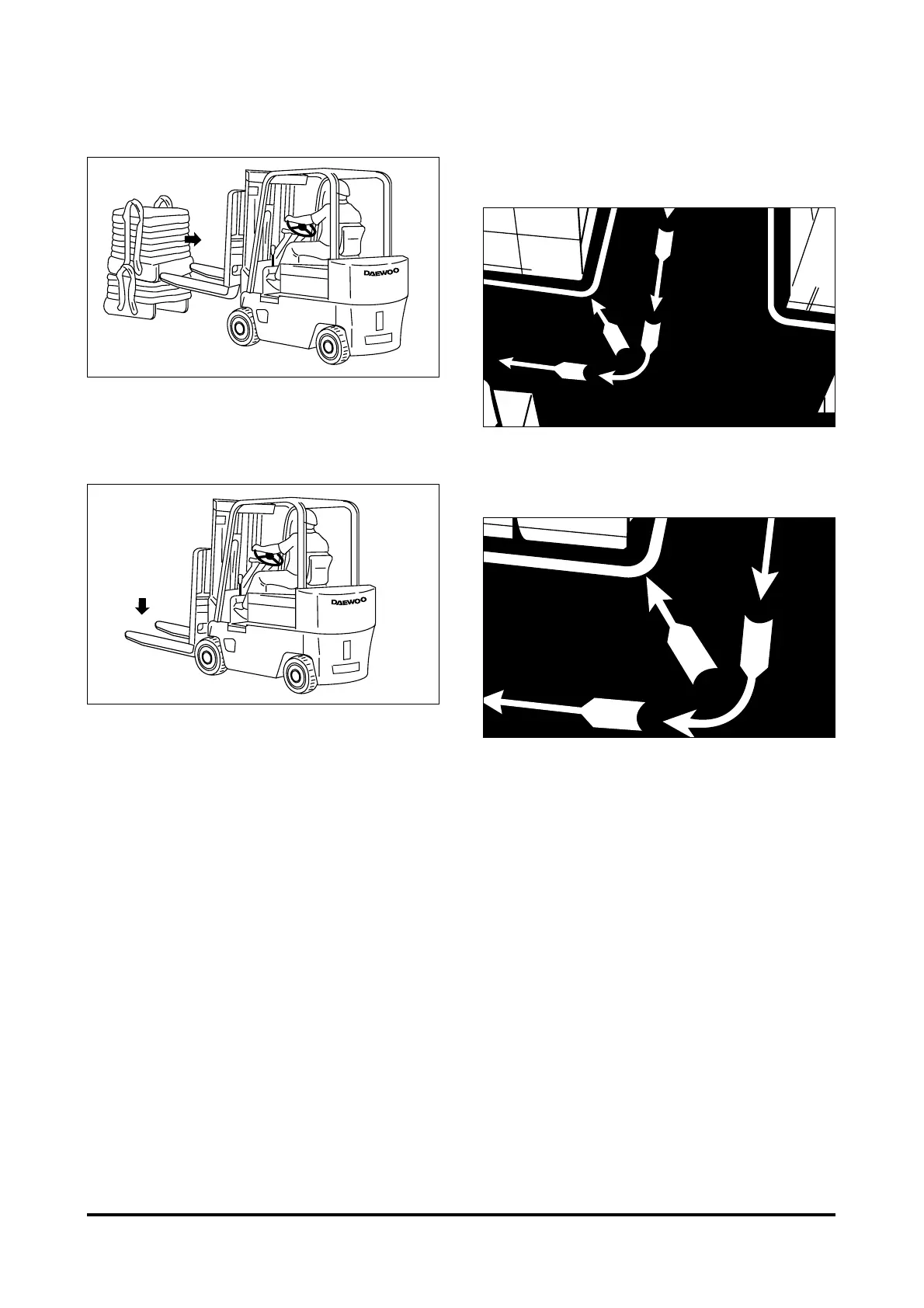

Typical Example
3. Deposit the load and BACK away carefully to
disengage the forks.
Typcial Example
4. Lower the carriage and forks to the travel posi-
tion or to the park position.
Turning
1. When turning sharp corners, keep close to the
inside corner. Begin the turn when the inside drive
wheel meets the corner.
2. In narrow aisles, keep away from the stockpile
when turning into the aisle. Allow for counterweight
swing.
IA3M3038
IA3M3039
IA3M3040
IA3M3041
To Next Page
