- 86 -
Maintenance Section
Typical Example
cal Example

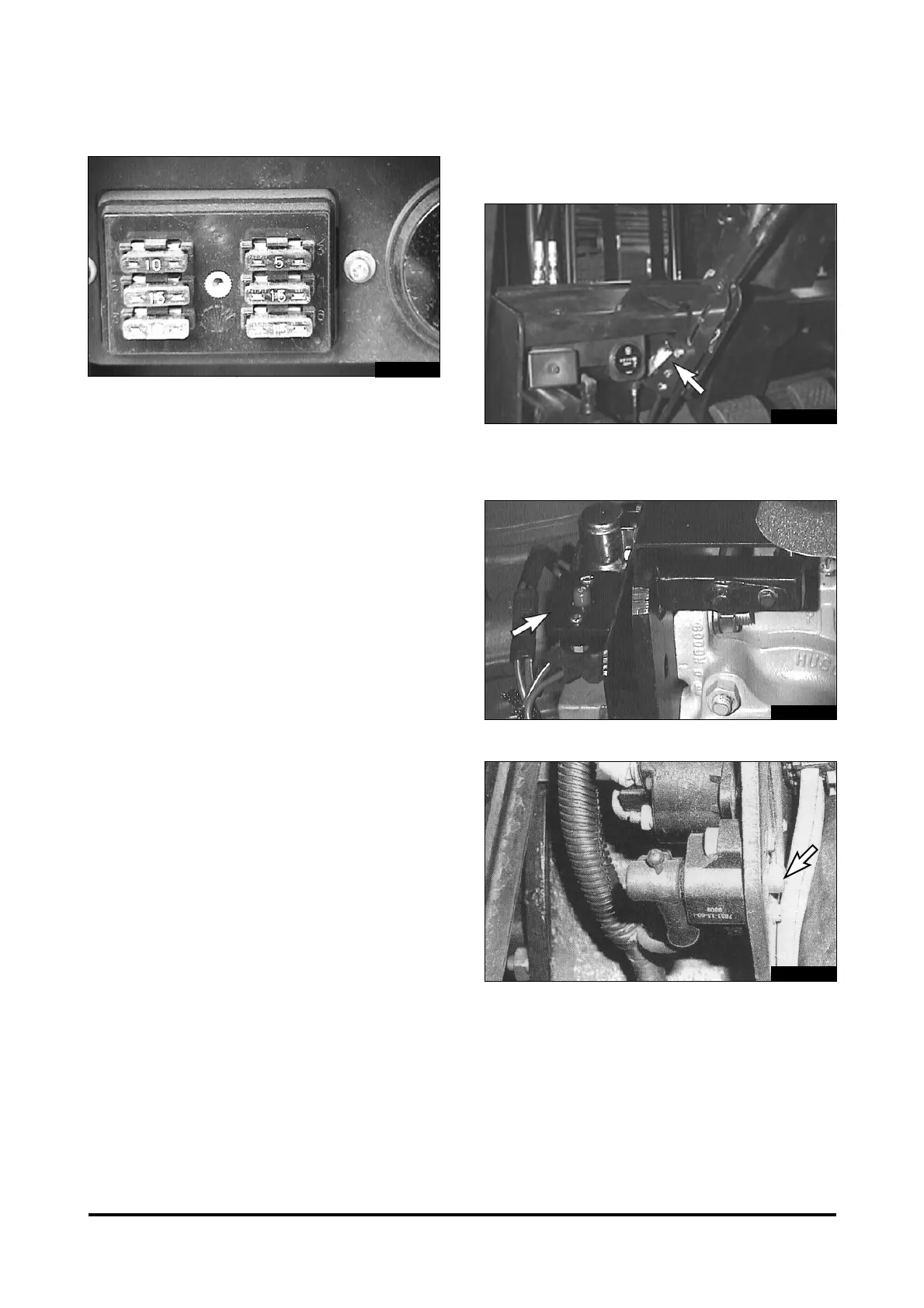

Fuses are identified as follows :
1. Horn - 10 amp.
2. Head/Rear Lamp - 15 amp
3. Fwd./Rev. Solenoid, lamp Relay & Back-up
Lamp/alarm - 10 amp.
4. Instrument Panel & Fuel Shutoff - 15 amp.
5. Turn Signal Lamp, Stop/Strobe Lamp & - 15
amp
6. Start Relay - 5 amp
Bulbs
Bulbs are identifed as follows:
[ Diesel Engine ]
1. Bulb - head lamp halogen (24V - 55W)
*
2. Bulb - back up (24V - 10W)
*
3. Bulb - turn signal (24V - 25W)
*
4. Bulb - stop & tail (24V - 25/10W)
[ Gasoline & LP Gas Engine ]
1. Bulb - head lamp halogen (12V - 35W)
*
2. Bulb - back up (12V - 10W)
*
3. Bulb - turn signal (12V - 23W)
*
4. Bulb - stop & tail (12V - 23/8W)
*
Optional lamp or light
Circuit Breaker
1. Raise the hood and seat assembly. Make sure
the support cylinder securely holds the hood open.
2. The main circuit breaker is located on the rear
of the support for the controls.
NOTE : To reset circuit breakers push in on the
button. The button should stay in if the breaker is
reset. If the button will not stay in, or comes out
shortly after reset, have the circuits checked.
IA3M4005
IA3M4002
IA3M4006
P0001589
Diesel Truck
Gasoline & LPG Truck
