2.4.2. Inside parts
• Main Components (I)
EJM2120S

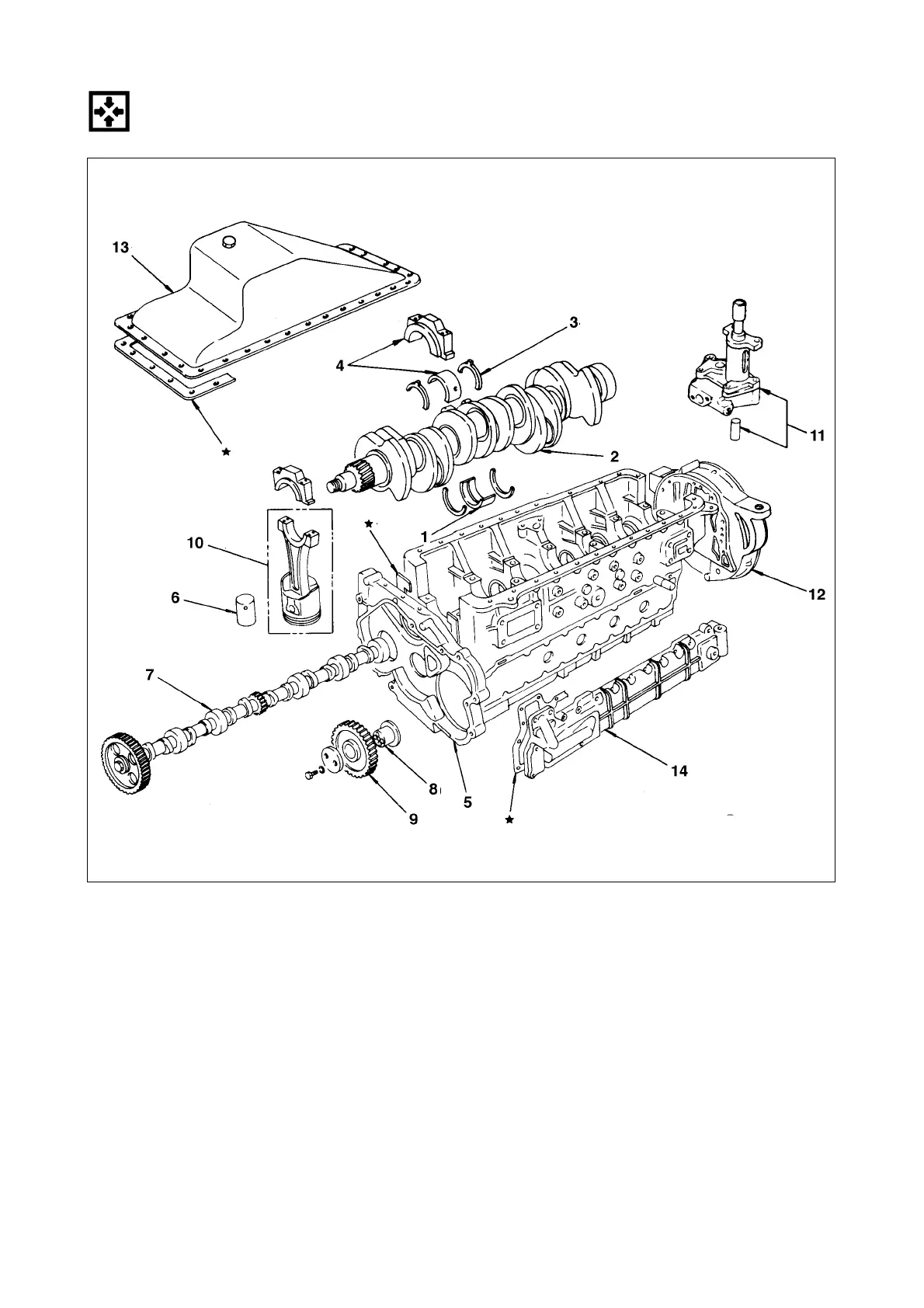

<Order of Assembly>
1. Crank shaft bearing 8. Idler gear shaft
2. Crank shaft 9. Idler gear
3. Thrust bearing 10. Piston and ocnnecting rod
4. Crankshaft bearing and crank shaft bearing cap 11. Oil pump and coupling
5. Timing gear case 12. Flywheel housing
6. Tappet 13. Oil pan
7. Camshaft 14. Oil cooler
8
: Repair Kit
